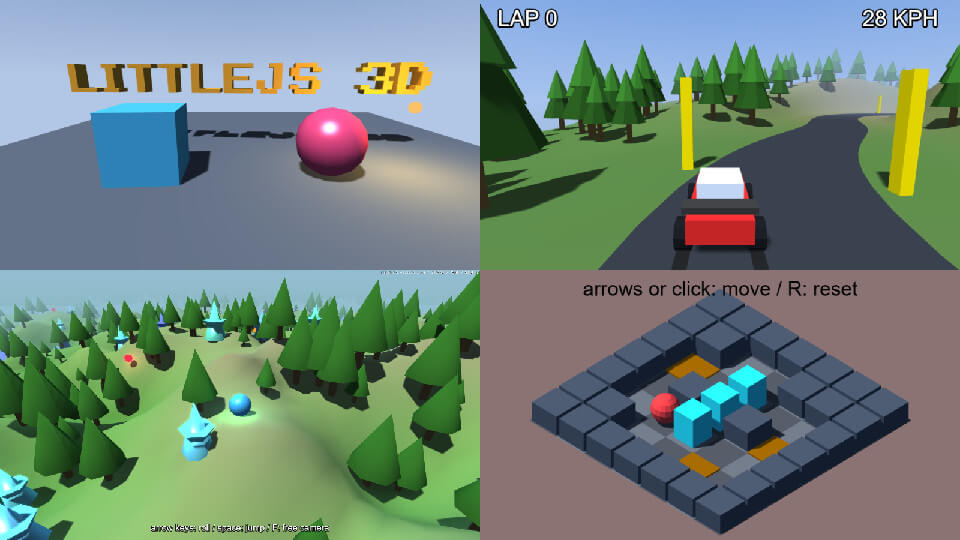

* LittleJS 3D Rendering Plugin
* - Adds a 3D scene that draws into the same WebGL canvas as the 2D game
* - Call new Render3DPlugin() in gameInit, then move render3D.camera and make EngineObject3D objects
* - EngineObject3D is an EngineObject with a 3D position, rotation and mesh
* - The 3D scene draws under the 2D sprites, so HUD and text land on top
* - Lighting is the sun plus ambient, with optional extra lights, fog and shadows
* - Any object or draw can bring its own Shader, a mainImage snippet the lighting then applies to
* - Build shapes with buildBox, buildSphere, buildGrid and buildLathe; the other builders, terrain, particles,
* camera controls and the OBJ loader are in the Render3D Extras plugin, which goes after this one
* - Requires the Math3D plugin
* @namespace Render3D
*/
'use strict';
///////////////////////////////////////////////////////////////////////////////
/** Global Render3D plugin object
* @type {Render3DPlugin}
* @memberof Render3D */
let render3D;
// vertex format: position xyz, normal xyz, uv, rgba bytes
const RENDER3D_VERTEX_FLOATS = 9;
const RENDER3D_VERTEX_BYTES = RENDER3D_VERTEX_FLOATS * 4;
// per draw values the shaders read as vertex attributes: the model matrix columns (4-7), the tint (11) and the
// uv rect (12); constants for one draw, one per instance for a batch; the shader derives the normal matrix
const RENDER3D_INSTANCE_FLOATS = 24;
const RENDER3D_INSTANCE_BYTES = RENDER3D_INSTANCE_FLOATS * 4;
const RENDER3D_INSTANCE_ATTRIBS = [[4, 4, 0], [5, 4, 16], [6, 4, 32], [7, 4, 48], [11, 4, 64], [12, 4, 80]];
const RENDER3D_VERTEX_INPUTS =
'layout(location=0) in vec3 p;layout(location=1) in vec3 n;layout(location=2) in vec2 t;layout(location=3) in vec4 c;' +
'layout(location=4) in vec4 m0;layout(location=5) in vec4 m1;layout(location=6) in vec4 m2;layout(location=7) in vec4 m3;' +
'layout(location=11) in vec4 tint;layout(location=12) in vec4 uvRect;';
const RENDER3D_MAX_STREAM_VERTS = 32768;
const RENDER3D_MAX_LIGHTS = 8; // Light3D objects per frame, the shader loops over this many
// strip order, frozen, and typed as the plain array the uv parameters take
const RENDER3D_QUAD_UVS = /** @type {Array<Vector2>} */
(Object.freeze([vec2(0, 0), vec2(0, 1), vec2(1, 0), vec2(1, 1)].map(uv=> Object.freeze(uv))));
const RENDER3D_FULL_UV_RECT = Object.freeze({x:0, y:0, w:1, h:1});
const RENDER3D_DEFAULT_NORMAL = Object.freeze(vec3(0, 1, 0));
const RENDER3D_DEFAULT_UV = Object.freeze(vec2());
const RENDER3D_SHADOW_COLOR = Object.freeze(hsl(0, 0, 0, .5));
const RENDER3D_IDENTITY = new Matrix4; // never modified
let render3DShadowCut; // the cut last sent to the shadow shader, see render3DSetDrawUniforms
///////////////////////////////////////////////////////////////////////////////
// Private helpers
// outward normal of a triangle or a quad given its corners in loop order,
// from the diagonals so a collapsed corner still works
function render3DFaceNormal(a, b, c, d=a)
{
const n = c.subtract(a).cross(d.subtract(b));
return n.lengthSquared() ? n.normalize() : RENDER3D_DEFAULT_NORMAL;
}
// a quad's corners in loop order as a strip, the one place that knows the order
function render3DQuadStrip(a, b, c, d) { return [a, b, d, c]; }
// per corner values (colors, uvs) into strip order, a single value passes through
function render3DQuadValues(v) { return isArray(v) ? render3DQuadStrip(...v) : v; }
// 3D draws are only valid during the pass with a live shader
function render3DCanDraw()
{
if (!render3D.program) return false;
ASSERT(render3D.isRendering,
'3D draws are only valid during the 3D pass, draw from an EngineObject3D or render3D.onRenderOpaque');
return render3D.isRendering;
}
// the draw state fields a batch is drawn under; lights and fog are not captured, they are read live at flush
// the three functions below write them out by hand for speed, so a new field goes in all four; emissiveMapColor is
// compared by its values, so two objects with equal colors batch
const RENDER3D_STATE_FIELDS = ['blend', 'additive', 'depthTest', 'depthWrite', 'cullBackFaces', 'mirrored', 'lighting',
'emissive', 'receiveShadow', 'specular', 'pixelated', 'shader', 'normalMap', 'normalScale', 'shininess',
'reflectivity', 'emissiveMap', 'emissiveMapColor'];
// a copy of the draw state in one fixed shape, the fields of RENDER3D_STATE_FIELDS written out so the
// compare below stays a handful of direct reads, it runs for every instance drawn
function render3DCaptureBatchState()
{
const r = render3D;
return {blend: r.blend, additive: r.additive, depthTest: r.depthTest, depthWrite: r.depthWrite,
cullBackFaces: r.cullBackFaces, mirrored: r.mirrored, lighting: r.lighting, emissive: r.emissive,
receiveShadow: r.receiveShadow, specular: r.specular, pixelated: r.pixelated, shader: r.shader,
normalMap: r.normalMap, normalScale: r.normalScale, shininess: r.shininess, reflectivity: r.reflectivity,
emissiveMap: r.emissiveMap, emissiveMapColor: (r.emissiveMapColor || WHITE).copy()}; // the caller may change it
}
// put a captured draw state back, written out the same way; the transparent stage does this for every queued draw
function render3DApplyBatchState(s)
{
const r = render3D;
r.blend = s.blend, r.additive = s.additive, r.depthTest = s.depthTest, r.depthWrite = s.depthWrite,
r.cullBackFaces = s.cullBackFaces, r.mirrored = s.mirrored, r.lighting = s.lighting, r.emissive = s.emissive,
r.receiveShadow = s.receiveShadow, r.specular = s.specular, r.pixelated = s.pixelated, r.shader = s.shader,
r.normalMap = s.normalMap, r.normalScale = s.normalScale, r.shininess = s.shininess,
r.reflectivity = s.reflectivity, r.emissiveMap = s.emissiveMap, r.emissiveMapColor = s.emissiveMapColor;
}
// true when the current draw state differs from a captured one, so a pending batch must flush first
function render3DStateChanged(s)
{
const r = render3D;
return r.blend !== s.blend || r.additive !== s.additive || r.depthTest !== s.depthTest
|| r.depthWrite !== s.depthWrite || r.cullBackFaces !== s.cullBackFaces || r.mirrored !== s.mirrored
|| r.lighting !== s.lighting || r.emissive !== s.emissive || r.receiveShadow !== s.receiveShadow
|| r.specular !== s.specular || r.pixelated !== s.pixelated || r.shader !== s.shader
|| r.normalMap !== s.normalMap || r.normalScale !== s.normalScale || r.shininess !== s.shininess
|| r.reflectivity !== s.reflectivity || r.emissiveMap !== s.emissiveMap
|| render3DColorChanged(r.emissiveMapColor || WHITE, s.emissiveMapColor);
}
// whether two colors differ in their rgb, for the batch key's emissiveMapColor
function render3DColorChanged(a, b) { return a.r !== b.r || a.g !== b.g || a.b !== b.b;
}
// whether a sphere is inside the view, or the shadow map's box during the shadow pass, without a vector
function render3DSphereVisible(x, y, z, radius)
{
const planes = render3D.shadowPass && !render3D.depthPass ? render3D.shadowPlanes : render3D.frustumPlanes;
for (let i = 0; i < planes.length; ++i)
{
const p = planes[i];
if (p[0]*x + p[1]*y + p[2]*z + p[3] < -radius)
return false;
}
return true;
}
// run a function with some draw state fields overridden, restored afterward even on a throw
function render3DWithState(fields, fn)
{
const r = render3D, saved = {};
for (const key in fields)
saved[key] = r[key], r[key] = fields[key];
try { return fn(); }
finally { Object.assign(r, saved); }
}
// which side of the 2D scene an object draws on, its own flag or the plugin default
function render3DIsAfter2D(o) { return !!(o.renderAfter2D ?? render3D.renderAfter2D); }
// a size given as a number or a vec3
/** @param {Vector3|number} size
* @return {Vector3} */
function render3DSize3(size)
{ return isNumber(size) ? vec3(/** @type {number} */ (size)) : /** @type {Vector3} */ (size); }
// a size given as a number or a vec2
/** @param {Vector2|number} size
* @return {Vector2} */
function render3DSize2(size)
{ return isNumber(size) ? vec2(/** @type {number} */ (size)) : /** @type {Vector2} */ (size); }
// a transform given as a matrix, or as a vec3 for one that only moves there
/** @param {Matrix4|Vector3} matrix
* @return {Matrix4} */
function render3DMatrix(matrix)
{
if (matrix instanceof Vector3)
return buildMatrix(matrix);
ASSERT(matrix instanceof Matrix4, 'takes a Matrix4, or a Vector3 for a position');
return matrix;
}
// the matrix that keeps normals pointing out when an object is scaled unevenly
function render3DNormalMatrix(matrix) { return matrix.copy().invert().transpose(); }
// whether a matrix mirrors, its determinant negative, so what it moves reads the other way round
function render3DMirrors(matrix) { return matrix.determinant() < 0; }
// a column of a matrix as a direction: 0 is the right axis, 4 up, 8 back
function render3DAxis(m, i) { return vec3(m[i], m[i+1], m[i+2]); }
// a matrix turning by angle around a unit axis through the origin, counter clockwise when the axis points at you
function render3DAxisRotation(axis, angle)
{
const x = vec3(1, 0, 0).rotate(axis, angle), y = vec3(0, 1, 0).rotate(axis, angle), z = vec3(0, 0, 1).rotate(axis, angle);
return new Matrix4([x.x, x.y, x.z, 0, y.x, y.y, y.z, 0, z.x, z.y, z.z, 0, 0, 0, 0, 1]);
}
// the largest axis scale of a matrix, how much it grows a bounding sphere
function render3DMaxScale(m)
{
return max(m[0]*m[0] + m[1]*m[1] + m[2]*m[2], m[4]*m[4] + m[5]*m[5] + m[6]*m[6], m[8]*m[8] + m[9]*m[9] + m[10]*m[10]) ** .5;
}
// how far a matrix at offset k can move a point that is one unit from its origin, for a bounding sphere: the
// longest axis when the axes are square to each other, more when they are not, as a turned child under a parent
// scaled on one axis leaves them; the axes' dot products bound the largest stretch by their largest row sum
function render3DMaxStretch(m, k=0)
{
const xx = m[k]*m[k] + m[k+1]*m[k+1] + m[k+2]*m[k+2];
const yy = m[k+4]*m[k+4] + m[k+5]*m[k+5] + m[k+6]*m[k+6];
const zz = m[k+8]*m[k+8] + m[k+9]*m[k+9] + m[k+10]*m[k+10];
const xy = abs(m[k]*m[k+4] + m[k+1]*m[k+5] + m[k+2]*m[k+6]);
const xz = abs(m[k]*m[k+8] + m[k+1]*m[k+9] + m[k+2]*m[k+10]);
const yz = abs(m[k+4]*m[k+8] + m[k+5]*m[k+9] + m[k+6]*m[k+10]);
return max(xx + xy + xz, yy + xy + yz, zz + xz + yz) ** .5;
}
// a quad as a strip from its center and half axes, the same corner order as render3DQuadStrip
function render3DQuadAxes(center, right, up)
{
return [center.subtract(right).add(up), center.subtract(right).subtract(up),
center.add(right).add(up), center.add(right).subtract(up)];
}
// set the draw state for an object's render3D, or the defaults for the stage callbacks
function render3DSetObjectState(o)
{
const r = render3D;
const emissive = o?.emissive || 0;
ASSERT(isNumber(emissive) && emissive >= 0, 'emissive must be a number, 0 or more', emissive);
r.lighting = true;
r.emissive = emissive;
r.additive = !!o?.additive;
r.specular = o?.specular || 0;
const shininess = o?.shininess ?? 16, reflectivity = o?.reflectivity || 0;
ASSERT(isNumber(shininess) && shininess > 0, 'shininess must be a number above 0', shininess);
ASSERT(isNumber(reflectivity) && reflectivity >= 0 && reflectivity <= 1, 'reflectivity must be 0 to 1', reflectivity);
r.shininess = shininess;
r.reflectivity = reflectivity;
r.normalMap = o?.normalMap || undefined;
r.normalScale = o?.normalScale ?? 1;
r.emissiveMap = o?.emissiveMap || undefined;
r.emissiveMapColor = o?.emissiveMapColor || WHITE;
r.receiveShadow = !o || o.receiveShadow;
r.cullBackFaces = r.mirrored = false; // each mesh sets these as it draws
r.pixelated = !!o?.pixelated;
ASSERT(!o?.shader || o.shader instanceof Shader, 'shader must be a Shader, not the snippet itself');
r.shader = o?.shader || undefined; // null is no shader too, so it batches with none
r.depthTest = true;
if (r.shadowPass)
r.blend = !!o?.transparent; // the depth shader cuts a see through caster by the alpha it would blend with
}
// draw objects each with the draw state set from its own flags, then reset to the defaults
function render3DDrawObjects(objects)
{
for (const o of objects)
{
render3DSetObjectState(o);
o.render3D();
}
render3DSetObjectState();
}
// add a draw of a mesh to its batch; a batch is one mesh under one texture and draw state, so a change flushes it
function render3DInstance(mesh, matrix, tileInfo, color)
{
const k = render3DInstanceSlot(mesh, render3DTextureOf(tileInfo)), data = mesh.instanceData;
data.set(matrix.m, k);
// the tint; this batch is never blended, so in the shadow pass the depth shader cuts it by its texture alpha
// alone, a see through caster draws blended instead and is cut by its tint alpha too
data[k+16] = color.r, data[k+17] = color.g, data[k+18] = color.b, data[k+19] = color.a;
const uv = render3DGetTileUVs(tileInfo);
data[k+20] = uv.x; data[k+21] = uv.y; data[k+22] = uv.w; data[k+23] = uv.h;
}
// make room for one more instance of a mesh under a texture and the current draw state, flushing a batch that
// differs first, and return where its 24 floats go in mesh.instanceData: the matrix, the tint and the uv rect
function render3DInstanceSlot(mesh, textureInfo)
{
const r = render3D;
if (mesh.instanceCount && (mesh.instanceTextureInfo !== textureInfo || render3DStateChanged(mesh.instanceState)))
render3DFlushInstances(mesh);
if (!mesh.instanceCount)
{
mesh.instanceTextureInfo = textureInfo;
mesh.instanceState = render3DCaptureBatchState();
r.instanceMeshes.push(mesh);
}
// room for one more, doubling as the batch grows
const data = mesh.instanceData, k = mesh.instanceCount++ * RENDER3D_INSTANCE_FLOATS;
if (!data || data.length < k + RENDER3D_INSTANCE_FLOATS)
{
const grown = new Float32Array(max(64 * RENDER3D_INSTANCE_FLOATS, data ? data.length * 2 : 0));
data && grown.set(data);
mesh.instanceData = grown;
}
return k;
}
// draw the pending batches, or just one mesh's, each as a single instanced call
function render3DFlushInstances(only)
{
const r = render3D, gl = glContext;
for (const mesh of only ? [only] : r.instanceMeshes)
{
const count = mesh.instanceCount;
mesh.instanceCount = 0;
if (!count || !mesh.buffer) continue;
// the per instance values on top of the constant attributes, then the mesh under them
// a ring of buffers with fresh storage each time, so the driver never waits for a draw still reading one
const buffers = r.instanceBuffers, buffer = buffers[r.instanceBufferIndex = (r.instanceBufferIndex + 1) % buffers.length];
gl.bindBuffer(gl.ARRAY_BUFFER, buffer);
gl.bufferData(gl.ARRAY_BUFFER, mesh.instanceData, gl.DYNAMIC_DRAW, 0, count * RENDER3D_INSTANCE_FLOATS);
render3DDrawInstanced(mesh, buffer, count, mesh.instanceTextureInfo, mesh.instanceState);
}
if (!only)
r.instanceMeshes.length = 0;
else
{
const i = r.instanceMeshes.indexOf(only);
i < 0 || r.instanceMeshes.splice(i, 1);
}
}
// draw a mesh count times from a buffer that holds the per instance values, under a draw state
// the arrays are turned on with their instance divisor for this one call and both are turned off after: a single
// draw reads these slots as constant attributes, and in Firefox a draw that reads a constant through a slot whose
// divisor is set leaves the next batch on that slot reading the wrong values
function render3DDrawInstanced(mesh, buffer, count, textureInfo, state)
{
const gl = glContext;
gl.bindBuffer(gl.ARRAY_BUFFER, buffer);
for (const [location, size, offset] of RENDER3D_INSTANCE_ATTRIBS)
{
gl.vertexAttribPointer(location, size, gl.FLOAT, false, RENDER3D_INSTANCE_BYTES, offset);
gl.enableVertexAttribArray(location);
gl.vertexAttribDivisor(location, 1);
}
render3DSetDrawUniforms(RENDER3D_IDENTITY, textureInfo, WHITE, RENDER3D_FULL_UV_RECT, state);
render3DBindMesh(mesh);
gl.drawElementsInstanced(gl.TRIANGLES, mesh.bufferCount, mesh.indexType, 0, count);
for (const [location] of RENDER3D_INSTANCE_ATTRIBS)
{
gl.disableVertexAttribArray(location);
gl.vertexAttribDivisor(location, 0);
}
++drawCount;
primitiveCount += mesh.bufferCount / 3 * count;
}
// forget the pending batches, for a frame that threw or a lost context
function render3DClearInstances()
{
for (const mesh of render3D.instanceMeshes)
mesh.instanceCount = 0;
render3D.instanceMeshes.length = 0;
}
// the live objects drawn on one side of the 2D scene
function render3DLayerObjects(after2D)
{
return /** @type {Array<EngineObject3D>} */ (engineObjects.filter(o=>
!o.destroyed && o instanceof EngineObject3D && render3DIsAfter2D(o) === after2D));
}
// the Light3D objects the shader gets this frame: directional lights light the whole scene so they come first,
// then the point lights nearest the camera
function render3DCollectLights()
{
// a light switched off by its radius or its alpha is left out, so it cannot take one of the few slots
const lights = /** @type {Array<Light3D>} */ (engineObjects.filter(o=> !o.destroyed && o instanceof Light3D &&
o.color.a > 0 && o.intensity > 0 && (o.directional || o.radius > 0)));
if (lights.length > RENDER3D_MAX_LIGHTS)
{
// distances cached once, getWorldPos3D walks the parent chain and the sort asks many times
const cameraPos = render3D.camera.pos, distances = new Map;
for (const light of lights)
distances.set(light, light.directional ? -1 : light.getWorldPos3D().distanceSquared(cameraPos));
lights.sort((a, b)=> distances.get(a) - distances.get(b));
lights.length = RENDER3D_MAX_LIGHTS;
}
return lights;
}
// unit circle directions for a number of sides, [cos, sin, cos, sin, ...] including the closing point, cached
const render3DCircleCache = new Map;
function render3DCircle(sides)
{
sides |= 0;
let circle = render3DCircleCache.get(sides);
if (!circle)
{
circle = new Float32Array(sides * 2 + 2);
for (let i = 0; i <= sides; ++i)
{
const a = i / sides * 2 * PI;
circle[i*2] = cos(a), circle[i*2 + 1] = sin(a);
}
render3DCircleCache.set(sides, circle);
}
return circle;
}
// the rotation that points -Z along a direction, as vec3(pitch, yaw, 0); a zero direction keeps the current one
function render3DLookRotation(direction, current)
{
const d = direction.normalize();
if (!d.lengthSquared()) return current;
if (abs(d.x) + abs(d.z) < 1e-9) // straight up or down has no yaw of its own
return vec3(d.y > 0 ? PI / 2 : -PI / 2, current.y, 0);
return vec3(Math.asin(clamp(d.y, -1, 1)), atan2(-d.x, -d.z), 0);
}
///////////////////////////////////////////////////////////////////////////////
/**
* Render3D Plugin - The 3D renderer, camera, lights, shadows and fog
* - There is one of these, in the global render3D
* - It draws the 3D scene before gameRender, so 2D drawing lands on top
* - Set renderAfter2D to draw the 3D scene over the 2D scene instead
* - Settings like lighting and specular are read as each thing draws
* - Every object sets them from its own flags, so you rarely touch them
* @memberof Render3D
* @example
* new Render3DPlugin;
* render3D.camera.pos = vec3(0, 5, 10);
* render3D.camera.lookAt(vec3());
* new EngineObject3D(vec3(), buildBox());
*/
class Render3DPlugin
{
/** Create the global 3D renderer, call in gameInit */
constructor()
{
ASSERT(!render3D, 'Render3D plugin already initialized');
render3D = this;
ASSERT(Object.keys(render3DCaptureBatchState()).join() === RENDER3D_STATE_FIELDS.join(),
'the batch state functions must list RENDER3D_STATE_FIELDS');
/** @property {Camera3D} - The camera */
this.camera = new Camera3D;
// lights and fog
/** @property {Vector3} - Direction toward the sun, where its light comes from, like a directional Light3D;
* read at each draw, and any length will do, the shading and the shadows normalize it themselves;
* the sun is the one light that casts shadows */
this.sunDirection = vec3(-.3, 1, .5);
/** @property {Color} - Sunlight color */
this.sunColor = WHITE.copy();
/** @property {Color} - Ambient light color, from above when ambientGroundColor is set */
this.ambientColor = hsl(0, 0, .3);
/** @property {Color|undefined} - Ambient light from below: set, the ambient blends from this on faces pointing
* down to ambientColor on faces pointing up, the way a sky and a ground light a scene; setSky sets both from
* its colors
* @type {Color|undefined} */
this.ambientGroundColor = undefined;
/** @property {Color|undefined} - Fog color, uses canvasClearColor when undefined
* @type {Color|undefined} */
this.fogColor = undefined;
/** @property {number} - Distance from the camera where fog starts */
this.fogStart = 0;
/** @property {number} - Distance from the camera where fog is total, 0 disables fog */
this.fogEnd = 0;
/** @property {Vector3} - Added to the velocity3D of every object with a mass each frame, scaled by its
* gravityScale; sync2D objects use the 2D gravity */
this.gravity = vec3();
/** @property {number|HeightMap|function(number, number): number} - Floor for objects with a softShadow: a
* height, a HeightMap, or (x, z) => y
* @type {number|HeightMap|function(number, number): number} */
this.softShadowHeight = 0;
/** @property {boolean} - Default for every builder's smooth argument: true for smooth vertex normals, false for
* flat faces */
this.smoothShading = false;
/** @property {boolean} - Draw the camera's depth into a texture each frame for post processing:
* PostProcessPlugin hands it to its shader as iChannel2, read with sceneDepth(uv); off by default and free
* when off, on it draws the solid objects of the default layer once more, depth only */
this.depthTexture = false;
// shadows
/** @property {boolean} - Cast real shadows from the sun, off by default and free when off */
this.shadows = false;
/** @property {number} - Size of the shadow map in pixels, bigger is sharper and slower */
this.shadowMapSize = 1024;
/** @property {number} - World size the shadow map covers around shadowCenter, smaller is sharper; it is a
* square facing the light, so it turns as the light does, and about 1.5 times an area's width covers it from
* any angle */
this.shadowRange = 40;
/** @property {Vector3|undefined} - Center of the shadowed area, read each frame, undefined follows the camera
* @type {Vector3|undefined} */
this.shadowCenter = undefined;
/** @property {number} - Stops surfaces shadowing themselves, raise for speckles, lower if shadows drift off */
this.shadowBias = .003;
/** @property {number} - How much to blur the shadow edges */
this.shadowSoftness = 1;
// draw state, read at each draw
/** @property {boolean} - Apply lighting, when false draws plain vertex color times texture and casts no shadow;
* off for billboards, lines, ribbons and soft discs, an object sets emissive instead */
this.lighting = true;
/** @property {number} - How much a surface lights itself, set per object by its emissive */
this.emissive = 0;
/** @property {boolean} - Additive blending instead of alpha, in the transparent stage */
this.additive = false;
/** @property {boolean} - Test against the depth buffer, reset to true before each object and callback; a draw
* with it off goes over what was drawn before it and under what is drawn after, by render order, which
* ends the batch of meshes before it, so one per object costs a draw per object */
this.depthTest = true;
/** @property {boolean} - Write to the depth buffer, owned by the stages: on for opaque, off for transparent */
this.depthWrite = true;
// batch state set by drawMesh from each mesh: whether its back faces are skipped, off for strips so they
// show from both sides, and whether its transform mirrors it so the other winding is the front
this.cullBackFaces = false;
this.mirrored = false;
/** @property {number} - Strength of the highlight where the sun and the Light3D objects reflect, 0 is none and
* 1 adds a light's full color at its brightest; shininess sets its size */
this.specular = 0;
/** @property {number} - The highlight's exponent, how small and sharp it is: 4 is broad like rubber, 100 sharp
* like polished metal; set from each object's shininess */
this.shininess = 16;
/** @property {TextureInfo|undefined} - Normal map for the next draws, set from each object's normalMap
* @type {TextureInfo|undefined} */
this.normalMap = undefined;
/** @property {number} - How strongly the normal map bends the surface, set from each object's normalScale */
this.normalScale = 1;
/** @property {number} - How much the surface reflects the sky, 0 to 1, set from each object's reflectivity */
this.reflectivity = 0;
/** @property {TextureInfo|undefined} - Emissive map for the next draws, set from each object's emissiveMap
* @type {TextureInfo|undefined} */
this.emissiveMap = undefined;
/** @property {Color} - Multiplies the emissive map, set from each object's emissiveMapColor */
this.emissiveMapColor = WHITE;
/** @property {Shader|undefined} - Custom Shader for the next draws, set from each object's shader; undefined
* draws with the plugin's own
* @type {Shader|undefined} */
this.shader = undefined;
/** @property {boolean} - Darken by the shadow map when shadows are on, turn it off for things that should stay
* lit inside a shadow */
this.receiveShadow = true;
// the pass
/** @property {Function|undefined} - Draw solid world here, it runs again for shadows so only draw in it
* @type {Function|undefined} */
this.onRenderOpaque = undefined;
/** @property {Function|undefined} - Draw see through things here, like glows, billboards and soft shadows
* @type {Function|undefined} */
this.onRenderTransparent = undefined;
/** @property {Mesh|undefined} - Sky dome from buildSky or setSky, drawn around the camera behind everything
* @type {Mesh|undefined} */
this.sky = undefined;
/** @property {boolean} - Draw the 3D scene on top of the 2D scene instead of under it */
this.renderAfter2D = false;
/** @property {boolean} - Draw see through things far to near so they blend correctly */
this.sortTransparent = true;
/** @property {boolean} - Skip meshes whose bounding sphere is outside the view */
this.frustumCulling = true;
/** @property {boolean} - Draw every use of a mesh in the opaque stage as one instanced call, mesh.instanced
* overrides it per mesh */
this.instancing = true;
/** @property {boolean} - Sample textures through mipmaps so they do not shimmer in the distance, false uses
* each texture's own filtering like 2D */
this.mipmaps = true;
/** @property {boolean} - Draw state: keep texture pixels hard edged, no mipmaps and no blending between them,
* set per object by pixelated */
this.pixelated = false;
/** @property {number} - Anisotropic filtering for textures seen at an angle, 1 to 16, 1 is off; needs mipmaps */
this.anisotropy = 4;
// shared meshes, every object using one draws in the same batch
/** @property {Mesh} - A box of size 1 that drawBox uses, for any object that is a box; set the object's scale3D
* and color instead of editing the mesh, which would change every box that uses it */
this.boxMesh = buildBox();
/** @property {Mesh} - A smooth sphere of diameter 1 that drawSphere uses, shared the same way as boxMesh */
this.sphereMesh = buildSphere(1, 16, 8, true);
/** @property {Mesh} - A flat square of size 1 facing +Y, seen from above only, for floors, water and decals;
* stand it up with the object's rotation3D, and size it with scale3D */
this.planeMesh = buildGrid();
this.planeMesh.doubleSided = false;
/** @property {Mesh} - The same square seen and lit from both sides, for signs, cards and leaves */
this.planeMeshDoubleSided = buildGrid();
/** @property {Mesh} - A square of size 1 facing +Z with the tile across it, the corners in the order
* drawBillboard writes them; a ParticleEmitter3D draws its particles as instances of it, each with its own matrix */
this.billboardMesh = new Mesh().addStrip([vec3(-.5, .5, 0), vec3(-.5, -.5, 0), vec3(.5, .5, 0), vec3(.5, -.5, 0)],
vec3(0, 0, 1), RENDER3D_QUAD_UVS);
this.billboardMesh.doubleSided = true;
// read only
/** @property {boolean} - True while the 3D pass is running, 3D draws are only valid then */
this.isRendering = false;
/** @property {boolean} - True while the shadow map is being drawn, draws go to the depth only shader */
this.shadowPass = false;
/** @property {Matrix4} - This frame's view matrix */
this.viewMatrix = new Matrix4;
/** @property {Matrix4} - This frame's projection matrix */
this.projectionMatrix = new Matrix4;
/** @property {Matrix4} - This frame's combined view projection */
this.viewProjection = new Matrix4;
/** @property {Matrix4} - This frame's light view projection for the shadow map */
this.shadowMatrix = new Matrix4;
/** @property {Vector3} - Camera right axis this frame */
this.cameraRight = vec3(1, 0, 0);
/** @property {Vector3} - Camera up axis this frame */
this.cameraUp = vec3(0, 1, 0);
/** @property {Vector3} - Camera forward axis this frame */
this.cameraForward = vec3(0, 0, -1);
this.cameraBack = vec3(0, 0, 1); // its opposite, the normal of camera facing draws
// internal state
this.blend = false; // blending on, set by the stages
/** @type {Array<Array<number>>} */
this.frustumPlanes = []; // the view as six inward planes [x, y, z, w]
/** @type {Array<Array<number>>} */
this.shadowPlanes = []; // the shadow map's box as six planes
/** @type {WebGLProgram|undefined} */
this.program = undefined; // the main program, undefined when not available
/** @type {WebGLProgram|undefined} */
this.currentProgram = undefined; // the program in use during a pass, a Shader's or the main one
this.lightCount = 0; // Light3D objects sent this pass
/** @type {WebGLProgram|undefined} */
this.shadowShader = undefined;
/** @type {WebGLVertexArrayObject|undefined} */
this.vao = undefined;
/** @type {WebGLTexture|undefined} */
this.whiteTexture = undefined; // 1x1 white for untextured draws
/** @type {Map<number, WebGLSampler>} */
this.samplers = new Map; // how textures are filtered in 3D, by wrap and hard edge, see render3DSampler
/** @type {string|undefined} */
this.samplerKey = undefined; // the settings the samplers were made for, they are rebuilt when it changes
/** @type {WebGLTexture|undefined} */
this.shadowTexture = undefined;
/** @type {WebGLFramebuffer|undefined} */
this.shadowFramebuffer = undefined;
this.shadowTextureSize = 0;
/** @type {WebGLTexture|undefined} */
this.cameraDepthTexture = undefined; // the camera's depth, drawn when depthTexture is on
/** @type {WebGLFramebuffer|undefined} */
this.cameraDepthFramebuffer = undefined;
this.cameraDepthWidth = 0;
this.cameraDepthHeight = 0;
this.depthPass = false; // drawing the camera's depth, a shadow pass seen from the camera
this.contextGeneration = 0; // counts context losses, a mesh uploaded under an older one uploads again
this.uniforms = new Map; // uniform locations by program
/** @type {Object<string, Array<number>>} */
this.uniformValues = {}; // last values sent for the cached vec4 uniforms
this.shadowMapDrawn = false; // the shadow map is drawn by the first pass of the frame
this.passIsDefault = true; // the running pass is the default layer, the only one shadowed
this.lightPositions = new Float32Array(RENDER3D_MAX_LIGHTS * 4); // Light3D uniforms, filled each pass
this.lightColors = new Float32Array(RENDER3D_MAX_LIGHTS * 4);
// the stream of immediate mode draws
/** @type {WebGLBuffer|undefined} */
this.streamBuffer = undefined;
/** @type {Array<WebGLBuffer>} */
this.instanceBuffers = []; // the per instance values of the batches being drawn, used in turn
this.instanceBufferIndex = 0;
/** @type {Array<Mesh>} */
this.instanceMeshes = []; // meshes with a batch pending this stage
/** @type {Array<Array<number>>} */
this.attribValues = []; // last values sent for the cached constant attributes
this.streamData = new ArrayBuffer(RENDER3D_MAX_STREAM_VERTS * RENDER3D_VERTEX_BYTES);
this.streamFloats = new Float32Array(this.streamData);
this.streamInts = new Uint32Array(this.streamData);
this.streamCount = 0;
/** @type {TextureInfo|undefined} */
this.streamTileInfo = undefined;
this.streamState = undefined; // captured state the pending batch was drawn under
/** @type {Mesh|undefined} */
this.capture = undefined; // the mesh a bake is filling
/** @type {Array<{distance: number, state: Object, draw: function(): void}>|undefined} */
this.transparentQueue = undefined; // draws queued during the transparent stage, replayed far to near
render3DInitGL();
engineAddPlugin(undefined, render3DRender, render3DContextLost, render3DContextRestored, render3DPreRender);
}
///////////////////////////////////////////////////////////////////////////
// Matrices and picking
/** Rebuild the view and projection matrices from the camera, called automatically each frame
* @param {number} [aspect] - Width over height, defaults to the main canvas */
updateMatrices(aspect=mainCanvasSize.y ? mainCanvasSize.x / mainCanvasSize.y : 1)
{
const camera = this.camera;
if (camera.align2D)
camera.update2D();
const cameraMatrix = camera.getMatrix();
this.viewMatrix = cameraMatrix.copy().invert();
this.projectionMatrix = camera.getProjectionMatrix(aspect);
this.viewProjection = this.projectionMatrix.copy().multiply(this.viewMatrix);
const m = cameraMatrix.m;
this.cameraRight = render3DAxis(m, 0);
this.cameraUp = render3DAxis(m, 4);
this.cameraBack = render3DAxis(m, 8); // the normal of anything facing the camera
this.cameraForward = this.cameraBack.scale(-1);
this.frustumPlanes = render3DFrustumPlanes(this.viewProjection);
}
/** Where a world point lands on screen as -1 to 1 across and up, with z as depth
* - Uses this frame's camera, call updateMatrices first if the camera just moved
* @param {Vector3} pos
* @return {Vector3|undefined} - undefined when behind the camera or closer than the near plane */
worldToClip(pos)
{
const m = this.viewProjection.m;
const w = m[3]*pos.x + m[7]*pos.y + m[11]*pos.z + m[15];
const z = (m[2]*pos.x + m[6]*pos.y + m[10]*pos.z + m[14]) / w;
if (w <= 0 || z < -1)
return; // behind the camera, or in front of the near plane
return vec3(
(m[0]*pos.x + m[4]*pos.y + m[8]*pos.z + m[12]) / w,
(m[1]*pos.x + m[5]*pos.y + m[9]*pos.z + m[13]) / w, z);
}
/** Project a world point to screen space pixels, same space as mousePosScreen
* - The opposite of screenToRay, and it takes the same canvas so the pair agree
* @param {Vector3} pos
* @param {Vector2} [canvasSize] - Defaults to the main canvas size, as in screenToRay;
* the projection is whatever updateMatrices last built, which screenToRay does for its canvas
* @return {Vector2|undefined} - undefined when behind the camera or closer than the near plane */
worldToScreen(pos, canvasSize=mainCanvasSize)
{
const clip = this.worldToClip(pos);
if (!clip)
return;
return vec2((clip.x + 1) / 2 * canvasSize.x, (1 - clip.y) / 2 * canvasSize.y);
}
/** Get the world ray under a screen position, for clicking on things in 3D
* - Uses the camera where it is right now, so it is fine to call from gameUpdate
* - It brings the view matrices up to date for that canvas, so worldToScreen stays its exact opposite
* @param {Vector2} screenPos - Same space as mousePosScreen
* @param {Vector2} [canvasSize] - Defaults to the main canvas size
* @return {Ray3D} - Starts at the camera with a unit direction, or on the near plane when orthographic */
screenToRay(screenPos, canvasSize=mainCanvasSize)
{
// a canvas with no size stands in as 1x1, rather than dividing by zero
const width = canvasSize.x || 1, height = canvasSize.y || 1;
const aspect = width / height, camera = this.camera;
// bring the matrices up to date for this canvas, so worldToScreen and this agree on where things are
this.updateMatrices(aspect);
const clipX = screenPos.x / width * 2 - 1;
const clipY = 1 - screenPos.y / height * 2;
// the screen offset moves a parallel ray's origin, or bends a perspective ray's direction
const h = camera.orthographic ? camera.orthographic / 2 : tan(camera.fov / 2);
const offset = this.cameraRight.scale(clipX * h * aspect).add(this.cameraUp.scale(clipY * h));
// a parallel ray starts on the near plane, which an orthographic camera may put behind it, like three.js
return camera.orthographic
? new Ray3D(camera.pos.add(offset).add(this.cameraForward.scale(camera.near)), this.cameraForward.copy())
: new Ray3D(camera.pos.copy(), this.cameraForward.add(offset).normalize());
}
/** Where a screen position lands on a flat ground plane, for top down games; use HeightMap.raycast for terrain
* @param {Vector2} screenPos - Same space as mousePosScreen
* @param {number} [groundHeight] - World height of the ground plane
* @param {Vector2} [canvasSize] - Defaults to the main canvas size, as in screenToRay
* @return {Vector3|undefined} - undefined when the ray misses the plane */
screenToGround(screenPos, groundHeight=0, canvasSize=mainCanvasSize)
{
const ray = this.screenToRay(screenPos, canvasSize);
const t = raycastPlane(ray, vec3(0, groundHeight, 0), RENDER3D_DEFAULT_NORMAL);
return t === undefined ? undefined : ray.getPosition(t);
}
/** Find the nearest object under a screen position or along a ray, for clicking on things
* - Each object is tested as the box around its mesh in its own space, or a sprite as the quad it draws,
* not triangle by triangle
* - engineObjectsRaycast3D is the other half of this, every object along a ray instead of the nearest
* @param {Vector2|Ray3D} from - A screen position like mousePosScreen, or a ray to look along
* @param {Array<EngineObject>} [objects] - Defaults to every object; only those with a mesh or a sprite count
* @return {{object: EngineObject3D, distance: number}|undefined} */
pick(from, objects=engineObjects)
{
const ray = from instanceof Ray3D ? from : this.screenToRay(from);
let nearest;
for (const o of objects)
{
const distance = render3DRaycastObject(ray, o);
if (distance !== undefined && (!nearest || distance < nearest.distance))
nearest = {object: /** @type {EngineObject3D} */ (o), distance}; // only a 3D object has a distance
}
return nearest;
}
/** Play a sound at a 3D position, quieter with distance from the camera and panned by its side, like Sound.play
* with a 2D position
* @param {Sound} sound
* @param {Vector3} pos3D
* @param {number} [volume]
* @param {number} [pitch]
* @param {number} [randomnessScale] - How much to scale pitch randomness
* @param {boolean} [loop]
* @param {boolean} [paused] - Start it paused
* @return {SoundInstance|undefined} - undefined when out of range or sound is off */
playSound(sound, pos3D, volume=1, pitch=1, randomnessScale=1, loop=false, paused=false)
{
// the 3D range fade and pan, Sound.play with no position does the rest
ASSERT(sound instanceof Sound, 'sound must be a Sound');
ASSERT(isVector3(pos3D), 'pos3D must be a vec3');
const offset = pos3D.subtract(this.camera.pos), range = sound.range;
if (range)
{
const distance = offset.length();
if (distance > range)
return; // out of range
const taperRange = range * sound.taper;
if (distance > taperRange)
volume *= percent(distance, range, taperRange);
}
const instance = sound.play(undefined, volume, pitch, randomnessScale, loop, paused);
instance?.setPan(offset.normalize().dot(this.cameraRight));
return instance;
}
/** Play a sound on a loop at a 3D position, the same as playSound with loop on
* - Its volume and pan are set when it starts, change or stop it through the SoundInstance returned
* @param {Sound} sound
* @param {Vector3} pos3D
* @param {number} [volume]
* @param {number} [pitch]
* @param {number} [randomnessScale] - How much to scale pitch randomness
* @return {SoundInstance|undefined} - undefined when out of range or sound is off */
playSoundLoop(sound, pos3D, volume=1, pitch=1, randomnessScale=1)
{ return this.playSound(sound, pos3D, volume, pitch, randomnessScale, true); }
/** Is any part of a sphere on screen this frame, the test that skips meshes the camera cannot see
* - While the shadow map is drawing it tests the shadow area instead
* @param {Vector3} center
* @param {number} radius
* @return {boolean} */
isSphereVisible(center, radius) { return render3DSphereVisible(center.x, center.y, center.z, radius); }
///////////////////////////////////////////////////////////////////////////
// Meshes and the stream
/** Draw a mesh with the current draw state, batched with its other uses in the opaque stage when instancing is on
* @param {Mesh} mesh
* @param {Matrix4|Vector3} [matrix] - Object transform, or just a position to draw it at
* @param {TileInfo|TextureInfo} [tileInfo] - Texture, mesh uvs map across the tile or the whole texture
* @param {Color} [color] - Tint
* @return {void} */
drawMesh(mesh, matrix=RENDER3D_IDENTITY, tileInfo, color=WHITE)
{
matrix = render3DMatrix(matrix);
ASSERT(!tileInfo || tileInfo instanceof TileInfo || tileInfo instanceof TextureInfo,
'tileInfo must be a TileInfo or TextureInfo, it comes before color');
ASSERT(isColor(color), 'color must be a Color');
if (this.capture)
return void this.capture.combine(mesh, matrix, color);
if (this.transparentQueue)
{
// the queue replays later, so it keeps copies of what a caller may reuse, like a scratch matrix
const m = matrix.copy(), c = color.copy();
return this.queueTransparent(m.getTranslation(), ()=> this.drawMesh(mesh, m, tileInfo, c));
}
if (!render3DCanDraw()) return;
if (this.shadowPass && !this.lighting) return; // unlit things cast no shadow
render3DMeshUpload(mesh);
if (!mesh.bufferCount) return;
const m = matrix.m;
if (this.frustumCulling && !render3DSphereVisible(m[12], m[13], m[14], mesh.radius * render3DMaxStretch(m)))
return;
// the mesh says whether its back faces can be skipped, and a mirroring transform, one with a negative
// determinant, turns the winding around so the other one is its front
const cullBackFaces = this.cullBackFaces, mirrored = this.mirrored;
this.cullBackFaces = !mesh.doubleSided;
this.mirrored = render3DMirrors(matrix);
// the stage draws the batch at its end
if (!this.blend && this.depthTest && (mesh.instanced ?? this.instancing))
render3DInstance(mesh, matrix, tileInfo, color);
else
{
this.flush();
render3DFlushBeforeOverlay();
render3DSetDrawUniforms(matrix, tileInfo, color);
render3DBindMesh(mesh);
glContext.drawElements(glContext.TRIANGLES, mesh.bufferCount, mesh.indexType, 0);
++drawCount;
primitiveCount += mesh.bufferCount / 3;
}
this.cullBackFaces = cullBackFaces, this.mirrored = mirrored;
}
/** Draw a triangle strip, batched into the stream with the current draw state
* - Strip order: the first three points make a triangle, then each point makes another with the two before it
* - List the first three points counter clockwise as seen from the front, or the face points away
* and may vanish when back faces are culled
* - inside a bake the strip goes into the mesh instead, in the transparent stage it is queued for sorting
* and the arrays are read when the queue replays, so leave them unchanged until the stage ends
* @param {Array<Vector3>} points - In strip order
* @param {Vector3|Array<Vector3>} [normals] - One for all or one per point, default up
* @param {Vector2|Array<Vector2>} [uvs] - One for all or one per point, 0-1 across the tile
* @param {Color|Array<Color>} [colors] - One for all or one per point, vertex colors come before the texture
* @param {TileInfo|TextureInfo} [tileInfo] - Texture for this strip
* @return {void} */
drawStrip(points, normals, uvs, colors, tileInfo)
{
if (this.capture)
{
this.capture.addStrip(points, normals, uvs, colors);
return;
}
if (this.transparentQueue)
{
// sort by the center of the strip
let x = 0, y = 0, z = 0;
for (const p of points)
x += p.x, y += p.y, z += p.z;
return this.queueTransparent(vec3(x, y, z).scale(1 / points.length),
()=> this.drawStrip(points, normals, uvs, colors, tileInfo));
}
ASSERT(isArray(points) && points.length > 2, 'strip needs at least 3 points');
const n = points.length, count = render3DStripCount(n);
const uvRect = render3DBeginStrip(count, tileInfo);
if (!uvRect) return;
// the tile rect is applied to each uv now, so the whole texture maps at flush
const floats = this.streamFloats, ints = this.streamInts;
const normalArray = isArray(normals), uvArray = isArray(uvs), colorArray = isArray(colors);
const rgba = colorArray ? 0 : (colors || WHITE).rgbaInt();
for (let k = 0; k < count; ++k)
{
const i = render3DStripIndex(k, n), p = points[i];
const uv = uvArray ? uvs[i] : uvs || RENDER3D_DEFAULT_UV;
render3DWriteVertex(floats, ints, this.streamCount++ * RENDER3D_VERTEX_FLOATS, p.x, p.y, p.z,
normalArray ? normals[i] : normals || RENDER3D_DEFAULT_NORMAL,
uvRect.x + uv.x * uvRect.w, uvRect.y + uv.y * uvRect.h, colorArray ? colors[i].rgbaInt() : rgba);
}
}
/** Draw a strip with lighting off, for camera facing shapes where the light direction means nothing
* @param {Array<Vector3>} points - Strip order
* @param {Vector3|Array<Vector3>} [normals]
* @param {Vector2|Array<Vector2>} [uvs]
* @param {Color|Array<Color>} [colors]
* @param {TileInfo|TextureInfo} [tileInfo] */
drawStripUnlit(points, normals, uvs, colors, tileInfo)
{ render3DWithState({lighting: false}, ()=> this.drawStrip(points, normals, uvs, colors, tileInfo)); }
/** Draw the pending stream vertices as one strip with the state they were drawn under, called automatically when needed */
flush()
{
if (!this.streamCount || !render3DCanDraw()) return;
const gl = glContext;
render3DSetDrawUniforms(RENDER3D_IDENTITY, this.streamTileInfo, WHITE, RENDER3D_FULL_UV_RECT, this.streamState);
render3DBindVertexBuffer(this.streamBuffer);
gl.bufferSubData(gl.ARRAY_BUFFER, 0, this.streamFloats, 0, this.streamCount * RENDER3D_VERTEX_FLOATS);
gl.drawArrays(gl.TRIANGLE_STRIP, 0, this.streamCount);
++drawCount;
primitiveCount += this.streamCount;
this.streamCount = 0;
}
/** Build a mesh once out of draw calls, instead of redrawing the shapes every frame
* - Call the same drawStrip, drawQuad and drawBox calls inside, and get a mesh back
* - Strips inside a bake ignore their tileInfo, the finished mesh picks the texture when it draws
* - drawMesh, drawBox and drawSphere copy their mesh in, moved and tinted, their tileInfo dropped too
* - The mesh skips its back faces like any, set doubleSided when what was drawn is open
* @param {Function} drawFunction
* @return {Mesh} */
bake(drawFunction)
{
this.flush();
ASSERT(!this.capture, 'bake cannot be nested');
const mesh = this.capture = new Mesh;
try { drawFunction(); }
finally { this.capture = undefined; }
return mesh;
}
///////////////////////////////////////////////////////////////////////////
// The stages, run by the pass
/** Draw a layer's objects, solid ones first and see through ones after, called automatically
* - The main layer also draws the sky, the render callbacks and the debug shapes
* @param {Array<EngineObject3D>} objects
* @param {boolean} [isDefault] */
renderStages(objects, isDefault=true)
{
const opaque = [], transparent = [];
for (const o of objects)
(o.transparent || o.additive ? transparent : opaque).push(o);
isDefault && this.sky && this.drawSky();
// opaque: no blending, depth writes on, by render order
this.blend = false;
this.depthWrite = true;
const byOrder = (a, b)=> a.renderOrder - b.renderOrder;
opaque.sort(byOrder);
transparent.sort(byOrder);
render3DDrawObjects(opaque);
isDefault && this.onRenderOpaque?.();
this.flush();
render3DFlushInstances();
// transparent: blending on, depth writes off, every draw queued then replayed far to near
this.blend = true;
this.depthWrite = false;
this.transparentQueue = this.sortTransparent ? [] : undefined;
try
{
render3DDrawObjects(transparent);
for (const o of objects)
if (o.softShadow)
{
// the shadow grows with the object, by the same scale picking and culling
// measure it at, so one size set once holds however the object is scaled
const m = render3DObjectMatrix(o);
this.drawSoftShadow(m.getTranslation(), o.softShadow * render3DMaxScale(m.m), this.softShadowHeight);
}
isDefault && this.onRenderTransparent?.();
}
finally { this.flushTransparentQueue(); }
isDefault && render3DRenderDebug();
this.flush();
// leave the fields at the opaque defaults for anything reading them outside the pass
render3DSetObjectState();
this.blend = false;
this.depthWrite = true;
}
/** Queue a draw for the transparent stage, replayed far to near with the current draw state, or draw it now when
* sorting is off
* - The draw runs later, so it should hold copies of any values the caller may change before then
* @param {Vector3} pos - Where the draw is, for sorting
* @param {function(): void} draw
* @return {void} */
queueTransparent(pos, draw)
{
if (!this.transparentQueue)
{
draw();
return;
}
// sort by depth along the view, not distance, so an orthographic camera orders them right too
const f = this.cameraForward, c = this.camera.pos;
const distance = (pos.x - c.x)*f.x + (pos.y - c.y)*f.y + (pos.z - c.z)*f.z;
this.transparentQueue.push({distance, state: render3DCaptureBatchState(), draw});
}
/** Draw the queued transparent draws far to near with the state each was drawn under, called automatically at the
* end of the transparent stage */
flushTransparentQueue()
{
const queue = this.transparentQueue;
if (!queue) return;
this.transparentQueue = undefined;
queue.sort((a, b)=> b.distance - a.distance);
// each draw under the state it was queued with, and the state left as it was found
const state = render3DCaptureBatchState();
try
{
for (const item of queue)
render3DApplyBatchState(item.state), item.draw();
}
finally { render3DApplyBatchState(state); }
}
/** Draw render3D.sky around the camera, unlit, unfogged and behind everything, called automatically by the pass */
drawSky()
{
this.flush();
// the dome only has to sit between the clip planes, the pass draws it first with no depth test;
// a far plane at Infinity has no midpoint, so put it a long way out instead
const {near, far} = this.camera;
const radius = far == Infinity ? near * 1e4 : (near + far) / 2;
render3DWithState({lighting: false, blend: false, depthTest: false, depthWrite: false, fogEnd: 0, shader: undefined,
emissiveMap: undefined}, ()=>
this.drawMesh(this.sky, buildMatrix(this.camera.pos, undefined, vec3(radius))));
}
/** Rebuild the light's view projection around the shadow center, called automatically each frame shadows are on */
updateShadowMatrix()
{
ASSERT(this.shadowRange > 0, 'shadowRange must be positive');
const range = this.shadowRange > 0 ? this.shadowRange : 1, half = range / 2;
const toSun = this.sunDirection.normalize();
const center = this.shadowCenter || this.camera.pos.add(this.cameraForward.scale(half * .8));
const view = Matrix4.lookAt(center.add(toSun.scale(range)), center).invert();
// move the light's view in whole pixel steps so shadow edges do not crawl as the camera moves
const texel = range / (this.shadowTextureSize || this.shadowMapSize), m = view.m; // no texture in headless mode
m[12] = round(m[12] / texel) * texel;
m[13] = round(m[13] / texel) * texel;
this.shadowMatrix = Matrix4.orthographic(-half, half, -half, half, 0, range * 2).multiply(view);
this.shadowPlanes = render3DFrustumPlanes(this.shadowMatrix);
}
/** Build a sky dome, set it as the sky, and light the scene by it: the fog takes the horizon color, and the
* ambient light comes from the top color above and the bottom color below, both at the ambient strength
* @param {Color} [topColor] - Straight up
* @param {Color} [horizonColor] - Level with the camera
* @param {Color} [bottomColor] - Straight down, defaults to the horizon color
* @param {number} [ambient] - How much of the sky colors lights the scene as ambient, 0 for none
* @return {Mesh} - The dome, also in render3D.sky */
setSky(topColor=hsl(.6, .8, .55), horizonColor=hsl(.6, 1, .9), bottomColor=horizonColor, ambient=.5)
{
this.sky?.dispose();
this.sky = buildSky(topColor, horizonColor, bottomColor);
this.fogColor = horizonColor.copy();
this.ambientColor = topColor.scale(ambient, 1);
this.ambientGroundColor = bottomColor.scale(ambient, 1);
return this.sky;
}
/** Set where fog starts and ends, and its color
* @param {number} fogStart - Distance from the camera where fog starts
* @param {number} fogEnd - Distance where fog is total, 0 disables fog
* @param {Color} [fogColor] - Leaves the color alone when not passed, setSky sets it to the horizon */
setFog(fogStart, fogEnd, fogColor)
{
this.fogStart = fogStart;
this.fogEnd = fogEnd;
if (fogColor)
this.fogColor = fogColor.copy();
}
///////////////////////////////////////////////////////////////////////////
// Immediate mode shapes
/** Draw a box, untextured, for blocking out a scene without meshes or objects
* @param {Vector3} pos - Center
* @param {Vector3|number} [size] - Full size, a number for a cube
* @param {Color} [color]
* @param {Vector3} [rotation] - vec3(pitch, yaw, roll) */
drawBox(pos, size=1, color=WHITE, rotation)
{
this.drawMesh(this.boxMesh, buildMatrix(pos, rotation, render3DSize3(size)), undefined, color);
}
/** Draw a sphere, untextured and smooth shaded
* @param {Vector3} pos - Center
* @param {number} [size] - Diameter
* @param {Color} [color] */
drawSphere(pos, size=1, color=WHITE)
{
this.drawMesh(this.sphereMesh, buildMatrix(pos, undefined, vec3(size)), undefined, color);
}
/** Draw a flat square that always faces the camera, unlit so it keeps its own colors
* - Draw it from onRenderTransparent or a transparent object so it can fade
* @param {Vector3} pos - Center
* @param {Vector2} [size] - World units
* @param {TileInfo|TextureInfo} [tileInfo]
* @param {Color} [color]
* @param {number} [angle] - Rotation in the camera plane, counter clockwise
* @param {boolean} [upright] - Stand on world up and only turn to face the camera, for sprites on the ground
* @return {void} */
drawBillboard(pos, size=vec2(1), tileInfo, color=WHITE, angle=0, upright=false)
{
if (this.capture) // the mesh keeps the color, so it gets its own, the particles reuse theirs
return this.drawStripUnlit(render3DBillboardCorners(pos, size, angle, upright), this.cameraBack,
RENDER3D_QUAD_UVS, color.copy(), tileInfo);
if (this.transparentQueue) // sort by the exact position, a shadow under it sorts by the floor
{
const p = pos.copy(), s = size.copy(), c = color.copy(); // copies, the queue replays later
return this.queueTransparent(p, ()=> this.drawBillboard(p, s, tileInfo, c, angle, upright));
}
// the quad's six stream vertices written straight in with no vectors made, unlit, for sprites, and for
// particles when instancing is off
const lit = this.lighting;
this.lighting = this.shadowPass && lit; // unlit on screen, in the shadow map the object's flag decides
let uvRect;
try { uvRect = render3DBeginStrip(6, tileInfo); }
finally { this.lighting = lit; }
if (!uvRect) return;
const a = render3DBillboardAxes(size, angle, upright);
const rx = a[0], ry = a[1], rz = a[2], ux = a[3], uy = a[4], uz = a[5];
const x = pos.x, y = pos.y, z = pos.z, n = this.cameraBack, rgba = color.rgbaInt();
const u0 = uvRect.x, v0 = uvRect.y, u1 = u0 + uvRect.w, v1 = v0 + uvRect.h;
const floats = this.streamFloats, ints = this.streamInts, stride = RENDER3D_VERTEX_FLOATS;
let j = this.streamCount * stride;
this.streamCount += 6;
// the corners in strip order with the repeats: top left twice, bottom left, top right, bottom right twice
render3DWriteVertex(floats, ints, j, x - rx + ux, y - ry + uy, z - rz + uz, n, u0, v0, rgba);
render3DWriteVertex(floats, ints, j += stride, x - rx + ux, y - ry + uy, z - rz + uz, n, u0, v0, rgba);
render3DWriteVertex(floats, ints, j += stride, x - rx - ux, y - ry - uy, z - rz - uz, n, u0, v1, rgba);
render3DWriteVertex(floats, ints, j += stride, x + rx + ux, y + ry + uy, z + rz + uz, n, u1, v0, rgba);
render3DWriteVertex(floats, ints, j += stride, x + rx - ux, y + ry - uy, z + rz - uz, n, u1, v1, rgba);
render3DWriteVertex(floats, ints, j += stride, x + rx - ux, y + ry - uy, z + rz - uz, n, u1, v1, rgba);
}
/** Draw a quad from four corners in loop order, counter clockwise seen from the front, a is the top left of the texture
* @param {Vector3} a
* @param {Vector3} b
* @param {Vector3} c
* @param {Vector3} d
* @param {TileInfo|TextureInfo} [tileInfo]
* @param {Color|Array<Color>} [color] - One for all or one per corner */
drawQuad(a, b, c, d, tileInfo, color=WHITE)
{
if (this.transparentQueue) // the queue replays later, so it keeps copies of what a caller may reuse
{
a = a.copy(), b = b.copy(), c = c.copy(), d = d.copy();
color = isArray(color) ? color.map(k=> k.copy()) : color.copy();
}
this.drawStrip(render3DQuadStrip(a, b, c, d), render3DFaceNormal(a, b, c, d), RENDER3D_QUAD_UVS,
render3DQuadValues(color), tileInfo);
}
/** Draw a triangle, counter clockwise from outside is the front
* @param {Vector3} a
* @param {Vector3} b
* @param {Vector3} c
* @param {Color} [color] */
drawTriangle(a, b, c, color=WHITE)
{
if (this.transparentQueue) // the queue replays later, so it keeps copies of what a caller may reuse
a = a.copy(), b = b.copy(), c = c.copy(), color = color.copy();
this.drawStrip([a, b, c], render3DFaceNormal(a, b, c), undefined, color);
}
/** Draw a line as a camera facing ribbon, unlit
* @param {Vector3} posA
* @param {Vector3} posB
* @param {number} [width]
* @param {Color} [color] */
drawLine(posA, posB, width=.1, color=WHITE)
{
this.drawRibbon([posA, posB], width, undefined, color);
}
/** Draw a ribbon along a path, unlit and visible from both sides; width and color can change along it
* - The texture runs along the length, u from the first point to the last
* - A path that ends where it starts is a loop, and joins with no seam
* @param {Array<Vector3>} points - Center line in order, at least two
* @param {number|Array<number>} [width] - Full width, one for all or one per point
* @param {TileInfo|TextureInfo} [tileInfo]
* @param {Color|Array<Color>} [color] - One for all or one per point
* @param {Vector3|Array<Vector3>} [side] - Direction across the ribbon, one for all or one per point, default
* faces the camera */
drawRibbon(points, width=.1, tileInfo, color=WHITE, side)
{
const count = points.length;
ASSERT(count > 1, 'a ribbon needs at least two points');
ASSERT(!tileInfo || tileInfo instanceof TileInfo || tileInfo instanceof TextureInfo,
'tileInfo must be a TileInfo or TextureInfo, it comes before color');
const strip = [], uvs = tileInfo ? [] : undefined, colors = [], forward = this.cameraForward;
let across = vec3(1, 0, 0); // kept from the last point where the direction vanishes
// a loop's two ends take their direction across the join, so they meet edge to edge
const loop = count > 2 && points[0].distanceSquared(points[count - 1]) < 1e-12;
for (let i = 0; i < count; ++i)
{
const p = points[i];
const w = isArray(width) ? width[i] : width;
let c = isArray(color) ? color[i] : color;
if (this.transparentQueue) // the queue replays later, so it keeps a copy of a color a caller may reuse
c = c.copy();
const s = side && (isArray(side) ? side[i] : side);
// across the path in the camera plane unless a side is given
const next = points[i < count - 1 ? i + 1 : loop ? 1 : i];
const last = points[i > 0 ? i - 1 : loop ? count - 2 : i];
const dir = s || next.subtract(last).cross(forward);
if (dir.lengthSquared() > 1e-12)
across = dir.normalize();
const half = across.scale(w / 2);
strip.push(p.add(half), p.subtract(half));
uvs?.push(vec2(i / (count - 1), 0), vec2(i / (count - 1), 1));
colors.push(c, c);
}
render3DWithState({lighting: false, cullBackFaces: false},
()=> this.drawStrip(strip, forward.scale(-1), uvs, colors, tileInfo));
}
/** Draw a disc that fades to transparent at the rim, unlit, for glows, puffs and sky dots
* @param {Vector3} pos - Center
* @param {number} [size] - Diameter
* @param {Color} [color]
* @param {Vector3} [normal] - Facing direction, faces the camera by default
* @param {number} [sides]
* @return {void} */
drawSoftDisc(pos, size=1, color=WHITE, normal=this.cameraBack, sides=16)
{
render3DAssertBlending();
if (this.transparentQueue && !this.capture)
{
const p = pos.copy(), c = color.copy(), n = normal.copy(); // copies, the queue replays later
return this.queueTransparent(p, ()=> this.drawSoftDisc(p, size, c, n, sides));
}
// basis in the disc's plane
const n = normal.normalize();
const helper = abs(n.y) < .9 ? vec3(0, 1, 0) : vec3(1, 0, 0);
const u = helper.cross(n).normalize(), w = u.cross(n);
render3DDrawSoftDisc(size / 2, color, sides, n, (c, s, r)=>
vec3(pos.x + (u.x * c + w.x * s) * r, pos.y + (u.y * c + w.y * s) * r, pos.z + (u.z * c + w.z * s) * r));
}
/** Draw a soft round shadow on the ground under something, much cheaper than a real shadow
* - Draw it from onRenderTransparent or from a transparent object
* @param {Vector3} pos - Position of the thing casting the shadow
* @param {number} [size] - Diameter
* @param {number|HeightMap|function(number, number): number} [floorHeight] - Height of the ground, a HeightMap, or
* (x, z) => y to follow terrain
* @param {Color} [color]
* @param {number} [lift] - How far above the ground to draw, raise it if the shadow cuts into rough ground
* @return {void} */
drawSoftShadow(pos, size=1, floorHeight=0, color=RENDER3D_SHADOW_COLOR, lift=.02)
{
render3DAssertBlending();
// a HeightMap is in the extras plugin, so it is known by its getHeight rather than its class
const heightMap = /** @type {HeightMap} */ (floorHeight);
const height = /** @type {function(number, number): number} */ (isNumber(floorHeight) ? ()=> floorHeight
: heightMap.getHeight ? (x, z)=> heightMap.getHeight(x, z) : floorHeight);
if (this.transparentQueue && !this.capture) // sort from the floor, under whatever casts it
{
const p = pos.copy(), c = color.copy(); // copies, the queue replays later
return this.queueTransparent(vec3(p.x, height(p.x, p.z) + lift, p.z),
()=> this.drawSoftShadow(p, size, floorHeight, c, lift));
}
render3DDrawSoftDisc(size / 2, color, 16, RENDER3D_DEFAULT_NORMAL, (c, s, r)=>
{
const x = pos.x + c * r, z = pos.z + s * r;
return vec3(x, height(x, z) + lift, z);
});
}
}
function render3DAssertBlending()
{
const r = render3D;
ASSERT(r.blend || r.capture || r.shadowPass || !r.isRendering,
'soft discs and shadows need blending: set the object transparent or draw from onRenderTransparent');
}
// draw the three rings of a soft disc as unlit strips, pointAt(cos, sin, radius) gives the world point
function render3DDrawSoftDisc(radius, color, sides, normal, pointAt)
{
const alpha = [1, .9, .7, 0], circle = render3DCircle(sides); // alpha by ring, center to rim
for (let k = 0; k < 3; ++k)
{
const points = [], colors = [];
const c0 = color.withAlpha(color.a * alpha[k]), c1 = color.withAlpha(color.a * alpha[k+1]);
const r0 = radius * k / 3, r1 = radius * (k + 1) / 3;
for (let i = 0; i <= sides; ++i)
{
const c = circle[i*2], s = circle[i*2 + 1];
points.push(pointAt(c, s, r1), pointAt(c, s, r0));
colors.push(c1, c0);
}
render3D.drawStripUnlit(points, normal, undefined, colors);
}
}
///////////////////////////////////////////////////////////////////////////////
/**
* Camera3D - Position, rotation and lens for the 3D view
* - Looks down its -Z axis, rotation is vec3(pitch, yaw, roll)
* @memberof Render3D
*/
class Camera3D
{
/** Create a camera, looking down -Z from z=10 by default */
constructor()
{
/** @property {Vector3} - World position */
this.pos = vec3(0, 0, 10);
/** @property {Vector3} - Euler rotation, vec3(pitch, yaw, roll) in radians */
this.rotation = vec3();
/** @property {number} - Vertical field of view in radians */
this.fov = PI/3;
/** @property {number} - Near clip distance */
this.near = .1;
/** @property {number} - Far clip distance, Infinity is allowed for a perspective view */
this.far = 1e3;
/** @property {number} - Visible height in world units for an orthographic view, 0 is perspective */
this.orthographic = 0;
/** @property {boolean} - Line the 3D camera up with the 2D camera, so 3D things at z=0 sit on the 2D sprites */
this.align2D = false;
}
/** Returns the camera's world transform
* @return {Matrix4} */
getMatrix() { return buildMatrix(this.pos, this.rotation); }
/** Returns the view matrix, world to camera space
* @return {Matrix4} */
getViewMatrix() { return this.getMatrix().invert(); }
/** Returns the projection matrix
* @param {number} aspect - Width over height
* @return {Matrix4} */
getProjectionMatrix(aspect)
{
const h = this.orthographic / 2, w = h * aspect;
return h ? Matrix4.orthographic(-w, w, -h, h, this.near, this.far) :
Matrix4.perspective(this.fov, aspect, this.near, this.far);
}
/** Returns the direction the camera looks
* @return {Vector3} */
getForward() { return render3DAxis(this.getMatrix().m, 8).scale(-1); }
/** Returns the camera's right axis
* @return {Vector3} */
getRight() { return render3DAxis(this.getMatrix().m, 0); }
/** Returns the camera's up axis
* @return {Vector3} */
getUp() { return render3DAxis(this.getMatrix().m, 4); }
/** Point the camera at a target, sets pitch and yaw and clears roll
* @param {Vector3} target */
lookAt(target) { this.rotation = render3DLookRotation(target.subtract(this.pos), this.rotation); }
/** Put the camera on an orbit around a target, looking at it
* @param {Vector3} target
* @param {number} distance
* @param {number} yaw - Radians around Y
* @param {number} [pitch] - Radians above the horizon */
orbit(target, distance, yaw, pitch=.5)
{
const r = cos(pitch) * distance;
this.pos = target.add(vec3(sin(yaw) * r, sin(pitch) * distance, cos(yaw) * r));
// straight down has no yaw of its own to look along, so the orbit's yaw is used, and a top down view turns
this.rotation = render3DLookRotation(target.subtract(this.pos), vec3(0, yaw, 0));
}
/** Chase a target from an offset, easing toward it, and look at it
* @param {Vector3} target
* @param {Vector3} offset - Where to sit relative to the target
* @param {number} [percent] - How far to move toward the spot each call, 1 snaps */
follow(target, offset, percent=1)
{
this.pos = this.pos.lerp(target.add(offset), percent);
this.lookAt(target);
}
/** Line the 3D camera up with the 2D camera, called automatically when align2D is set
* @param {number} [canvasHeight] - Defaults to the main canvas height */
update2D(canvasHeight=mainCanvasSize.y)
{
const halfHeight = canvasHeight / 2 / cameraScale; // half visible height in world units
const distance = halfHeight / tan(this.fov/2);
// a zoomed out 2D camera sits a long way back, far enough to fall past the far plane and
// clip the whole scene away, which looks like nothing rendering at all
ASSERT(!canvasHeight || distance < this.far,
'align2D needs this camera distance to match the 2D view, raise camera.far past it', distance);
this.orthographic &&= halfHeight * 2; // an orthographic camera stays orthographic and shows the same height
this.pos = vec3(cameraPos.x, cameraPos.y, distance);
this.rotation = vec3(0, 0, -cameraAngle); // 2D angles turn the other way
}
}
///////////////////////////////////////////////////////////////////////////////
// GL setup, shaders and the frame hooks
// the four attributes of a 36 byte vertex at the locations the shaders declare: location, size, type, normalize, byte offset
/** @type {Array<[number, number, number, boolean, number]>} */
const RENDER3D_ATTRIBS = [[0, 3, 5126, false, 0], [1, 3, 5126, false, 12], [2, 2, 5126, false, 24], [3, 4, 5121, true, 32]];
// the vertex shader, shared by the plugin's program and every Shader's
// attributes: p position, n normal, t uv, c color, at fixed slots the depth shader also uses
// uniforms: viewProj, lightViewProj; the model matrix, the tint and the uv rect are vertex attributes, see
// RENDER3D_VERTEX_INPUTS; L is the mesh's own uv for a Shader's localUV
// the normal matrix comes from the model matrix here: each column over its squared length, which is the inverse
// transpose of any rotation and scale, mirrored or not, and skips a 3x3 inverse per draw on the CPU; a sheared
// matrix, one built by multiplying rotations with scales between them, gets normals that are only close
const RENDER3D_VERTEX_SOURCE =
'#version 300 es\n' +
'precision highp float;' +
'uniform mat4 viewProj,lightViewProj;' +
RENDER3D_VERTEX_INPUTS +
'out vec3 P,N;out vec2 T,L;out vec4 C,S;' +
'void main(){' +
'vec4 w=mat4(m0,m1,m2,m3)*vec4(p,1.);' +
'gl_Position=viewProj*w;' +
'P=w.xyz;' +
'vec3 c0=m0.xyz,c1=m1.xyz,c2=m2.xyz;' +
'N=mat3(c0/dot(c0,c0),c1/dot(c1,c1),c2/dot(c2,c2))*n;' +
'T=uvRect.xy+t*uvRect.zw;' +
'L=t;' +
'C=c*tint;' +
'S=lightViewProj*w;' +
'}';
// the names a Shader's snippet can use in 3D, over the plugin's own uniforms and varyings
const RENDER3D_SNIPPET_NAMES =
'uniform float iTime;uniform vec3 iResolution;\n' +
'#define iChannel0 tex\n' +
'#define localUV L\n' +
'#define worldPos P\n' +
'#define worldNormal N\n' +
'#define sunDirection (-lightDir.xyz)\n' +
'#define sunColor lightColor.rgb\n' +
'#define ambientColor ambientFog.rgb\n' +
'#define ambientGroundColor ambientGround.rgb\n' +
'#define lightCount extraLightCount\n' +
'#define lights extraLights\n' +
'#define lightColors extraLightColors\n';
// the fragment shader; given a Shader's snippet, its mainImage replaces the texture sample and all else is the same
// uniforms: lightDir (xyz the way the sunlight travels, w = emissive, 1 or more skips the lighting),
// lightColor (the sun's rgb, a = specular), ambientFog (rgb, a = fogEnd), fogColor (rgb, a = fogStart),
// cameraPos, tex, shadowMap, shadowParams (x = shadows on, y = bias, z = blur step in texture space,
// w = how the draw finishes: 1 opaque and alpha tested, 0 blended, -1 additive),
// materialParams (x = normal map scale, 0 skips it, y = shininess, z = reflectivity), emissiveTint (rgb, a = the
// emissive map is on), skyTop, skyHorizon, skyBottom (what a reflection shows), normalTex, emissiveTex
function render3DFragmentSource(fragmentCode)
{
return '#version 300 es\n' +
'precision highp float;' +
'uniform vec4 lightDir,lightColor,ambientFog,ambientGround,fogColor,shadowParams;' +
'uniform vec4 extraLights[' + RENDER3D_MAX_LIGHTS + '],extraLightColors[' + RENDER3D_MAX_LIGHTS + '];' +
'uniform int extraLightCount;' +
'uniform vec3 cameraPos;' +
'uniform vec4 materialParams,emissiveTint,skyTop,skyHorizon,skyBottom;' +
'uniform sampler2D tex,normalTex,emissiveTex;' +
'uniform bool premultipliedTexture;' + // is the texture a render target, which holds premultiplied color
'uniform highp sampler2DShadow shadowMap;' +
'in vec3 P,N;in vec2 T,L;in vec4 C,S;' +
'out vec4 o;' +
// the sun shadow at this fragment, 0 to 1: the light's depth map with a 3x3 blur, outside the map is lit
'float shadow(){' +
'if(shadowParams.x<=0.)return 1.;' +
'vec3 q=S.xyz/S.w*.5+.5;' +
'if(any(greaterThanEqual(abs(q-.5),vec3(.5))))return 1.;' +
'q.z-=shadowParams.y;' +
'float s=0.;' +
'for(int x=-1;x<=1;++x)for(int y=-1;y<=1;++y)' +
's+=texture(shadowMap,vec3(q.xy+vec2(x,y)*shadowParams.z,q.z));' +
'return s/9.;}' +
// the normal map's normal here, in the frame that the position and texture coordinate change along across the
// screen, so a mesh needs no tangents; green points up the image and v runs down it, so up is -v;
// a mesh with no texture coordinates has no frame and keeps its own normal
'vec3 normalMapNormal(vec3 n){' +
'vec3 p1=dFdx(P),p2=dFdy(P);vec2 t1=dFdx(T),t2=dFdy(T);' +
'vec3 a=cross(p2,n),b=cross(n,p1),u=a*t1.x+b*t2.x,v=a*t1.y+b*t2.y;' +
'float k=max(dot(u,u),dot(v,v));' +
'if(k<=0.)return n;' +
'vec3 m=texture(normalTex,T).xyz*2.-1.;' +
'm.xy*=materialParams.x;' +
'return normalize((u*m.x-v*m.y)*inversesqrt(k)+n*m.z);}' +
(fragmentCode ? RENDER3D_SNIPPET_NAMES + fragmentCode + '\n' : '') +
'void main(){' +
(fragmentCode ? 'vec4 t;mainImage(t,T);' : 'vec4 t=texture(tex,T);') +
'if(premultipliedTexture&&t.a>0.)t.rgb/=t.a;' + // back to straight color, what the lighting and blend expect
'if(shadowParams.w>0.&&t.a<.5)discard;' + // an opaque draw drops see through texels, as the shadow map does
'vec4 c=C*t;' +
'float e=lightDir.w;' +
'if(e<1.){' +
'vec3 n=dot(N,N)>0.?normalize(N):vec3(0,1,0);' +
'if(!gl_FrontFacing)n=-n;' + // only a double sided mesh shows a back face, light it on the side that is seen
'if(materialParams.x!=0.)n=normalMapNormal(n);' +
'float nl=dot(n,-lightDir.xyz);' +
'float s=shadow();' +
// the ambient: one color, or blended from the ground color below to the sky color above by the way the face points
'vec3 l=(ambientGround.a>0.?mix(ambientGround.rgb,ambientFog.rgb,n.y*.5+.5):ambientFog.rgb)+lightColor.rgb*max(nl,0.)*s;' +
// the Light3D objects: a point light falls off with distance, a directional one does not and carries the
// direction toward it in xyz, marked by a negative radius; each adds its own highlight when there is a strength
'vec3 eye=lightColor.a>0.?normalize(cameraPos-P):vec3(0),sp=vec3(0);' +
'for(int i=0;i<' + RENDER3D_MAX_LIGHTS + ';++i){' +
'if(i>=extraLightCount)break;' +
'vec4 L=extraLights[i];' +
'bool directional=L.w<0.;' +
'vec3 v=directional?L.xyz:L.xyz-P;' +
'float d=length(v);' +
'float a=directional?1.:max(0.,1.-d/L.w);' +
'v/=max(d,1e-6);' +
'float ln=dot(n,v);' +
'vec3 lc=extraLightColors[i].rgb*extraLightColors[i].a*a*a;' +
'l+=lc*max(0.,ln);' +
'if(lightColor.a>0.)sp+=lc*pow(max(dot(reflect(-v,n),eye),0.),materialParams.y)*step(0.,ln);' +
'}' +
'c.rgb*=l*(1.-e)+e;' + // lit, blended toward its own color by how emissive it is
// specular: the sun's only where its light hits and out of shadow, then the Light3D highlights,
// skipped entirely when the strength is zero
'if(lightColor.a>0.){' +
'vec3 r=reflect(lightDir.xyz,n);' +
'c.rgb+=lightColor.rgb*pow(max(dot(r,eye),0.),materialParams.y)*lightColor.a*step(0.,nl)*s*(1.-e)+sp*lightColor.a*(1.-e);' +
'}' +
// the sky along the reflected view, more at a glancing angle (Schlick's Fresnel); sky light, so the sun's
// shadow does not dim it
'if(materialParams.z>0.){' +
'vec3 w=normalize(P-cameraPos),q=reflect(w,n);' +
'float f=materialParams.z+(1.-materialParams.z)*pow(1.-max(dot(n,-w),0.),5.);' +
'c.rgb=mix(c.rgb,q.y>0.?mix(skyHorizon.rgb,skyTop.rgb,q.y):mix(skyHorizon.rgb,skyBottom.rgb,-q.y),f);' +
'}}else c.rgb*=e;' + // fully emissive: its own color, or brighter, with no lighting to work out
// the emissive map adds its light on top, lit or not
'if(emissiveTint.a>0.)c.rgb+=texture(emissiveTex,T).rgb*emissiveTint.rgb;' +
'if(ambientFog.a>0.){' +
'float z=distance(cameraPos,P);' +
'c.rgb=mix(c.rgb,shadowParams.w<0.?vec3(0):fogColor.rgb,smoothstep(fogColor.a,ambientFog.a,z));' +
'}' +
'o=vec4(c.rgb,shadowParams.w>0.?1.:c.a);' + // an opaque draw stays opaque whatever the tint alpha says
'}';
}
// a Shader's 3D program, compiled the first time a draw needs it
function render3DShaderProgram(shader)
{
ASSERT(shader instanceof Shader, 'render3D.shader must be a Shader, not the snippet itself');
return shader.program3D ||= glCreateProgram(RENDER3D_VERTEX_SOURCE, render3DFragmentSource(shader.fragmentCode));
}
// make a program current for the pass and send it the pass uniforms: the matrices, the camera and the lights,
// plus the time and canvas size for a Shader's program; the per draw uniform cache starts over
function render3DUseProgram(program)
{
const gl = glContext, r = render3D;
gl.useProgram(r.currentProgram = program);
r.uniformValues = {};
gl.uniformMatrix4fv(render3DUniform('viewProj'), false, r.viewProjection.m);
gl.uniformMatrix4fv(render3DUniform('lightViewProj'), false, r.shadowMatrix.m);
gl.uniform1i(render3DUniform('tex'), 0);
gl.uniform1i(render3DUniform('shadowMap'), 1);
gl.uniform1i(render3DUniform('normalTex'), 2);
gl.uniform1i(render3DUniform('emissiveTex'), 3);
const c = r.camera.pos;
gl.uniform3f(render3DUniform('cameraPos'), c.x, c.y, c.z);
gl.uniform1i(render3DUniform('extraLightCount'), r.lightCount);
if (r.lightCount)
{
gl.uniform4fv(render3DUniform('extraLights'), r.lightPositions, 0, r.lightCount * 4);
gl.uniform4fv(render3DUniform('extraLightColors'), r.lightColors, 0, r.lightCount * 4);
}
if (program !== r.program)
{
gl.uniform1f(render3DUniform('iTime'), time);
gl.uniform3f(render3DUniform('iResolution'), glCanvas.width, glCanvas.height, 1);
}
}
function render3DInitGL()
{
if (headlessMode) return;
if (!glEnable || !glContext)
{
console.warn('Render3DPlugin: WebGL not enabled, construct the plugin in gameInit with glEnable set');
return;
}
const gl = glContext, r = render3D;
glFlush(); // a pending 2D batch draws now, while the engine's own buffer, vertex array and program are bound
r.uniforms = new Map;
r.uniformValues = {};
render3DShadowCut = undefined; // the shadow shader is new too
r.attribValues = []; // a fresh context has its own attribute defaults, so nothing sent before it counts
// the shader, see RENDER3D_VERTEX_SOURCE and render3DFragmentSource
r.program = glCreateProgram(RENDER3D_VERTEX_SOURCE, render3DFragmentSource());
// the depth only shader for the shadow map, same vertex layout; see through pixels cast nothing, so sprites and
// cut out textures cast their outline, and a blended object faded below half its alpha casts nothing, as it
// draws; an opaque one draws solid whatever its tint alpha, and casts so
r.shadowShader = glCreateProgram(
'#version 300 es\n' +
'precision highp float;' +
'uniform mat4 viewProj;' +
RENDER3D_VERTEX_INPUTS +
'out vec2 T;out float A;' +
'void main(){T=uvRect.xy+t*uvRect.zw;A=c.a*tint.a;gl_Position=viewProj*mat4(m0,m1,m2,m3)*vec4(p,1.);}'
,
'#version 300 es\n' +
'precision highp float;' +
'uniform sampler2D tex;' +
'uniform float cut;' + // 1 for a blended batch, cut by its tint and vertex alpha too, 0 by the texture only
'in vec2 T;in float A;' +
'void main(){if(texture(tex,T).a*mix(1.,A,cut)<.5)discard;}'
);
// the vertex array object with the attributes enabled once, pointers are set per buffer by render3DBindVertexBuffer
// the per instance attributes get their divisor only while a batch has them on, see render3DDrawInstanced
r.vao = gl.createVertexArray();
gl.bindVertexArray(r.vao);
for (const [location] of RENDER3D_ATTRIBS)
gl.enableVertexAttribArray(location);
// the stream buffer
r.streamBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER, r.streamBuffer);
gl.bufferData(gl.ARRAY_BUFFER, r.streamData.byteLength, gl.DYNAMIC_DRAW);
r.streamCount = 0;
r.instanceBuffers = [gl.createBuffer(), gl.createBuffer(), gl.createBuffer()];
// white texture for untextured draws, and a one texel shadow map that keeps the shadow sampler valid until shadows
// are on
r.whiteTexture = glCreateTexture();
r.samplers = new Map;
r.samplerKey = undefined;
render3DUpdateShadowMap(1);
// hand the engine back its own buffer, vertex array and program, the 2D batch was flushed before they changed
gl.bindBuffer(gl.ARRAY_BUFFER, glArrayBuffer);
glSetInstancedMode(true);
}
function render3DContextLost()
{
const r = render3D;
r.program = r.currentProgram = r.shadowShader = r.vao = r.streamBuffer = r.whiteTexture = undefined;
for (const shader of glShaderObjects)
shader.program3D = undefined; // compiled again by the next draw
r.lightCount = 0;
r.instanceBuffers = [];
r.samplers = new Map;
r.samplerKey = undefined;
render3DClearInstances();
r.shadowFramebuffer = r.shadowTexture = undefined;
r.shadowTextureSize = 0;
r.cameraDepthFramebuffer = r.cameraDepthTexture = undefined;
r.cameraDepthWidth = r.cameraDepthHeight = 0;
r.streamCount = 0;
++r.contextGeneration; // every uploaded mesh is stale now, the soft dot is a TextureInfo the engine restores
}
function render3DContextRestored()
{
render3DInitGL();
}
// a uniform location, looked up once per program
function render3DUniform(name, program=render3D.currentProgram)
{
const u = render3D.uniforms;
let cache = u.get(program);
cache || u.set(program, cache = {});
return cache[name] ??= glContext.getUniformLocation(program, name);
}
// the model matrix, the tint and the uv rect as constant attributes for one draw
function render3DDrawAttribs(m, tint, uvRect)
{
const gl = glContext;
gl.vertexAttrib4f(4, m[0], m[1], m[2], m[3]);
gl.vertexAttrib4f(5, m[4], m[5], m[6], m[7]);
gl.vertexAttrib4f(6, m[8], m[9], m[10], m[11]);
gl.vertexAttrib4f(7, m[12], m[13], m[14], m[15]);
render3DAttrib4f(11, tint.r, tint.g, tint.b, tint.a);
render3DAttrib4f(12, uvRect.x, uvRect.y, uvRect.w, uvRect.h);
}
// set a constant vec4 attribute only when its value changed since the last time
function render3DAttrib4f(location, x, y, z, w)
{
const values = render3D.attribValues, last = values[location] ||= [NaN, NaN, NaN, NaN]; // kept, not made per draw
if (last[0] === x && last[1] === y && last[2] === z && last[3] === w)
return;
last[0] = x, last[1] = y, last[2] = z, last[3] = w;
glContext.vertexAttrib4f(location, x, y, z, w);
}
// textures in 3D shrink into the distance far more than sprites do, so the pass samples them through their mipmaps;
// a sampler sets the filtering for the 3D pass only and leaves the engine's textures as they are for 2D; they are
// made as textures need them, and all dropped when the settings change
function render3DUpdateSamplers()
{
const r = render3D, key = tilesPixelated + ' ' + r.anisotropy;
if (r.samplerKey === key) return;
r.samplerKey = key;
for (const sampler of r.samplers.values())
glContext.deleteSampler(sampler); // the set being replaced, a lost context empties this first
r.samplers.clear();
}
// the sampler for a texture's wrap modes, smooth or hard edged, made the first time it is needed
function render3DSampler(wrap, pixelated)
{
const gl = glContext, r = render3D, [wrapS, wrapT] = glWrapModes(wrap);
const key = wrapS * 1e5 + wrapT * 2 + (pixelated ? 1 : 0); // the modes are 5 digit numbers
let sampler = r.samplers.get(key);
if (sampler) return sampler;
sampler = gl.createSampler();
const sharp = pixelated || tilesPixelated;
gl.samplerParameteri(sampler, gl.TEXTURE_MAG_FILTER, sharp ? gl.NEAREST : gl.LINEAR);
gl.samplerParameteri(sampler, gl.TEXTURE_MIN_FILTER, pixelated ? gl.NEAREST
: tilesPixelated ? gl.NEAREST_MIPMAP_LINEAR : gl.LINEAR_MIPMAP_LINEAR);
gl.samplerParameteri(sampler, gl.TEXTURE_WRAP_S, wrapS);
gl.samplerParameteri(sampler, gl.TEXTURE_WRAP_T, wrapT);
const anisotropy = gl.getExtension('EXT_texture_filter_anisotropic');
if (anisotropy && !pixelated)
{
const most = gl.getParameter(anisotropy.MAX_TEXTURE_MAX_ANISOTROPY_EXT);
gl.samplerParameterf(sampler, anisotropy.TEXTURE_MAX_ANISOTROPY_EXT, clamp(r.anisotropy, 1, most));
}
r.samplers.set(key, sampler);
return sampler;
}
// bind the texture of a tile or texture, white when there is none or it is not loaded, with the 3D sampler that
// matches its wrap mode; the first time a texture is used in 3D it gets its mipmaps; on unit 0, the color texture,
// or another unit, the material maps, after which unit 0 is active again
function render3DBindTexture(tileInfo, state=render3D, unit=0)
{
const gl = glContext, r = render3D;
const textureInfo = render3DTextureOf(tileInfo);
const texture = textureInfo?.glTexture || r.whiteTexture;
unit && gl.activeTexture(gl.TEXTURE0 + unit);
gl.bindTexture(gl.TEXTURE_2D, texture);
if (texture === r.whiteTexture || !r.mipmaps && !state.pixelated)
gl.bindSampler(unit, null); // the texture's own filtering, as in 2D; the white texel needs no mipmaps
// or anisotropy, and filtering it that way costs every untextured fragment
else
{
gl.bindSampler(unit, render3DSampler(textureInfo?.wrap, state.pixelated));
glUpdateMipmaps(texture); // drawn into since its mipmaps were made
if (!state.pixelated && !glMipmappedTextures.has(texture)) // a hard edged draw never reads them
{
glMipmappedTextures.add(texture); // the core makes them again when the texture changes
gl.generateMipmap(gl.TEXTURE_2D);
}
}
unit && gl.activeTexture(gl.TEXTURE0);
}
// the material's uniforms and maps for a draw: the normal map on unit 2 and the emissive map on unit 3, white when
// unused and bound only when they change, and the sky a reflection shows, the colors setSky was given or the
// ambient ones; with nothing set every part of it is skipped in the shader, and a map with no GL texture yet, or
// one freed, counts as none, since the white texture in its place would bend every normal or light the surface
function render3DSetMaterialUniforms(state)
{
const r = render3D, loaded = (map)=> render3DTextureOf(map)?.glTexture ? map : undefined;
const normalMap = state.normalScale ? loaded(state.normalMap) : undefined, emissiveMap = loaded(state.emissiveMap);
render3DUniform4f('materialParams', normalMap ? state.normalScale : 0, state.shininess, state.reflectivity, 0);
const ec = state.emissiveMapColor || WHITE;
emissiveMap ? render3DUniform4f('emissiveTint', ec.r, ec.g, ec.b, 1) : render3DUniform4f('emissiveTint', 0, 0, 0, 0);
render3DBindMap(2, normalMap, state);
render3DBindMap(3, emissiveMap, state);
if (state.reflectivity > 0)
{
const sky = r.sky && render3DSkyColors.get(r.sky), a = r.ambientColor, g = r.ambientGroundColor || a;
const top = sky ? sky[0] : a, bottom = sky ? sky[2] : g;
render3DUniform4f('skyTop', top.r, top.g, top.b, 1);
render3DUniform4f('skyBottom', bottom.r, bottom.g, bottom.b, 1);
sky ? render3DUniform4f('skyHorizon', sky[1].r, sky[1].g, sky[1].b, 1) :
render3DUniform4f('skyHorizon', (a.r + g.r) / 2, (a.g + g.g) / 2, (a.b + g.b) / 2, 1);
}
}
// what each material map unit has bound, index 2 and 3 the maps and 4 and 5 whether each is pixelated, forgotten at
// the start and end of each pass
let render3DBoundMaps = [];
// bind a material map to its unit, or white for none, only when it or its filtering changed since the last draw
function render3DBindMap(unit, map, state)
{
const bound = render3DBoundMaps, pixelated = !!map && state.pixelated;
if (bound[unit] === map && bound[unit + 2] === pixelated) return;
bound[unit] = map, bound[unit + 2] = pixelated;
render3DBindTexture(map, state, unit);
}
// send a vec4 uniform of the main shader only when its value changed since the last send
function render3DUniform4f(name, x, y, z, w)
{
const values = render3D.uniformValues, last = values[name] ||= [NaN, NaN, NaN, NaN]; // kept, not made per draw
if (last[0] === x && last[1] === y && last[2] === z && last[3] === w)
return;
last[0] = x, last[1] = y, last[2] = z, last[3] = w;
glContext.uniform4f(render3DUniform(name), x, y, z, w);
}
// send an int uniform of the main shader only when its value changed since the last send
function render3DUniform1i(name, x)
{
const values = render3D.uniformValues;
if (values[name] === x)
return;
values[name] = x;
glContext.uniform1i(render3DUniform(name), x);
}
// bind a vertex buffer and point the attributes at it
function render3DBindVertexBuffer(buffer)
{
const gl = glContext;
gl.bindBuffer(gl.ARRAY_BUFFER, buffer);
for (const a of RENDER3D_ATTRIBS)
gl.vertexAttribPointer(a[0], a[1], a[2], a[3], RENDER3D_VERTEX_BYTES, a[4]);
}
// a mesh's vertices and its triangle indices, ready for drawElements
function render3DBindMesh(mesh)
{
render3DBindVertexBuffer(mesh.buffer);
glContext.bindBuffer(glContext.ELEMENT_ARRAY_BUFFER, mesh.indexBuffer);
}
// the texture a draw samples: a tile's texture, a TextureInfo as it is, or undefined for white
function render3DTextureOf(tileInfo) { return tileInfo instanceof TileInfo ? tileInfo.textureInfo : tileInfo; }
// where a tile sits in its texture, pulled in slightly at the edges so neighbors do not bleed in
// the level's solid geometry in 3D, the height maps and voxel maps that objects with collideLevel collide with, as
// tileCollisionLayers is in 2D; each joins when made and leaves when destroyed
const render3DLevel = [];
// take one of the level's parts out of it, when it is destroyed
function render3DLevelLeave(o)
{
const i = render3DLevel.indexOf(o);
i >= 0 && render3DLevel.splice(i, 1);
}
// the level's parts are looked up in world space, so they stay upright and unscaled at the root
function render3DLevelAssertPlaced(o)
{
ASSERT(!o.parent && !o.rotation3D.lengthSquared() && o.scale3D.x === 1 && o.scale3D.y === 1 && o.scale3D.z === 1,
'a height map or voxel map stays upright and unscaled at the root, its lookups are in world space');
}
// this returns one shared object, so read it before calling again
const render3DTileUVRect = {x:0, y:0, w:1, h:1};
// the tiles of objects made from a whole TextureInfo, they cover all of it even after the texture is resized
const render3DWholeTiles = new WeakSet;
function render3DGetTileUVs(tileInfo)
{
// a headless tile has no texture, and a whole texture's tile covers it at any size
if (!(tileInfo instanceof TileInfo) || !tileInfo.textureInfo || render3DWholeTiles.has(tileInfo))
return RENDER3D_FULL_UV_RECT;
const inv = tileInfo.textureInfo.sizeInverse, rect = render3DTileUVRect;
const bleedX = inv.x * tileInfo.bleed, bleedY = inv.y * tileInfo.bleed;
rect.x = tileInfo.pos.x * inv.x + bleedX;
rect.y = tileInfo.pos.y * inv.y + bleedY;
rect.w = tileInfo.size.x * inv.x - 2*bleedX;
rect.h = tileInfo.size.y * inv.y - 2*bleedY;
return rect;
}
// set the per draw uniforms and gl state for a draw, in the shadow pass only the per draw attributes, the texture
// and the depth shader's cut
// tileInfo may be a TileInfo, a TextureInfo, or undefined for the white texture
// state is the plugin's current fields, or the captured state of a stream batch
function render3DSetDrawUniforms(matrix, tileInfo, tint, uvRect, state=render3D)
{
const gl = glContext, r = render3D;
// the per draw values are constant vertex attributes, a batch turns on a per instance array over them
uvRect ||= render3DGetTileUVs(tileInfo);
render3DDrawAttribs(matrix.m, tint, uvRect);
render3DBindTexture(tileInfo, state);
if (r.shadowPass)
{
// the shadow map needs only how to cut: by the alpha it blends with, or the texture's as an opaque draw
const cut = state.blend ? 1 : 0;
if (render3DShadowCut !== cut)
glContext.uniform1f(render3DUniform('cut', r.shadowShader), render3DShadowCut = cut);
return;
}
// the program: a Shader's own, compiled by its first draw, or the plugin's; switching sends the pass uniforms
const program = state.shader ? render3DShaderProgram(state.shader) : r.program;
program === r.currentProgram || render3DUseProgram(program);
// blending, matches the engine's 2D blend functions
if (state.blend)
{
gl.enable(gl.BLEND);
const destBlend = state.additive ? gl.ONE : gl.ONE_MINUS_SRC_ALPHA;
gl.blendFuncSeparate(gl.SRC_ALPHA, destBlend, gl.ONE, destBlend);
}
else
gl.disable(gl.BLEND);
// depth and culling
state.depthTest ? gl.enable(gl.DEPTH_TEST) : gl.disable(gl.DEPTH_TEST);
gl.depthMask(state.depthWrite);
state.cullBackFaces ? gl.enable(gl.CULL_FACE) : gl.disable(gl.CULL_FACE);
gl.frontFace(state.mirrored ? gl.CCW : gl.CW); // the pass's strips read clockwise, a mirror turns that around
// lights, fog and shadows are scene state read at draw time, sent only when they change
// the shader takes the way the sunlight travels, away from the sun
const s = r.sunDirection, sl = -(s.length() || 1), lc = r.sunColor, ac = r.ambientColor, fc = r.fogColor || canvasClearColor;
render3DUniform4f('lightDir', s.x / sl, s.y / sl, s.z / sl, state.lighting ? state.emissive : 1);
render3DUniform4f('lightColor', lc.r, lc.g, lc.b, state.specular);
render3DUniform4f('ambientFog', ac.r, ac.g, ac.b, r.fogEnd);
const gc = r.ambientGroundColor;
// its alpha says whether the ground color is on
gc ? render3DUniform4f('ambientGround', gc.r, gc.g, gc.b, 1) : render3DUniform4f('ambientGround', 0, 0, 0, 0);
render3DUniform4f('fogColor', fc.r, fc.g, fc.b, r.fogStart);
// how the fragment shader finishes: 1 drops see through texels and keeps the draw opaque,
// 0 blends them away instead, and -1 is additive, which has to fade into fog differently
const blendMode = state.blend ? (state.additive ? -1 : 0) : 1;
const receives = r.shadows && r.passIsDefault && state.receiveShadow ? 1 : 0;
render3DUniform4f('shadowParams', receives, r.shadowBias, r.shadowSoftness / r.shadowTextureSize, blendMode);
// a render target's texture holds premultiplied color, the blend writes it that way, so the shader undoes it
const textureInfo = render3DTextureOf(tileInfo);
render3DUniform1i('premultipliedTexture', +!!(textureInfo?.glTexture && glPremultipliedTextures.has(textureInfo.glTexture)));
render3DSetMaterialUniforms(state);
}
// the six flat sides of the camera's visible box, each as [x, y, z, w] facing inward
// a point is inside when x*px + y*py + z*pz + w is zero or more
function render3DFrustumPlanes(matrix)
{
const m = matrix.m, planes = [];
for (let i = 0; i < 3; ++i)
for (const sign of [1, -1])
{
const p = [m[3] + sign * m[i], m[7] + sign * m[4+i], m[11] + sign * m[8+i], m[15] + sign * m[12+i]];
const l = hypot(p[0], p[1], p[2]) || 1;
planes.push(p.map(v=> v / l));
}
return planes;
}
// the preRender hook, before gameRender: the layer under the 2D scene
function render3DPreRender()
{
const r = render3D;
editor3DCameraBegin(); // debug builds draw with the free camera or the 3D editor's, the game's is back after
r.updateMatrices();
r.shadowMapDrawn = false;
render3DRenderPass(false);
}
// the render hook, after gameRenderPost: the layer on top of the 2D scene
function render3DRender()
{
render3DRenderPass(true);
editor3DCameraEnd();
}
// one 3D pass for the objects of a layer: take over the gl state, draw the shadow map once a frame and the stages, hand
// the state back
// the layer matching render3D.renderAfter2D is the default and always runs, the other only when an object asks for it
function render3DRenderPass(after2D)
{
const gl = glContext, r = render3D;
if (!r.program || !glEnable) return; // headless, gl disabled, or context lost
render3DUpdateSamplers();
ASSERT(!r.fogEnd || r.fogStart < r.fogEnd, 'fogStart must be less than fogEnd');
ASSERT(!glRenderTarget, 'the 3D pass needs the canvas depth buffer, it can not draw into a render target');
const isDefault = after2D === !!r.renderAfter2D, objects = render3DLayerObjects(after2D);
if (!isDefault && !objects.length) return;
r.passIsDefault = isDefault;
// the 2D sprites drawn so far go under this layer, and a batch a plugin left pending before the layer under
// the 2D scene draws now, with the engine's own gl state, not after the pass with its own
glFlush();
// a previous frame that threw must not leave anything pending
r.streamCount = 0;
r.capture = r.transparentQueue = undefined;
render3DClearInstances();
// the Light3D objects, a directional one sends the direction toward it, from the origin, and a negative radius
// gathered before the gl state is taken over, so an assert here leaves nothing to hand back
const lights = render3DCollectLights();
r.lightCount = lights.length;
const positions = r.lightPositions, colors = r.lightColors;
lights.forEach((light, i)=>
{
const p = light.directional ? light.getWorldPos3D().normalize() : light.getWorldPos3D();
ASSERT(!light.directional || p.lengthSquared(),
'a directional light shines from its position toward the origin, so it cannot sit on the origin');
const c = light.color, k = i * 4;
positions[k] = p.x, positions[k+1] = p.y, positions[k+2] = p.z;
positions[k+3] = light.directional ? -1 : max(0, light.radius); // a negative radius marks a direction
colors[k] = c.r, colors[k+1] = c.g, colors[k+2] = c.b, colors[k+3] = c.a * light.intensity;
});
// take over the gl state
gl.bindVertexArray(r.vao);
// the leading repeat on every strip shifts the triangles by one, which flips
// which way they read, so tell WebGL that clockwise is the front here
gl.frontFace(gl.CW);
// every program's shadow sampler is on unit 1, where a 2D plugin like PostProcessPlugin or LightSystemPlugin
// may have left its own texture, which fails every draw; the shadow map goes back there even with shadows off
gl.activeTexture(gl.TEXTURE1);
gl.bindTexture(gl.TEXTURE_2D, r.shadowTexture || null);
// the material maps' units start white, a 2D plugin may have left its own textures there
render3DSetMapUnits(r.whiteTexture);
gl.depthMask(true);
gl.clear(gl.DEPTH_BUFFER_BIT);
r.isRendering = true;
try
{
// the shadow map from the light once a frame, then the stages sample it
if (r.shadows && !r.shadowMapDrawn)
{
render3DRenderShadowMap();
r.shadowMapDrawn = true;
}
// the camera's depth for post processing, from the default layer
r.depthTexture && isDefault && render3DRenderDepth();
render3DUseProgram(r.program); // after the shadow map, so the light matrix it sends is this frame's
r.renderStages(objects, isDefault);
}
finally
{
// hand the state back to the engine's 2D batching, even when a draw threw
r.isRendering = false;
r.currentProgram = undefined; // the engine's 2D program takes over below
r.streamCount = 0;
r.capture = r.transparentQueue = undefined;
gl.disable(gl.DEPTH_TEST);
gl.disable(gl.CULL_FACE);
gl.depthMask(true);
gl.frontFace(gl.CCW);
gl.bindSampler(0, null); // back to the textures' own filtering for 2D
render3DSetMapUnits(null); // the material maps leave no texture or sampler behind for 2D
if (glActiveTexture)
gl.bindTexture(gl.TEXTURE_2D, glActiveTexture);
// ARRAY_BUFFER is not part of VAO state in WebGL2, so bindVertexArray alone would not restore it
gl.bindBuffer(gl.ARRAY_BUFFER, glArrayBuffer);
glSetInstancedMode(true);
}
}
// put a texture on both material map units with no sampler, white at the start of the pass and none at its end, and
// forget what the map cache thought was bound; unit 0 is active after
function render3DSetMapUnits(texture)
{
const gl = glContext;
for (const unit of [2, 3])
{
gl.activeTexture(gl.TEXTURE0 + unit);
gl.bindTexture(gl.TEXTURE_2D, texture);
gl.bindSampler(unit, null);
}
gl.activeTexture(gl.TEXTURE0);
render3DBoundMaps = [];
}
// create the shadow map depth texture and framebuffer at a size, or keep them when the size matches
function render3DUpdateShadowMap(size)
{
const gl = glContext, r = render3D;
ASSERT(size > 0, 'shadowMapSize must be positive');
if (r.shadowTexture && r.shadowTextureSize === size) return;
r.shadowTexture && gl.deleteTexture(r.shadowTexture);
r.shadowFramebuffer && gl.deleteFramebuffer(r.shadowFramebuffer);
const texture = r.shadowTexture = gl.createTexture();
gl.activeTexture(gl.TEXTURE1);
gl.bindTexture(gl.TEXTURE_2D, texture);
gl.texImage2D(gl.TEXTURE_2D, 0, gl.DEPTH_COMPONENT24, size, size, 0, gl.DEPTH_COMPONENT, gl.UNSIGNED_INT, null);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.LINEAR); // smooth filtering softens shadow edges for free
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MAG_FILTER, gl.LINEAR);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_S, gl.CLAMP_TO_EDGE);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_T, gl.CLAMP_TO_EDGE);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_COMPARE_MODE, gl.COMPARE_REF_TO_TEXTURE);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_COMPARE_FUNC, gl.LEQUAL);
gl.activeTexture(gl.TEXTURE0);
const framebuffer = r.shadowFramebuffer = gl.createFramebuffer();
gl.bindFramebuffer(gl.FRAMEBUFFER, framebuffer);
gl.framebufferTexture2D(gl.FRAMEBUFFER, gl.DEPTH_ATTACHMENT, gl.TEXTURE_2D, texture, 0);
gl.drawBuffers([gl.NONE]); // depth only
gl.readBuffer(gl.NONE);
ASSERT(gl.checkFramebufferStatus(gl.FRAMEBUFFER) == gl.FRAMEBUFFER_COMPLETE,
'shadow map framebuffer is incomplete, try a smaller shadowMapSize');
gl.bindFramebuffer(gl.FRAMEBUFFER, null);
r.shadowTextureSize = size;
}
// draw the lit opaque casters from the light into the shadow map with the depth only shader
function render3DRenderShadowMap()
{
const gl = glContext, r = render3D;
render3DUpdateShadowMap(r.shadowMapSize | 0);
r.updateShadowMatrix();
// the map can not be read while it is drawn
gl.activeTexture(gl.TEXTURE1);
gl.bindTexture(gl.TEXTURE_2D, null);
gl.activeTexture(gl.TEXTURE0);
gl.bindFramebuffer(gl.FRAMEBUFFER, r.shadowFramebuffer);
gl.viewport(0, 0, r.shadowTextureSize, r.shadowTextureSize);
gl.clear(gl.DEPTH_BUFFER_BIT);
gl.useProgram(r.shadowShader);
gl.uniformMatrix4fv(render3DUniform('viewProj', r.shadowShader), false, r.shadowMatrix.m);
gl.enable(gl.DEPTH_TEST);
gl.depthMask(true);
gl.disable(gl.BLEND);
gl.disable(gl.CULL_FACE);
r.shadowPass = true;
try
{
// see through objects cast only when textured, their alpha cuts the shadow out
const casters = render3DLayerObjects(!!r.renderAfter2D).filter(o=>
o.castShadow && !o.additive && (!o.transparent || o.tileInfo));
render3DDrawObjects(casters);
r.onRenderOpaque?.();
r.flush();
render3DFlushInstances();
}
finally
{
// back to the frame with the map ready to sample
r.shadowPass = false;
gl.bindFramebuffer(gl.FRAMEBUFFER, null);
// backing store size, mainCanvasSize is css pixels
gl.viewport(0, 0, glCanvas.width, glCanvas.height);
gl.activeTexture(gl.TEXTURE1);
gl.bindTexture(gl.TEXTURE_2D, r.shadowTexture);
gl.activeTexture(gl.TEXTURE0);
}
}
// the camera's depth texture and its framebuffer at a size, made again when the canvas changes size; depth values
// are not filtered, so it is read texel by texel
function render3DUpdateCameraDepth(width, height)
{
const gl = glContext, r = render3D;
if (r.cameraDepthTexture && r.cameraDepthWidth === width && r.cameraDepthHeight === height) return;
r.cameraDepthTexture && gl.deleteTexture(r.cameraDepthTexture);
r.cameraDepthFramebuffer && gl.deleteFramebuffer(r.cameraDepthFramebuffer);
const texture = r.cameraDepthTexture = gl.createTexture();
gl.bindTexture(gl.TEXTURE_2D, texture);
gl.texImage2D(gl.TEXTURE_2D, 0, gl.DEPTH_COMPONENT24, width, height, 0, gl.DEPTH_COMPONENT, gl.UNSIGNED_INT, null);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.NEAREST);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MAG_FILTER, gl.NEAREST);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_S, gl.CLAMP_TO_EDGE);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_T, gl.CLAMP_TO_EDGE);
gl.bindTexture(gl.TEXTURE_2D, null);
const framebuffer = r.cameraDepthFramebuffer = gl.createFramebuffer();
gl.bindFramebuffer(gl.FRAMEBUFFER, framebuffer);
gl.framebufferTexture2D(gl.FRAMEBUFFER, gl.DEPTH_ATTACHMENT, gl.TEXTURE_2D, texture, 0);
gl.drawBuffers([gl.NONE]); // depth only
gl.readBuffer(gl.NONE);
ASSERT(gl.checkFramebufferStatus(gl.FRAMEBUFFER) == gl.FRAMEBUFFER_COMPLETE, 'camera depth framebuffer is incomplete');
gl.bindFramebuffer(gl.FRAMEBUFFER, null);
r.cameraDepthWidth = width, r.cameraDepthHeight = height;
}
// draw the camera's depth for post processing: the solid objects from the camera with the shadow map's depth only
// shader, into a texture the size of the canvas; what is see through is cut by its alpha as it is for shadows
function render3DRenderDepth()
{
const gl = glContext, r = render3D, width = glCanvas.width, height = glCanvas.height;
render3DUpdateCameraDepth(width, height);
gl.bindFramebuffer(gl.FRAMEBUFFER, r.cameraDepthFramebuffer);
gl.viewport(0, 0, width, height);
gl.clear(gl.DEPTH_BUFFER_BIT);
gl.useProgram(r.shadowShader);
gl.uniformMatrix4fv(render3DUniform('viewProj', r.shadowShader), false, r.viewProjection.m);
gl.enable(gl.DEPTH_TEST);
gl.depthMask(true);
gl.disable(gl.BLEND);
gl.disable(gl.CULL_FACE);
r.shadowPass = r.depthPass = true;
try
{
const solids = render3DLayerObjects(!!r.renderAfter2D).filter(o=> !o.additive && (!o.transparent || o.tileInfo));
render3DDrawObjects(solids);
r.onRenderOpaque?.();
r.flush();
render3DFlushInstances();
}
finally
{
r.shadowPass = r.depthPass = false;
gl.bindFramebuffer(gl.FRAMEBUFFER, null);
gl.viewport(0, 0, width, height);
}
}
///////////////////////////////////////////////////////////////////////////////
// Strips: every strip repeats its first point once at the start and its last
// point once at the end. Those repeats make flat triangles with no area, which
// are invisible, and they let one strip run straight into the next.
// An odd count gets one more repeat at the end. Triangles in a strip alternate
// which way they face, so keeping the count even keeps every strip facing out.
// make room in the stream for a strip of count vertices under the current state and texture, flushing a batch that
// differs first; returns the uv rect to map the vertices with, or undefined when nothing can be drawn
function render3DBeginStrip(count, tileInfo)
{
const r = render3D;
if (!render3DCanDraw()) return;
if (r.shadowPass && !r.lighting) return; // unlit things cast no shadow
ASSERT(count <= RENDER3D_MAX_STREAM_VERTS, 'strip is too large for the stream, bake it into a mesh');
if (count > RENDER3D_MAX_STREAM_VERTS) return;
const textureInfo = render3DTextureOf(tileInfo);
if (r.streamCount && (textureInfo !== r.streamTileInfo || render3DStateChanged(r.streamState)
|| r.streamCount + count > RENDER3D_MAX_STREAM_VERTS))
r.flush();
render3DFlushBeforeOverlay();
if (!r.streamCount)
r.streamState = render3DCaptureBatchState();
r.streamTileInfo = textureInfo;
return render3DGetTileUVs(tileInfo);
}
// a draw that is not depth tested goes over what is already drawn, so the batches drawn before it go first, or they
// would draw at the end of the stage and cover it whatever its render order; a stream open with the same state is
// drawn too, so each such draw splits the batches: one draw per object for meshes each with an overlay
function render3DFlushBeforeOverlay()
{
const r = render3D;
if (r.depthTest || r.shadowPass || !r.instanceMeshes.length) return;
r.flush();
render3DFlushInstances();
}
// upload a mesh that is new, changed, or from before the context was lost
function render3DMeshUpload(mesh)
{
if (!mesh.buffer || mesh.dirty || mesh.contextGeneration !== render3D.contextGeneration)
mesh.upload();
}
// an object's size3D in the world, grown by its scale and its parents', the size its sprite is drawn at and that
// collecting, picking and collision measure it at
function render3DWorldSize(o, m)
{
const s = o.size3D;
return vec3(s.x * hypot(m[0], m[1], m[2]), s.y * hypot(m[4], m[5], m[6]), s.z * hypot(m[8], m[9], m[10]));
}
// the surface normal of a height function at x, z, from the slope across a cell each way, clamped to the edges so a
// border sample leans the same as its neighbor; buildGrid and HeightMap both light their slopes by it, and it makes
// one vector, a big terrain has millions of vertices
function render3DSlopeNormal(heightFunction, x, z, ex, ez, halfX, halfZ)
{
const x0 = max(x - ex, -halfX), x1 = min(x + ex, halfX), z0 = max(z - ez, -halfZ), z1 = min(z + ez, halfZ);
const dx = (heightFunction(x1, z) - heightFunction(x0, z)) / (x1 - x0 || 1);
const dz = (heightFunction(x, z1) - heightFunction(x, z0)) / (z1 - z0 || 1);
const s = 1 / hypot(dx, 1, dz);
return vec3(-dx * s, s, -dz * s);
}
// the half axes of a camera facing quad of a size turned by an angle, right then up, in one shared array
// so a particle costs no vectors; read it before calling again
const render3DBillboardAxesScratch = new Float64Array(6);
function render3DBillboardAxes(size, angle, upright)
{
const r = render3D.cameraRight, u = render3D.cameraUp;
let rx = r.x, ry = r.y, rz = r.z, ux = u.x, uy = u.y, uz = u.z;
if (upright)
{
// an upright quad stands on world up and only turns to face the camera
const l = hypot(rx, rz); // a rolled camera has no flat right
rx = l ? rx / l : 1, ry = 0, rz = l ? rz / l : 0;
ux = 0, uy = 1, uz = 0;
}
const c = cos(angle), s = sin(angle), w = size.x / 2, h = size.y / 2, a = render3DBillboardAxesScratch;
a[0] = (rx * c + ux * s) * w, a[1] = (ry * c + uy * s) * w, a[2] = (rz * c + uz * s) * w;
a[3] = (ux * c - rx * s) * h, a[4] = (uy * c - ry * s) * h, a[5] = (uz * c - rz * s) * h;
return a;
}
// the four corners of a camera facing quad in strip order
function render3DBillboardCorners(pos, size, angle, upright)
{
const a = render3DBillboardAxes(size, angle, upright);
const rx = a[0], ry = a[1], rz = a[2], ux = a[3], uy = a[4], uz = a[5];
return [
vec3(pos.x - rx + ux, pos.y - ry + uy, pos.z - rz + uz), vec3(pos.x - rx - ux, pos.y - ry - uy, pos.z - rz - uz),
vec3(pos.x + rx + ux, pos.y + ry + uy, pos.z + rz + uz), vec3(pos.x + rx - ux, pos.y + ry - uy, pos.z + rz - uz)];
}
// how many vertices a strip of n points takes with its repeats, and which point vertex k of it is
function render3DStripCount(n) { return n + 2 + (n & 1); }
function render3DStripIndex(k, n) { return k < 1 ? 0 : k <= n ? k - 1 : n - 1; }
// walk a strip's vertices with the repeats applied, calling back with (point, normal, uv, color)
// normals, uvs and colors may be one value for all points, an array per point, or undefined
function render3DForEachStripVertex(points, normals, uvs, colors, callback)
{
ASSERT(isArray(points) && points.length > 2, 'strip needs at least 3 points');
const n = points.length, count = render3DStripCount(n);
const normalArray = isArray(normals), uvArray = isArray(uvs), colorArray = isArray(colors);
for (let k = 0; k < count; ++k)
{
const i = render3DStripIndex(k, n);
callback(points[i],
normalArray ? normals[i] : normals || RENDER3D_DEFAULT_NORMAL,
uvArray ? uvs[i] : uvs || RENDER3D_DEFAULT_UV,
colorArray ? colors[i] : colors || WHITE);
}
}
// write one vertex into a packed buffer at float index j
function render3DWriteVertex(floats, ints, j, x, y, z, n, u, v, rgba)
{
floats[j] = x; floats[j+1] = y; floats[j+2] = z;
floats[j+3] = n.x; floats[j+4] = n.y; floats[j+5] = n.z;
floats[j+6] = u; floats[j+7] = v;
ints[j+8] = rgba;
}
// turn every triangle of an index list the other way round, in place: the authoring form reads counter clockwise
// from the front and the pass draws clockwise, as a strip's triangles come out after its leading repeat
function render3DFlipTriangles(indices)
{
for (let t = 0; t < indices.length; t += 3)
{
const b = indices[t+1];
indices[t+1] = indices[t+2], indices[t+2] = b;
}
return indices;
}
// the triangles of a strip of count entries as an index list, given which vertex each entry maps to and which place
// it is at: the strip's triangle i is (i-2, i-1, i), its odd ones read the other way as the GPU reads a strip, and a
// triangle with two corners in one place has no area, it is a join between pieces or a sliver at a pole, and is left out
function render3DStripTriangles(count, remap, place)
{
const indices = [];
for (let i = 2; i < count; ++i)
{
const a = i & 1 ? i - 1 : i - 2, b = i & 1 ? i - 2 : i - 1;
if (place[a] != place[b] && place[b] != place[i] && place[a] != place[i])
indices.push(remap[a], remap[b], remap[i]);
}
return indices;
}
// a mesh's packed vertex data for the GPU, one vertex per entry of a layout, which is the strip index of each,
// written into data when given, the buffer an earlier call returned for the same layout; it measures the mesh's
// radius and box as it goes, as computeRadius does, over the vertices once instead of every strip entry
function render3DMeshVertexData(mesh, vertices, data=new ArrayBuffer(vertices.length * RENDER3D_VERTEX_BYTES))
{
const count = vertices.length;
const floats = new Float32Array(data), ints = new Uint32Array(data);
let r = 0, x0 = Infinity, y0 = Infinity, z0 = Infinity, x1 = -Infinity, y1 = -Infinity, z1 = -Infinity;
for (let j = 0; j < count; ++j)
{
// a hand built mesh may leave normals, uvs and colors empty
const i = vertices[j], p = mesh.points[i], uv = mesh.uvs[i] || RENDER3D_DEFAULT_UV;
const x = p.x, y = p.y, z = p.z;
render3DWriteVertex(floats, ints, j * RENDER3D_VERTEX_FLOATS, x, y, z,
mesh.normals[i] || RENDER3D_DEFAULT_NORMAL, uv.x, uv.y, (mesh.colors[i] || WHITE).rgbaInt());
r = max(r, x*x + y*y + z*z);
x0 = min(x0, x), y0 = min(y0, y), z0 = min(z0, z);
x1 = max(x1, x), y1 = max(y1, y), z1 = max(z1, z);
}
mesh.radius = r ** .5;
mesh.bounds = count ? {min: vec3(x0, y0, z0), max: vec3(x1, y1, z1)} : {min: vec3(), max: vec3()};
return data;
}
// reorder a convex polygon's points, counter clockwise from outside, into one triangle strip
function render3DPolygonStrip(points)
{
const strip = [points[0]];
for (let i = 1, j = points.length - 1; i <= j; ++i, --j)
{
strip.push(points[i]);
if (i !== j)
strip.push(points[j]);
}
return strip;
}
// turn every triangle of a mesh the other way round, the normals left alone: an index list reads each one in the
// other order, and a strip gets one extra point at each end, which flips every triangle and keeps the count even
function render3DFlipWinding(mesh)
{
if (mesh.indices)
return void render3DFlipTriangles(mesh.indices);
for (const key of ['points', 'normals', 'uvs', 'colors'])
{
const a = mesh[key];
if (a.length)
a.unshift(a[0]), a.push(a[a.length - 1]);
}
mesh.vertexKeys = undefined;
}
///////////////////////////////////////////////////////////////////////////////
// frees the GPU buffer of a mesh that is garbage collected without dispose, some time after it goes; it holds the
// buffer and its context, never the mesh, or the mesh could not be collected, and dispose unregisters the mesh
const render3DMeshBuffers = typeof FinalizationRegistry == 'undefined' ? undefined :
new FinalizationRegistry(({buffer, indexBuffer, generation})=>
{
if (generation !== render3D?.contextGeneration || !glContext) return;
glContext.deleteBuffer(buffer);
glContext.deleteBuffer(indexBuffer);
});
// the place a point is at, to a hundred thousandth, which smooth normals are summed by
function render3DPlaceKey(p) { return `${round(p.x * 1e5)},${round(p.y * 1e5)},${round(p.z * 1e5)}`; }
// add a face normal to the sum at a triangle's corner a, weighted by the angle there, so a cube corner averages its
// three faces evenly however it is cut into triangles
function render3DAddCornerNormal(sums, a, b, c, normal)
{
const u = b.subtract(a), v = c.subtract(a);
const angle = Math.acos(clamp(u.dot(v) / (u.length() * v.length() || 1), -1, 1));
const k = render3DPlaceKey(a);
sums.set(k, (sums.get(k) || vec3()).add(normal.scale(angle)));
}
/**
* Mesh - Triangles with positions, normals, uvs and colors, uploaded once and drawn by matrix
* - Build with addStrip, addQuad, combine or the shape builders, then render each frame
* - Its back faces are skipped unless doubleSided is set, which the open builders like buildGrid do for you
* - Two forms: a triangle strip, what the builders make, or an indexed list of triangles over their own vertices,
* what addTriangles and the model loaders make; upload sends the GPU an indexed list either way, see getTriangles,
* so a strip's joins between its pieces cost nothing to draw, and toIndexed turns a strip mesh into the list form
* - The GPU buffer is created lazily on first render and dropped by dispose, or freed once the mesh is garbage
* collected, so dispose is only needed to free it right away, like for a mesh rebuilt often
* @memberof Render3D
* @example
* const mesh = buildLathe([[0, -1], [1, 0], [0, 1]], 4); // octahedron
* mesh.render(buildMatrix(vec3(0, 1, 0)), undefined, RED);
*/
class Mesh
{
/** Create an empty mesh */
constructor()
{
/** @property {Array<Vector3>} - Vertex positions, in strip order or one per vertex of an indexed mesh
* @type {Array<Vector3>} */
this.points = [];
/** @property {Array<Vector3>} - Vertex normals
* @type {Array<Vector3>} */
this.normals = [];
/** @property {Array<Vector2>} - Vertex texture coords, 0-1 across the tile
* @type {Array<Vector2>} */
this.uvs = [];
/** @property {Array<Color>} - Vertex colors
* @type {Array<Color>} */
this.colors = [];
/** @property {WebGLBuffer|undefined} - GPU vertex buffer, created by upload
* @type {WebGLBuffer|undefined} */
this.buffer = undefined;
/** @property {WebGLBuffer|undefined} - GPU index buffer, the triangles, created by upload
* @type {WebGLBuffer|undefined} */
this.indexBuffer = undefined;
/** @property {number} - Indices in the GPU index buffer, three per triangle */
this.bufferCount = 0;
this.indexType = 0; // gl.UNSIGNED_SHORT, or UNSIGNED_INT past 65535 vertices
/** @property {boolean} - The mesh changed and needs uploading again, set it yourself if you edit the arrays */
this.dirty = false;
/** @property {boolean|undefined} - Draw every use of this mesh in the opaque stage as one instanced call,
* undefined follows render3D.instancing
* @type {boolean|undefined} */
this.instanced = undefined;
/** @property {boolean} - Draw both sides, each lit as the side that is seen; off skips the faces pointing away,
* which is faster and right for closed shapes, the open builders like buildGrid and buildRibbon turn it on */
this.doubleSided = false;
/** @property {boolean} - The values change often but the shape never does, for a water surface or a cloth: set
* once, the mesh keeps its GPU layout and a dirty upload only rewrites the vertices into the buffer it has;
* the strip must keep the same points in the same order, a new point count asserts; the layout is decided by
* the first upload, so strip entries equal then stay one vertex and triangles with no area then stay dropped,
* set vertexKeys or give it distinct values at the start, not a flat grid of one color or points all in one place */
this.dynamicDraw = false;
/** @property {Array<number>|undefined} - The mesh as an indexed triangle list instead of a strip: the arrays
* hold each vertex once and this says how they join, three vertex numbers per triangle, counter clockwise seen
* from the front like a strip's first triangle; addTriangles and the loaders fill it, toIndexed turns a strip
* mesh into this form
* @type {Array<number>|undefined} */
this.indices = undefined;
/** @property {Int32Array|undefined} - Which strip entries are one vertex, set by a builder that knows, one
* whole number per entry with equal numbers meaning the same vertex; upload skips its search for them, then
* drops the keys, since an edit after that may tell the entries apart; adding geometry or recomputing normals
* drops them too
* @type {Int32Array|undefined} */
this.vertexKeys = undefined;
/** @type {{vertices: Array<number>, pointCount: number, data: ArrayBuffer}|undefined} */
// the strip index of each GPU vertex, the point count and packed data of the last upload, for a dynamicDraw mesh
this.vertexLayout = undefined;
this.instanceCount = 0; // draws waiting in this mesh's batch, with their values, texture and draw state
/** @type {Float32Array|undefined} */
this.instanceData = undefined;
/** @property {number} - Bounding sphere radius around the origin, for culling and picking, computed by upload */
this.radius = 0;
/** @property {{min: Vector3, max: Vector3}|undefined} - Bounding box, for picking, measured with the radius
* @type {{min: Vector3, max: Vector3}|undefined} */
this.bounds = undefined;
this.contextGeneration = 0; // the context the buffer belongs to, see render3D.contextGeneration
}
/** Number of vertices in the mesh
* @return {number} */
get vertexCount() { return this.points.length; }
/** Add a triangle strip, joined to the previous one by invisible flat triangles so one mesh holds many strips
* - Strip order: the first three points make a triangle, then each point makes another with the two before it
* - List the first three points counter clockwise as seen from the front, or the face points away
* and may vanish when back faces are culled
* @param {Array<Vector3>} points - Strip order
* @param {Vector3|Array<Vector3>} [normals] - One for all or one per point, default up
* @param {Vector2|Array<Vector2>} [uvs] - One for all or one per point, default zero
* @param {Color|Array<Color>} [colors] - One for all or one per point, default white
* @return {Mesh} */
addStrip(points, normals, uvs, colors)
{
if (this.indices)
{
// an indexed mesh takes the strip as the triangles it makes
const part = new Mesh().addStrip(points, normals, uvs, colors).toIndexed();
return this.addTriangles(part.points, part.indices, part.normals, part.uvs, part.colors);
}
render3DForEachStripVertex(points, normals, uvs, colors, (p, n, uv, c)=>
{
this.points.push(p);
this.normals.push(n);
this.uvs.push(uv);
this.colors.push(c);
});
this.vertexKeys = undefined; // the new entries have no keys
this.dirty = true;
return this;
}
/** Add triangles over their own vertices, the indexed form a model file comes in
* - The mesh becomes indexed: a strip mesh is turned into triangles first, and strips added later join as triangles
* - List each triangle counter clockwise as seen from the front, like a strip's first triangle
* @param {Array<Vector3>} points - Each vertex once
* @param {Array<number>} indices - Three vertex numbers per triangle, into points
* @param {Vector3|Array<Vector3>} [normals] - One for all or one per point, default up
* @param {Vector2|Array<Vector2>} [uvs] - One for all or one per point, default zero
* @param {Color|Array<Color>} [colors] - One for all or one per point, default white
* @return {Mesh} */
addTriangles(points, indices, normals, uvs, colors)
{
ASSERT(isArray(points) && isArray(indices) && indices.length % 3 === 0,
'addTriangles takes points and three indices per triangle');
ASSERT(indices.every(i=> i >= 0 && i < points.length && i % 1 === 0), 'an index points past the vertices given');
this.toIndexed();
const offset = this.points.length, normalArray = isArray(normals), uvArray = isArray(uvs), colorArray = isArray(colors);
for (let i = 0; i < points.length; ++i)
{
this.points.push(points[i]);
this.normals.push(normalArray ? normals[i] : normals || RENDER3D_DEFAULT_NORMAL);
this.uvs.push(uvArray ? uvs[i] : uvs || RENDER3D_DEFAULT_UV);
this.colors.push(colorArray ? colors[i] : colors || WHITE);
}
for (const i of indices)
this.indices.push(i + offset);
this.dirty = true;
return this;
}
/** Turn a strip mesh into the indexed form, each distinct vertex once and the real triangles over them, in place
* - An indexed mesh is left as it is; the builders make strips and a loader makes this, and either draws the same
* @return {Mesh} */
toIndexed()
{
if (this.indices) return this;
const {vertices, indices} = this.getTriangles();
this.points = vertices.map(i=> this.points[i]);
this.normals = vertices.map(i=> this.normals[i] || RENDER3D_DEFAULT_NORMAL);
this.uvs = vertices.map(i=> this.uvs[i] || RENDER3D_DEFAULT_UV);
this.colors = vertices.map(i=> this.colors[i] || WHITE);
// the list upload sends reads clockwise, the pass draws it that way; the authoring form is counter clockwise
this.indices = render3DFlipTriangles(indices);
this.vertexKeys = undefined;
this.dirty = true;
return this;
}
/** Add a flat quad from four corners in loop order, counter clockwise seen from the front, a is the top left of the texture
* @param {Vector3} a
* @param {Vector3} b
* @param {Vector3} c
* @param {Vector3} d
* @param {Color|Array<Color>} [color] - One for all or one per corner
* @param {Array<Vector2>} [uvs] - One per corner, default across the tile
* @return {Mesh} */
addQuad(a, b, c, d, color, uvs)
{
return this.addStrip(render3DQuadStrip(a, b, c, d), render3DFaceNormal(a, b, c, d),
uvs ? render3DQuadValues(uvs) : RENDER3D_QUAD_UVS, render3DQuadValues(color));
}
/** Append another mesh transformed by a matrix, for building one shape out of several
* @param {Mesh} mesh
* @param {Matrix4|Vector3} [matrix] - Transform, or just a position to move it to
* @param {Color} [color] - Multiplies the appended vertex colors
* @return {Mesh} */
combine(mesh, matrix=RENDER3D_IDENTITY, color=WHITE)
{
matrix = render3DMatrix(matrix); // most parts only need moving into place
const normalMatrix = render3DNormalMatrix(matrix), mirrors = render3DMirrors(matrix);
let part = mesh, order;
if (this.indices || mesh.indices)
{
// one of them is indexed, so both are: the part as a copy if it is a strip
this.toIndexed();
part = mesh.indices ? mesh : new Mesh().combine(mesh).toIndexed();
const offset = this.points.length, indices = part.indices;
// the count read once, a mesh combined with itself grows as it is read; a mirror turns every triangle the
// other way round
for (let t = 0, n = indices.length; t < n; t += 3)
this.indices.push(indices[t] + offset, indices[t + (mirrors ? 2 : 1)] + offset,
indices[t + (mirrors ? 1 : 2)] + offset);
}
else if (mirrors && part.points.length)
{
// a strip reads the other way round with one more point at each end, as render3DFlipWinding does
const last = part.points.length - 1;
order = [0, ...part.points.keys(), last];
}
for (let j = 0, count = order ? order.length : part.points.length; j < count; ++j)
{
const i = order ? order[j] : j;
this.points.push(matrix.transformPoint(part.points[i]));
this.normals.push(normalMatrix.transformDirection(part.normals[i] || RENDER3D_DEFAULT_NORMAL).normalize());
this.uvs.push((part.uvs[i] || RENDER3D_DEFAULT_UV).copy());
this.colors.push((part.colors[i] || WHITE).multiply(color));
}
this.doubleSided ||= mesh.doubleSided; // an open part leaves the whole mesh open
this.vertexKeys = undefined; // the new entries have no keys
this.dirty = true;
return this;
}
/** Returns a new mesh: this one and its mirror image across the plane through the origin facing axis
* - For modeling half a shape against that plane, a part that crosses it overlaps its image
* @param {Vector3} [axis] - Faces the mirror plane, vec3(1,0,0) mirrors across x
* @return {Mesh} */
mirror(axis=vec3(1, 0, 0))
{
ASSERT(isVector3(axis) && axis.lengthSquared() > 0, 'mirror needs an axis');
const n = axis.normalize(), a = -2 * n.x, b = -2 * n.y, c = -2 * n.z;
const reflect = new Matrix4([1 + a * n.x, b * n.x, c * n.x, 0, a * n.y, 1 + b * n.y, c * n.y, 0,
a * n.z, b * n.z, 1 + c * n.z, 0, 0, 0, 0, 1]);
return new Mesh().combine(this).combine(this, reflect); // combine turns the image's faces the right way out
}
/** Returns a new mesh of count copies of this one, each turned further around an axis through the origin
* @param {number} count - Copies, spaced evenly around the whole turn
* @param {Vector3} [axis] - Up by default
* @return {Mesh} */
spin(count, axis=vec3(0, 1, 0))
{
ASSERT(count >= 1 && count % 1 === 0, 'spin count must be a whole number, 1 or more');
ASSERT(isVector3(axis) && axis.lengthSquared() > 0, 'spin needs an axis');
const mesh = new Mesh, unit = axis.normalize();
for (let i = 0; i < count; ++i)
mesh.combine(this, render3DAxisRotation(unit, i / count * 2 * PI));
return mesh;
}
/** Returns a new mesh of everything in this mesh or the other, see subtract
* @param {Mesh} mesh - Closed, as the builders make them apart from the open ones like buildGrid
* @param {Matrix4|Vector3} [matrix] - Places the other mesh, or just a position to move it to
* @return {Mesh} */
union(mesh, matrix) { return render3DMeshCSG(this, mesh, matrix, 0); }
/** Returns a new mesh of this one with the other cut out of it, CSG with BSP trees
* - Both must be closed, every edge shared by two triangles, as the builders make them apart from the open
* ones like buildGrid and buildRibbon; the result is closed and indexed, and neither mesh changes
* - The faces a cut makes come from the other mesh's surface, turned to face out, with its normals, uvs and
* colors, so a smooth cylinder drills a round hole
* - Parts that overlap must be joined with union to be one solid, not with combine, mirror or spin, which
* leave them overlapping, and CSG then gives a wrong shape
* - Cuts split the triangles near them, so the result has more: a few thousand triangles take tens to a few
* hundred milliseconds, so build shapes this way at load time, not every frame; joining several cutters
* with union and cutting once is quicker than cutting with each in turn
* - Details closer than about 1e-4 are made one, so build a very small part larger and scale it after
* @param {Mesh} mesh - Closed, as the builders make them apart from the open ones like buildGrid
* @param {Matrix4|Vector3} [matrix] - Places the other mesh, or just a position to move it to
* @return {Mesh}
* @example
* const wall = buildBox(vec3(4, 3, .5)).subtract(buildBox(vec3(1, 2, 1)), vec3(0, -.5, 0)); // a doorway */
subtract(mesh, matrix) { return render3DMeshCSG(this, mesh, matrix, 1); }
/** Returns a new mesh of only what is in both this mesh and the other, see subtract
* @param {Mesh} mesh - Closed, as the builders make them apart from the open ones like buildGrid
* @param {Matrix4|Vector3} [matrix] - Places the other mesh, or just a position to move it to
* @return {Mesh} */
intersect(mesh, matrix) { return render3DMeshCSG(this, mesh, matrix, 2); }
/** Scale every uv, so a whole texture repeats across the mesh when its TextureInfo wraps
* @param {Vector2|number} scale - Repeats across and up, a number for both
* @return {Mesh} */
scaleUVs(scale)
{
const s = render3DSize2(scale);
// new vectors, builders share uv objects between faces
this.uvs = this.uvs.map(uv=> vec2(uv.x * s.x, uv.y * s.y));
this.dirty = true;
return this;
}
/** Move, turn or scale every vertex in place, normals follow along
* @param {Matrix4|Vector3} matrix - Transform, or just an offset to move by
* @return {Mesh} */
transform(matrix)
{
matrix = render3DMatrix(matrix);
const normalMatrix = render3DNormalMatrix(matrix);
for (let i = 0; i < this.points.length; ++i)
{
this.points[i] = matrix.transformPoint(this.points[i]);
// a mesh built by hand may have no normals yet, and then there is nothing to turn
this.normals[i] &&= normalMatrix.transformDirection(this.normals[i]).normalize();
}
render3DMirrors(matrix) && render3DFlipWinding(this); // a mirror would leave the faces pointing in
this.dirty = true;
return this;
}
/** Turn the mesh inside out so it is lit and drawn from within, for rooms and domes
* @return {Mesh} */
flipNormals()
{
render3DFlipWinding(this);
this.normals = this.normals.map(n=> n.scale(-1));
this.dirty = true;
return this;
}
/** Set every vertex color
* @param {Color} color
* @return {Mesh} */
setColor(color)
{
// one per point, not one per color already there, so a mesh built by hand with no
// colors gets them instead of quietly staying white
this.colors = this.points.map(()=> color);
this.dirty = true;
return this;
}
/** Measure the axis aligned box around the vertices
* @return {{min: Vector3, max: Vector3}} */
getBounds()
{
if (!this.points.length)
return {min: vec3(), max: vec3()};
const lo = vec3(Infinity), hi = vec3(-Infinity);
for (const p of this.points)
{
lo.x = min(lo.x, p.x); lo.y = min(lo.y, p.y); lo.z = min(lo.z, p.z);
hi.x = max(hi.x, p.x); hi.y = max(hi.y, p.y); hi.z = max(hi.z, p.z);
}
return {min: lo, max: hi};
}
/** Move the mesh so the center of its bounds is on the origin
* @return {Mesh} */
center()
{
const bounds = this.getBounds();
return this.transform(bounds.min.add(bounds.max).scale(-.5));
}
/** Scale the mesh evenly so its largest extent is a size, for loaded models of unknown units
* @param {number} [size]
* @return {Mesh} */
fit(size=1)
{
const bounds = this.getBounds();
const extent = bounds.max.subtract(bounds.min);
const scale = size / (max(extent.x, extent.y, extent.z) || 1);
return this.transform(Matrix4.scaling(vec3(scale)));
}
/** Measure the bounding sphere around the origin into radius, called by upload
* @return {number} */
computeRadius()
{
let r = 0;
for (const p of this.points)
r = max(r, p.lengthSquared());
this.bounds = this.getBounds(); // measured with it, a pick tests a mesh's box after its sphere
return this.radius = r ** .5;
}
/** Derive normals from the triangles, of the strip or of the index list
* @param {boolean} [smooth] - Round the lighting across faces instead of giving each face a hard edge; flat
* normals on an indexed mesh give every corner its own vertex
* @return {Mesh} */
computeNormals(smooth=false)
{
if (this.indices)
{
// the triangles are listed: smooth normals add up around each position, weighted by the corner angle
// like the strip's, so vertices split apart at one place smooth back together and a mesh can go flat and
// smooth again; flat ones need a vertex per corner, so the vertices are split up first
if (!smooth)
{
const split = (a)=> this.indices.map(i=> a[i]);
this.points = split(this.points), this.normals = split(this.normals);
this.uvs = split(this.uvs), this.colors = split(this.colors);
this.indices = this.indices.map((_, i)=> i);
}
const points = this.points, indices = this.indices, sums = new Map;
const normals = points.map(()=> RENDER3D_DEFAULT_NORMAL);
for (let t = 0; t < indices.length; t += 3)
{
const a = points[indices[t]], b = points[indices[t+1]], c = points[indices[t+2]];
const cross = b.subtract(a).cross(c.subtract(a));
if (!cross.lengthSquared()) continue;
const normal = cross.normalize();
if (!smooth)
{
// its own three corners
normals[indices[t]] = normals[indices[t+1]] = normals[indices[t+2]] = normal;
continue;
}
for (let j = 0; j < 3; ++j)
render3DAddCornerNormal(sums, points[indices[t+j]], points[indices[t+(j+1)%3]],
points[indices[t+(j+2)%3]], normal);
}
this.normals = !smooth ? normals : points.map(p=>
{
const s = sums.get(render3DPlaceKey(p));
return s && s.lengthSquared() ? s.normalize() : RENDER3D_DEFAULT_NORMAL;
});
this.dirty = true;
return this;
}
// the outward normal of each triangle in the strip
const points = this.points, n = points.length;
const faceNormals = [];
for (let i = 0; i + 2 < n; ++i)
{
const a = points[i], b = points[i+1], c = points[i+2];
const normal = b.subtract(a).cross(c.subtract(a));
// triangles in a strip alternate which way they wind, so every other one is flipped back
// a zero normal means a flat triangle joining two strips, so skip it
faceNormals.push(normal.lengthSquared() ? normal.normalize(i & 1 ? 1 : -1) : undefined);
}
// then hand those to the vertices, shared around a position or kept per face
const normals = points.map(()=> RENDER3D_DEFAULT_NORMAL);
if (smooth)
{
// add up the face normals meeting at each position, each weighted by its corner angle so a cube
// corner averages its three faces evenly however the strips cut them, then normalize
const sums = new Map;
faceNormals.forEach((f, i)=> f && [0, 1, 2].forEach(j=>
render3DAddCornerNormal(sums, points[i+j], points[i+(j+1)%3], points[i+(j+2)%3], f)));
for (let i = 0; i < n; ++i)
normals[i] = (sums.get(render3DPlaceKey(points[i])) || RENDER3D_DEFAULT_NORMAL).normalize();
}
else
// every triangle writes its own three corners, so the only vertices left with the default
// are the repeats at the ends of a strip, which no triangle with any area uses
faceNormals.forEach((f, i)=> f && (normals[i] = normals[i+1] = normals[i+2] = f));
this.normals = normals;
this.vertexKeys = undefined; // flat normals tell entries at one place apart
this.dirty = true;
return this;
}
/** Pack the vertices and create the GPU buffer, called automatically by render
* @return {Mesh} */
upload()
{
// the packing below measures the radius and box, with nothing to pack to they are measured here
if (!render3D?.program || !glContext) return this.computeRadius(), this;
const gl = glContext, layout = this.vertexLayout;
// no layout when dynamicDraw was turned on after an upload, the next upload makes one
if (this.dynamicDraw && layout && this.buffer && this.contextGeneration === render3D.contextGeneration)
{
// the layout of the last upload stands, only the values are written again into the buffer it has,
// packed into the same memory each time so a mesh uploaded every frame makes no garbage
ASSERT(layout.pointCount === this.points.length,
'a dynamicDraw mesh keeps its shape, the same points in the same order; ' +
'for a new shape make a new mesh or turn dynamicDraw off', this.points.length);
if (layout.pointCount === this.points.length)
{
gl.bindBuffer(gl.ARRAY_BUFFER, this.buffer);
gl.bufferSubData(gl.ARRAY_BUFFER, 0, render3DMeshVertexData(this, layout.vertices, layout.data));
gl.bindBuffer(gl.ARRAY_BUFFER, glArrayBuffer);
this.dirty = false;
return this;
}
}
this.dispose();
const {vertices, indices} = this.getTriangles(), count = vertices.length, wide = count > 65535;
const data = render3DMeshVertexData(this, vertices);
this.vertexLayout = this.dynamicDraw ? {vertices, pointCount: this.points.length, data} : undefined;
this.vertexKeys = undefined; // used once: an edit after this may tell entries apart
this.buffer = gl.createBuffer();
this.indexBuffer = gl.createBuffer();
this.bufferCount = indices.length;
this.indexType = wide ? gl.UNSIGNED_INT : gl.UNSIGNED_SHORT;
this.dirty = false;
gl.bindBuffer(gl.ARRAY_BUFFER, this.buffer);
gl.bufferData(gl.ARRAY_BUFFER, data, this.dynamicDraw ? gl.DYNAMIC_DRAW : gl.STATIC_DRAW);
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER, this.indexBuffer);
gl.bufferData(gl.ELEMENT_ARRAY_BUFFER, wide ? new Uint32Array(indices) : new Uint16Array(indices), gl.STATIC_DRAW);
this.contextGeneration = render3D.contextGeneration;
const buffers = {buffer: this.buffer, indexBuffer: this.indexBuffer, generation: this.contextGeneration};
render3DMeshBuffers?.register(this, buffers, this);
gl.bindBuffer(gl.ARRAY_BUFFER, glArrayBuffer); // the engine's 2D batch writes through this binding
return this;
}
/** The mesh as an indexed triangle list, what upload sends to the GPU: the strip's real triangles over its
* distinct vertices, the joins between its pieces dropped and every triangle facing the way it did in the strip
* - Vertices are compared to a millionth, so two at one place with the same normal, uv and color are one
* @return {{vertices: Array<number>, indices: Array<number>}} - vertices are strip indices, one per distinct
* vertex; indices are the triangles, three per triangle, into vertices */
getTriangles()
{
const count = this.points.length, vertices = [];
if (this.indices)
{
// already a list: every vertex as it is, and the triangles read the way the pass draws, clockwise
for (let i = 0; i < count; ++i)
vertices.push(i);
return {vertices, indices: render3DFlipTriangles(this.indices.slice())};
}
const remap = new Int32Array(count), place = new Int32Array(count), keys = this.vertexKeys;
if (keys && keys.length === count)
{
// a builder said which entries are one vertex: the first entry with a key stands for every entry with it,
// and is their place, so nothing is searched
const first = new Int32Array(count).fill(-1);
for (let i = 0; i < count; ++i)
{
const key = keys[i];
ASSERT(key >= 0 && key < count, 'vertexKeys must be whole numbers below the entry count', key);
const j = first[key];
if (j < 0)
first[key] = i, remap[i] = vertices.length, vertices.push(i);
else
remap[i] = remap[j];
place[i] = first[key];
}
return {vertices, indices: render3DStripTriangles(count, remap, place)};
}
// each vertex as nine whole numbers, its values in millionths and its color, so vertices hash and compare as
// numbers; a hash table over all nine finds the distinct vertices and one over the first three the places,
// each slot holding a vertex index plus one and a taken slot moving on to the next
const values = new Float64Array(count * 9);
let size = 1;
while (size < count * 2) size *= 2;
const mask = size - 1, seen = new Int32Array(size), places = new Int32Array(size);
const mix = (h, v)=> Math.imul(h ^ v, 0x9e3779b1) >>> 0;
for (let i = 0; i < count; ++i)
{
const p = this.points[i], n = this.normals[i] || RENDER3D_DEFAULT_NORMAL;
const uv = this.uvs[i] || RENDER3D_DEFAULT_UV, k = i * 9;
const x = values[k] = round(p.x * 1e6), y = values[k+1] = round(p.y * 1e6), z = values[k+2] = round(p.z * 1e6);
values[k+3] = round(n.x * 1e6), values[k+4] = round(n.y * 1e6), values[k+5] = round(n.z * 1e6);
values[k+6] = round(uv.x * 1e6), values[k+7] = round(uv.y * 1e6);
values[k+8] = (this.colors[i] || WHITE).rgbaInt();
let h = mix(mix(mix(0x811c9dc5, x), y), z);
// the place, shared with a vertex there that has another normal or uv, as at a lathe's poles
for (let slot = h & mask;; slot = (slot + 1) & mask)
{
const o = places[slot] - 1;
if (o < 0) { places[slot] = i + 1, place[i] = i; break; }
if (values[o*9] === x && values[o*9+1] === y && values[o*9+2] === z) { place[i] = o; break; }
}
// the whole vertex
for (let m = 3; m < 9; ++m)
h = mix(h, values[k+m]);
for (let slot = h & mask;; slot = (slot + 1) & mask)
{
const o = seen[slot] - 1;
if (o < 0) { seen[slot] = i + 1, remap[i] = vertices.length, vertices.push(i); break; }
let same = true;
for (let m = 0; same && m < 9; ++m)
same = values[o*9+m] === values[k+m];
if (same) { remap[i] = remap[o]; break; }
}
}
return {vertices, indices: render3DStripTriangles(count, remap, place)};
}
/** Draw the mesh with the current draw state, batched with its other uses in the opaque stage
* @param {Matrix4|Vector3} [matrix] - Object transform, or just a position to draw it at
* @param {TileInfo|TextureInfo} [tileInfo] - Texture, mesh uvs map across the tile or the whole texture
* @param {Color} [color] - Tint */
render(matrix, tileInfo, color) { render3D?.drawMesh(this, matrix, tileInfo, color); }
/** Delete the GPU buffer now, the CPU arrays stay so the mesh can be rendered again
* - Optional, the buffer is freed anyway once the mesh is garbage collected, this frees it right away */
dispose()
{
if (!this.buffer) return;
render3DMeshBuffers?.unregister(this); // freed here, so not again when the mesh is collected
// a buffer from a context that was lost is gone with it, and the new context refuses to delete it
if (this.contextGeneration === render3D?.contextGeneration)
glContext?.deleteBuffer(this.buffer), glContext?.deleteBuffer(this.indexBuffer);
this.buffer = this.indexBuffer = undefined;
this.bufferCount = 0;
}
}
///////////////////////////////////////////////////////////////////////////////
// Shape builders, all centered on the origin so buildMatrix does placement
// Sizes are full sizes like buildBox and the 2D drawCircle, sides go around an axis and rings along it
/**
* Spin a flat outline around the Y axis to make a round shape, like a vase or a wheel
* - profile is [[radius, y], ...] from bottom to top
* - A profile that ends where it starts makes a closed ring like a donut
* - An end left open, with a radius and no cap, makes the mesh doubleSided so its inside shows
* - An end on the axis smooth shades as a round pole like a sphere's when its segment is within 45 degrees of
* level, and as a point like a cone's tip when it is steeper
* @param {Array<Array<number>>} profile
* @param {number} [sides] - Around the axis
* @param {boolean} [smooth] - Defaults to render3D.smoothShading
* @param {boolean} [capped] - Close the ends that have a radius with flat discs
* @return {Mesh}
* @memberof Render3D
* @example
* const vase = buildLathe([[0, -1], [.8, -.3], [.9, .2], [.4, .6], [0, 1]], 12);
*/
function buildLathe(profile, sides=16, smooth=render3D?.smoothShading, capped=true)
{
ASSERT(isArray(profile) && profile.length > 1, 'lathe profile needs at least 2 points');
sides |= 0;
ASSERT(sides > 2, 'lathe needs at least 3 sides');
const mesh = new Mesh;
const rings = profile.length;
const point = (i, a)=> vec3(sin(a) * profile[i][0], profile[i][1], cos(a) * profile[i][0]);
// 2D outward normal of each profile segment, in (radius, y) space
const segmentNormal = (i)=>
{
const [r0, y0] = profile[i], [r1, y1] = profile[i+1];
const n = vec2(y1 - y0, r0 - r1);
return n.length() ? n.normalize() : vec2(1, 0);
};
// vertex normal: average of the adjacent segment normals, across the seam when the profile is closed,
// and a closed profile needs no caps
const closed = rings > 2 && abs(profile[0][0] - profile[rings-1][0]) < 1e-9 &&
abs(profile[0][1] - profile[rings-1][1]) < 1e-9;
const segmentLength = (i)=> hypot(profile[i+1][0] - profile[i][0], profile[i+1][1] - profile[i][1]);
const vertexNormal = (i)=>
{
// an open end on the axis is a pole and points along it, like a sphere's, when the surface there is
// within 45 degrees of level; a steeper one is a point like a cone's tip and takes its side's normal
if (!closed && (!i || i == rings - 1) && abs(profile[i][0]) < 1e-9)
{
const up = i ? 1 : -1;
if (segmentNormal(i ? i - 1 : 0).y * up > Math.SQRT1_2 - 1e-9)
return vec2(0, up);
}
// otherwise the neighbors weighted by their length, so a short band does not tilt a long wall
let n = vec2();
const add = (s)=> n = n.add(segmentNormal(s).scale(segmentLength(s)));
if (i > 0) add(i - 1);
else if (closed) add(rings - 2);
if (i < rings - 1) add(i);
else if (closed) add(0);
return n.length() ? n.normalize() : vec2(1, 0);
};
const normal3D = (n, a)=> vec3(sin(a) * n.x, n.y, cos(a) * n.x);
// v runs along the profile by arc length
const lengths = [0];
for (let i = 1; i < rings; ++i)
lengths[i] = lengths[i-1] + hypot(profile[i][0] - profile[i-1][0], profile[i][1] - profile[i-1][1]);
const total = lengths[rings - 1] || 1;
const v = (i)=> 1 - lengths[i] / total;
for (let i = 0; i + 1 < rings; ++i)
{
if (smooth)
{
// one ribbon around the ring pair, top point then bottom point per column
const points = [], normals = [], uvs = [];
const n0 = vertexNormal(i), n1 = vertexNormal(i + 1);
// a point on the axis is one per column, each drawn by the face beside it, so its normal turns half
// a side toward the middle of that face; a pole's points along the axis and does not turn
const half = PI / sides;
const turn1 = abs(profile[i + 1][0]) < 1e-9 ? -half : 0, turn0 = abs(profile[i][0]) < 1e-9 ? half : 0;
for (let j = 0; j <= sides; ++j)
{
const a = j / sides * 2 * PI, u = j / sides;
points.push(point(i + 1, a), point(i, a));
normals.push(normal3D(n1, a + turn1), normal3D(n0, a + turn0));
uvs.push(vec2(u, v(i + 1)), vec2(u, v(i)));
}
mesh.addStrip(points, normals, uvs);
}
else
{
// one quad per side with its face normal
const n = segmentNormal(i);
for (let j = 0; j < sides; ++j)
{
const a0 = j / sides * 2 * PI, a1 = (j + 1) / sides * 2 * PI;
const u0 = j / sides, u1 = (j + 1) / sides;
mesh.addStrip(
[point(i + 1, a0), point(i, a0), point(i + 1, a1), point(i, a1)],
normal3D(n, (a0 + a1) / 2),
[vec2(u0, v(i + 1)), vec2(u0, v(i)), vec2(u1, v(i + 1)), vec2(u1, v(i))]);
}
}
}
// flat discs close the ends that have a radius, a hard edge even when the sides are smooth
if (capped && !closed)
for (const [i, up] of /** @type {Array<[number, boolean]>} */ ([[0, false], [rings - 1, true]]))
{
if (abs(profile[i][0]) < 1e-9) continue; // a pole has no cap
const points = [], uvs = [];
for (let j = 0; j < sides; ++j)
{
const a = (up ? j : -j) / sides * 2 * PI; // counter clockwise seen from outside
points.push(point(i, a));
uvs.push(vec2(sin(a) * .5 + .5, cos(a) * .5 + .5));
}
mesh.addStrip(render3DPolygonStrip(points), vec3(0, up ? 1 : -1, 0), render3DPolygonStrip(uvs));
}
// an end left open shows the inside, so it is seen from both sides
mesh.doubleSided = !closed && !capped && (abs(profile[0][0]) > 1e-9 || abs(profile[rings-1][0]) > 1e-9);
return mesh;
}
/**
* Build a sphere centered on the origin
* @param {number} [size] - Diameter
* @param {number} [sides] - Around
* @param {number} [rings] - Top to bottom
* @param {boolean} [smooth] - Defaults to render3D.smoothShading
* @return {Mesh}
* @memberof Render3D
*/
function buildSphere(size=1, sides=16, rings=8, smooth=render3D?.smoothShading)
{
ASSERT(rings > 1, 'sphere needs at least 2 rings');
const profile = [];
for (let i = 0; i <= rings; ++i)
{
const a = i / rings * PI - PI/2;
profile.push([cos(a) * size / 2, sin(a) * size / 2]);
}
return buildLathe(profile, sides, smooth);
}
// a box with its edges cut by a bevel of size t: each face shrunk by t, a strip along each edge around a quarter
// circle, and an eighth of a sphere at each corner; one segment makes them flat, a chamfer
function render3DBevelBox(half, t, segments, faces)
{
const mesh = new Mesh, inner = half.subtract(vec3(t)), n = max(1, segments | 0);
// a triangle facing out, since the box is convex around the origin, flat shaded or with the normals of the
// round, and uvs from the face it faces most, as a plain box maps that face
const triangle = (a, b, c, na, nb, nc)=>
{
let normal = b.subtract(a).cross(c.subtract(a));
if (normal.lengthSquared() < 1e-20) return; // an edge or face with no size
if (normal.dot(a.add(b).add(c)) < 0)
[b, c, nb, nc, normal] = [c, b, nc, nb, normal.scale(-1)];
normal = normal.normalize();
let face = faces[0];
for (const f of faces)
if (f[0].dot(normal) > face[0].dot(normal))
face = f;
const [, r, u] = face, hr = abs(half.dot(r)), hu = abs(half.dot(u));
const uv = (p)=> vec2(.5 + p.dot(r) / (2 * hr), .5 - p.dot(u) / (2 * hu));
mesh.addStrip([a, b, c], n > 1 && na ? [na, nb, nc] : normal, [uv(a), uv(b), uv(c)]);
};
// the faces, shrunk by the bevel
for (const [normal, r, u] of faces)
{
const [a, b, c, d] = render3DQuadAxes(normal.multiply(half), r.multiply(inner), u.multiply(inner));
triangle(a, b, c);
triangle(c, b, d);
}
// the edges, each a strip around a quarter circle from one face to the next
const axes = [vec3(1, 0, 0), vec3(0, 1, 0), vec3(0, 0, 1)];
for (let k = 0; k < 3; ++k)
for (const si of [-1, 1])
for (const sj of [-1, 1])
{
const n1 = axes[(k + 1) % 3].scale(si), n2 = axes[(k + 2) % 3].scale(sj);
const middle = n1.multiply(inner).add(n2.multiply(inner)), along = axes[k].multiply(inner);
const start = middle.subtract(along), end = middle.add(along);
const dir = (m)=> n1.scale(cos(m / n * PI / 2)).add(n2.scale(sin(m / n * PI / 2)));
for (let m = 0; m < n; ++m)
{
const d0 = dir(m), d1 = dir(m + 1);
const a = start.add(d0.scale(t)), b = end.add(d0.scale(t));
const c = start.add(d1.scale(t)), d = end.add(d1.scale(t));
triangle(a, b, c, d0, d0, d1);
triangle(c, b, d, d1, d0, d1);
}
}
// the corners, an eighth of a sphere in rows from one face's axis down to the edge between the other two
for (const sx of [-1, 1])
for (const sy of [-1, 1])
for (const sz of [-1, 1])
{
const nx = vec3(sx, 0, 0), ny = vec3(0, sy, 0), nz = vec3(0, 0, sz), corner = inner.multiply(vec3(sx, sy, sz));
const dir = (i, j)=>
{
const polar = i / n * PI / 2, around = i ? j / i * PI / 2 : 0;
return nz.scale(cos(polar)).add(nx.scale(cos(around) * sin(polar))).add(ny.scale(sin(around) * sin(polar)));
};
const point = (i, j)=> corner.add(dir(i, j).scale(t));
for (let i = 0; i < n; ++i)
{
for (let j = 0; j <= i; ++j)
triangle(point(i, j), point(i + 1, j), point(i + 1, j + 1), dir(i, j), dir(i + 1, j), dir(i + 1, j + 1));
for (let j = 0; j < i; ++j)
triangle(point(i, j), point(i + 1, j + 1), point(i, j + 1), dir(i, j), dir(i + 1, j + 1), dir(i, j + 1));
}
}
return mesh;
}
/**
* Build a box centered on the origin, six flat faces with uvs covering each face
* - bevel cuts its edges and corners: 1 segment is a flat chamfer, more round them, and the biggest bevel, half
* the smallest side, rounds a cube into a ball
* @param {Vector3|number} [size] - Full size, a number for a cube
* @param {number} [bevel] - Size of the cut on each edge, clamped to half the smallest side
* @param {number} [bevelSegments] - Steps around each edge, 1 for a flat chamfer
* @return {Mesh}
* @memberof Render3D
*/
function buildBox(size=1, bevel=0, bevelSegments=1)
{
ASSERT(isNumber(bevel) && bevel >= 0, 'bevel must be a number, 0 or more');
const half = render3DSize3(size).scale(.5);
// each face: normal, right axis, up axis (right cross up = normal)
const faces = [
[vec3(0, 0, 1), vec3(1, 0, 0), vec3(0, 1, 0)],
[vec3(0, 0, -1), vec3(-1, 0, 0), vec3(0, 1, 0)],
[vec3(1, 0, 0), vec3(0, 0, -1), vec3(0, 1, 0)],
[vec3(-1, 0, 0), vec3(0, 0, 1), vec3(0, 1, 0)],
[vec3(0, 1, 0), vec3(1, 0, 0), vec3(0, 0, -1)],
[vec3(0, -1, 0), vec3(1, 0, 0), vec3(0, 0, 1)],
];
const t = min(bevel, half.x, half.y, half.z);
if (t > 0)
return render3DBevelBox(half, t, bevelSegments, faces);
const mesh = new Mesh;
for (const [n, r, u] of faces)
{
const center = n.multiply(half);
const right = r.multiply(half), up = u.multiply(half);
mesh.addStrip(render3DQuadAxes(center, right, up), n, RENDER3D_QUAD_UVS);
}
return mesh;
}
/**
* Build a heightfield grid in the XZ plane centered on the origin
* - smooth rounds the lighting across cells and colors each corner
* - flat lights and colors each cell on its own, so a checkerboard stays crisp
* - doubleSided, a sheet seen from both sides; turn it off for ground only ever seen from above
* - One cell is a plain square, render3D.planeMesh and planeMeshDoubleSided are shared ones
* @param {Vector2|number} [size] - World size along X and Z, a number for a square
* @param {Vector2|number} [segments] - Cells along X and Z, a number for both
* @param {Color|function(number, number): Color} [color] - One Color for the whole grid, or (x, z) => Color
* @param {function(number, number): number} [heightFunction] - (x, z) => y, default flat
* @param {boolean} [smooth] - Defaults to render3D.smoothShading with a heightFunction; a flat grid is flat shaded,
* since its light is even anyway and smoothing would only blend its cell colors; pass smooth to blend a gradient
* @return {Mesh}
* @memberof Render3D
* @example
* const ground = buildGrid(vec2(20), 10, (x, z)=> (floor(x / 2) + floor(z / 2)) & 1 ? GRAY : WHITE); // 2 unit checks
*/
function buildGrid(size=vec2(1), segments=1, color, heightFunction, smooth=heightFunction && render3D?.smoothShading)
{
heightFunction ||= ()=> 0;
size = render3DSize2(size);
segments = render3DSize2(segments);
ASSERT(segments.x > 0 && segments.y > 0 && segments.x % 1 === 0 && segments.y % 1 === 0,
'grid segments must be whole numbers above zero');
const mesh = new Mesh;
const segmentsX = segments.x, segmentsZ = segments.y;
const cellX = size.x / segmentsX, cellZ = size.y / segmentsZ;
const halfX = size.x / 2, halfZ = size.y / 2, ex = cellX / 2, ez = cellZ / 2;
const px = (i)=> i * cellX - halfX, pz = (j)=> j * cellZ - halfZ;
const colorAt = /** @type {function(number, number): Color} */ (color);
const cellColor = (i, j)=> !color ? WHITE : isColor(color) ? /** @type {Color} */ (color) : colorAt(px(i), pz(j));
// a big terrain has millions of vertices, so each one is made once, shared by the rows above and below it
const row = (j)=>
{
const points = [], normals = [], uvs = [], colors = [], z = pz(j);
for (let i = 0; i <= segmentsX; ++i)
{
const x = px(i);
points.push(vec3(x, heightFunction(x, z), z));
uvs.push(vec2(i / segmentsX, j / segmentsZ));
if (!smooth) continue;
normals.push(render3DSlopeNormal(heightFunction, x, z, ex, ez, halfX, halfZ));
colors.push(cellColor(i, j));
}
return {points, normals, uvs, colors};
};
let above = row(0);
for (let j = 0; j < segmentsZ; ++j)
{
const below = row(j + 1);
if (smooth)
{
// one ribbon per row with vertex normals from the slope
const points = [], normals = [], uvs = [], colors = [];
for (let i = 0; i <= segmentsX; ++i)
{
points.push(above.points[i], below.points[i]);
normals.push(above.normals[i], below.normals[i]);
uvs.push(above.uvs[i], below.uvs[i]);
colors.push(above.colors[i], below.colors[i]);
}
mesh.addStrip(points, normals, uvs, colors);
}
else
{
// one quad per cell with its face normal and one color sampled at its center
for (let i = 0; i < segmentsX; ++i)
mesh.addQuad(above.points[i], below.points[i], below.points[i+1], above.points[i+1], cellColor(i + .5, j + .5),
[above.uvs[i], below.uvs[i], below.uvs[i+1], above.uvs[i+1]]);
}
above = below;
}
if (smooth)
{
// the grid knows which strip entries are one vertex, each shared by the rows above and below it and by the
// repeats at the ends of its ribbons, so the upload of a big terrain skips searching millions of entries
const n = 2 * (segmentsX + 1) + 2, keys = mesh.vertexKeys = new Int32Array(mesh.points.length);
const id = (i, j)=> j * (segmentsX + 1) + i;
for (let j = 0; j < segmentsZ; ++j)
{
const start = j * n;
keys[start] = id(0, j); // the leading repeat
for (let i = 0; i <= segmentsX; ++i)
keys[start + 1 + 2*i] = id(i, j), keys[start + 2 + 2*i] = id(i, j + 1);
keys[start + n - 1] = id(segmentsX, j + 1); // the trailing repeat
}
}
mesh.doubleSided = true; // a sheet, seen from both sides; terrain seen only from above can turn it off
return mesh;
}
/**
* Build a sky dome: a sphere colored by direction, wound to be seen from inside
* - set it as render3D.sky and the pass draws it around the camera behind everything
* @param {Color} [topColor] - Straight up
* @param {Color} [horizonColor] - Level with the camera
* @param {Color} [bottomColor] - Straight down, what a camera looking at the ground sees past its edge; defaults to the
* horizon color
* @param {number} [sides] - Around
* @param {number} [rings] - Top to bottom
* @return {Mesh}
* @memberof Render3D
*/
function buildSky(topColor=hsl(.6, .8, .55), horizonColor=hsl(.6, 1, .9), bottomColor=horizonColor, sides=16, rings=8)
{
// a sphere turned inside out so it is seen from within, each point colored by how high it is
const mesh = buildSphere(2, sides, rings, true).flipNormals();
mesh.colors = mesh.points.map(p=> p.y < 0 ? horizonColor.lerp(bottomColor, -p.y) : horizonColor.lerp(topColor, p.y));
render3DSkyColors.set(mesh, [topColor.copy(), horizonColor.copy(), bottomColor.copy()]);
return mesh;
}
// the top, horizon and bottom colors of each sky dome buildSky made, which a reflection shows while that dome is
// render3D.sky, whether setSky set it or the game did
const render3DSkyColors = new WeakMap;
///////////////////////////////////////////////////////////////////////////////
/**
* EngineObject3D - An EngineObject with a 3D transform and a mesh
* - Set pos3D, rotation3D and scale3D instead of the 2D pos, size and angle
* - Gets update, children, timers, destroy and renderOrder from EngineObject
* - velocity3D is added to pos3D each frame, slowed by damping, and render3D.gravity pulls it once it has a mass
* - Objects face -Z, the same way the camera does, so lookAt turns them to face a point
* - The 2D pos and velocity are still there but nothing draws them
* - These inherited fields are 2D only and do nothing here: angle, angleVelocity, additiveColor, drawSize and mirror;
* damping, angleDamping, clampSpeed, friction and groundObject work as in 2D, on velocity3D and angleVelocity3D
* - The inherited shader works here as in 2D, and with emissive at 1 its snippet does its own lighting
* - Set sync2D for a 2D game with 3D looks, pos and angle then drive pos3D and rotation3D,
* which is the one way those 2D fields reach a 3D object
* - setCollision takes the same flags as in 2D, but the solid collision happens in 3D against size3D
* - The solid box turns with rotation3D, so a turned wall or a ramp collides as it looks; resting on one no steeper
* than groundAngle stands there
* - Its tile and raycast halves are 2D only so they default off here, and a child sits solid collision out
* - A sync2D object collides in 2D instead, which needs the 2D size set as well as size3D
* - setMesh swaps the mesh and frees the old one, for text and terrain that get built again
* - addChild attaches the 3D transform, and pos3D becomes an offset from the parent; attach keeps the child where
* it is and works the offset out, and removeChild leaves it where it was in the world
* - The 2D offset arguments of addChild do nothing here, set the child's pos3D
* @extends EngineObject
* @memberof Render3D
* @example
* class Spinner extends EngineObject3D
* {
* constructor(pos) { super(pos, buildBox(), undefined, RED); }
* update() { this.rotation3D.y += .02; }
* }
*/
class EngineObject3D extends EngineObject
{
/** Create a 3D object and add it to the object list
* @param {Vector3} [pos3D] - World space position
* @param {Mesh} [mesh] - Mesh to draw, undefined draws nothing
* @param {TileInfo|TextureInfo} [tileInfo] - Texture, mesh uvs map across the tile; a whole TextureInfo becomes
* the tile that covers it
* @param {Color} [color] - Tint */
constructor(pos3D=vec3(), mesh, tileInfo, color=WHITE)
{
ASSERT(!tileInfo || tileInfo instanceof TileInfo || tileInfo instanceof TextureInfo,
'tileInfo must be a TileInfo or TextureInfo, it comes before color');
// a whole texture is stored as the tile that covers it, with no padding or bleed to trim
// the edges, so this is always a TileInfo like the 2D one and the object stays an EngineObject
if (tileInfo instanceof TextureInfo)
render3DWholeTiles.add(tileInfo = new TileInfo(vec2(), tileInfo.size, tileInfo, 0, 0));
// the 2D pos starts where the object is, so turning on sync2D keeps it there
super(vec2(pos3D.x, pos3D.y), vec2(), tileInfo, 0, color);
ASSERT(isVector3(pos3D), 'pos3D must be a vec3');
ASSERT(!mesh || mesh instanceof Mesh, 'mesh must be a Mesh or undefined');
this.mass = 0; // static: no 2D physics, and no 3D gravity until a mass is set
/** @property {Vector3} - World space position, local to the parent when attached to an EngineObject3D */
this.pos3D = pos3D.copy();
/** @property {Vector3} - Rotation vec3(pitch, yaw, roll) in radians, local to the parent when attached to an
* EngineObject3D */
this.rotation3D = vec3();
/** @property {Vector3} - Scale, local to the parent when attached to an EngineObject3D */
this.scale3D = vec3(1);
/** @property {Vector3} - Added to pos3D each frame by the engine before update, like the 2D velocity, no super
* call needed; damping and render3D.gravity act on it once the object has a mass */
this.velocity3D = vec3();
/** @property {Vector3} - Added to rotation3D each frame by the engine before update, slowed by angleDamping */
this.angleVelocity3D = vec3();
/** @property {Mesh|undefined} - Mesh to draw
* @type {Mesh|undefined} */
this.mesh = mesh;
/** @property {Vector3} - Size for solid collision and the collect and callback helpers, and of the sprite when
* there is a tileInfo and no mesh; starts at the size of the mesh's box, or 1 with no mesh, and setMesh leaves
* it as it is; the box is centered on pos3D, so center() a mesh whose origin is not its middle, like a model
* standing on its feet, or set size3D; scale3D and any parent's scale grow it, so drawing and picking agree */
// a shared mesh measured since it last changed is not walked again for each object made from it
const bounds = mesh && mesh.points.length ? !mesh.dirty && mesh.bounds || mesh.getBounds() : undefined;
this.size3D = bounds ? bounds.max.subtract(bounds.min) : vec3(1);
/** @property {number} - Diameter of a soft shadow drawn under the object on render3D.softShadowHeight, 0 for
* none; scale3D and a parent's scale grow it, so set it once for the unscaled object */
this.softShadow = 0;
/** @property {boolean} - A sprite stands on world up instead of tilting toward the camera */
this.upright = false;
/** @property {boolean} - Keep this object's texture pixels hard edged, for pixel art that should not blur or bleed */
this.pixelated = false;
/** @property {boolean} - Copy the 2D pos and angle into pos3D and rotation3D each frame, for 2D games with 3D
* looks; set mass to use 2D physics, and pos3D.z stays yours to set or move with velocity3D.z */
this.sync2D = false;
/** @property {boolean} - Draw in the transparent stage, blended and sorted far to near with depth writes off;
* on for a sprite */
this.transparent = !mesh && !!tileInfo;
/** @property {boolean} - Additive blending, in the transparent stage */
this.additive = false;
/** @property {number} - How much it lights itself: 0 is lit as normal, 1 is its own color with no shading, for
* lamps and glowing things, between is partly self lit, and above 1 is brighter than its color, for bloom */
this.emissive = 0;
/** @property {number} - Strength of the highlight where the sun and the Light3D objects reflect, 0 is none and
* 1 adds a light's full color at its brightest; shininess sets its size */
this.specular = 0;
/** @property {number} - The highlight's exponent, how small and sharp it is: 4 is broad like rubber, 16 the
* default, 100 sharp like polished metal; shows only with specular above 0 */
this.shininess = 16;
/** @property {TextureInfo|undefined} - A normal map that bends the surface at each texel so it catches the
* light like bumps and grooves, green pointing up the image as OpenGL and glTF have it; read at the color
* texture's coordinates, see normalMapFromHeight to make one in code
* @type {TextureInfo|undefined} */
this.normalMap = undefined;
/** @property {number} - How strongly the normal map bends the surface, 0 turns it off, as glTF's scale */
this.normalScale = 1;
/** @property {number} - How much it reflects the sky, 0 none and 1 a mirror of it; the edges seen at a
* glancing angle reflect more either way, as water and glass do */
this.reflectivity = 0;
/** @property {TextureInfo|undefined} - A texture of where it glows, added on top of the lit surface so it
* shows in the dark, like lit windows; read at the color texture's coordinates
* @type {TextureInfo|undefined} */
this.emissiveMap = undefined;
/** @property {Color} - Multiplies the emissive map, as glTF's emissiveFactor */
this.emissiveMapColor = WHITE;
/** @property {boolean} - Draw into the shadow map when render3D.shadows is on; sprites and cut out textures
* cast their outline, an object faded below half its alpha casts nothing, a see through one casts only when
* textured, and additive objects never cast */
this.castShadow = true;
/** @property {boolean} - Collide as the sphere that fits size3D instead of as the size3D box, so it rolls
* around corners */
this.collideAsSphere3D = false;
/** @property {number} - The steepest slope it stands on, in radians from level, PI/4 by default: resting on
* a solid within this of flat sets groundObject and holds it still, steeper it slides down */
this.groundAngle = PI / 4;
/** @property {boolean} - Darkened by the shadow map when render3D.shadows is on */
this.receiveShadow = true;
/** @property {boolean|undefined} - Draw this object over the 2D scene, undefined uses render3D.renderAfter2D
* @type {boolean|undefined} */
this.renderAfter2D = undefined;
/** @property {Matrix4|undefined} - The transform from its parent, used in place of pos3D, rotation3D and
* scale3D when set, for one they cannot hold like a glTF pose with shear; read every frame it is set
* @type {Matrix4|undefined} */
this.localMatrix = undefined;
// the world transform, kept up to date by render3DObjectMatrix; getMatrix returns a copy
this.worldMatrix = new Matrix4;
this.matrixBuilt = new Float64Array(9).fill(NaN); // the position, rotation and scale it was built from
this.matrixVersion = 0; // counts the rebuilds, so a child knows when its parent's changed
/** @type {EngineObject3D|undefined} */
this.matrixParent = undefined; // the parent it was built under, and that parent's version then
this.matrixParentVersion = 0;
this.movePass = engineObjectsUpdateCount; // the engine pass a child last moved in, so a refresh is not a step
}
/** Move by the 3D velocities and push out of solids, called automatically each frame before update, like the 2D physics
* - update runs once every object has moved and collided, so bounce off anything else there, it lands before the draw
* - Override this and call super to change how the object moves itself
* - A sync2D object runs the 2D physics as well, and collides there instead */
updatePhysics()
{
// a sync2D object collides in 2D, which measures the 2D size, and that starts at zero on a 3D object
ASSERT(!this.sync2D || !this.collideSolidObjects || (this.size.x && this.size.y),
'a sync2D object collides in 2D, so give it a 2D size as well as a size3D', this.size);
if (this.sync2D)
super.updatePhysics();
ASSERT(isNumber(this.groundAngle) && this.groundAngle >= 0 && this.groundAngle < PI / 2,
'groundAngle must be 0 to less than PI/2, a slope from level', this.groundAngle);
// what it stands on is found again each frame, by the level and by the solids it rests on; a sync2D
// object's is the 2D physics'
const ground = this.groundObject;
this.sync2D || (this.groundObject = undefined);
if (this.clampSpeed && !this.sync2D && (this.collideSolidObjects || this.collideLevel && this.mass))
{
// each axis within objectMaxSpeed, as in 2D, so a fast object does not pass through a thin wall; only
// for what collides, anything else moves as fast as it is told
const v = this.velocity3D, s = objectMaxSpeed;
v.x = clamp(v.x, -s, s), v.y = clamp(v.y, -s, s), v.z = clamp(v.z, -s, s);
}
// a moving object keeps out of the level, the height maps and voxel maps, from where it was before it moved
const oldPos = this.collideLevel && this.mass && !this.sync2D ? this.pos3D.copy() : undefined;
render3DMove(this);
if (ground && this.mass && !this.sync2D)
{
// sliding on what it stood on slows by friction, the less grippy of the two, relative to that one's own
// speed so a moving platform carries it, as in 2D
const friction = max(this.friction, ground.friction), v = this.velocity3D;
const moving = ground instanceof EngineObject3D ? ground.velocity3D : undefined;
const gx = moving?.x ?? 0, gz = moving?.z ?? 0;
v.x = gx + (v.x - gx) * friction, v.z = gz + (v.z - gz) * friction;
}
oldPos && render3DCollideLevel(this, oldPos, ground);
// the engine only runs this for objects that own where they are, a child rides along with its parent
if (this.collideSolidObjects && !this.sync2D)
render3DCollideSolid(this);
}
/** Move a child by its own velocities, bring a sync2D object's pos3D up to its 2D pos, then update the children,
* called automatically each frame
* @param {boolean} [updateChildren] - Also update the children's transforms */
updateTransforms(updateChildren=true)
{
if (!paused)
{
// a child is never given updatePhysics, so it moves here, as an offset from its parent: once per
// engine pass, since addChild, attach and a game bring the transforms up to date too
if (this.parent && this.movePass !== engineObjectsUpdateCount)
{
this.movePass = engineObjectsUpdateCount;
render3DMove(this);
}
}
// placed from its parent first, so a sync2D object copies where it is now, then its children from it
super.updateTransforms(false);
if (!paused && this.sync2D)
this.pos3D.x = this.pos.x, this.pos3D.y = this.pos.y, this.rotation3D.z = -this.angle;
if (updateChildren)
for (const child of this.children)
child.updateTransforms();
}
/** Set how this object collides, the same flags as in 2D
* - Solid collision happens in 3D here, against size3D boxes or spheres; a child sits it out
* - The boxes turn with rotation3D, against height maps and voxel maps an object is still its upright box
* - A sync2D object collides in 2D instead, against the 2D size, so set that as well as size3D
* @param {boolean} [collideSolidObjects] - Take part in solid collision
* @param {boolean} [isSolid] - Block other objects, a pair where neither one blocks passes through;
* blocking needs collideSolidObjects, so isSolid on its own is not allowed
* @param {boolean} [collideLevel] - Collide with the level, the height maps and voxel maps, or the 2D tile layers
* for a sync2D object
* @param {boolean} [collideRaycast] - Raycasts, 2D only; 3D has render3D.pick and engineObjectsRaycast3D */
setCollision(collideSolidObjects=true, isSolid=true, collideLevel=true, collideRaycast=false)
{ super.setCollision(collideSolidObjects, isSolid, collideLevel, collideRaycast); }
/** Called by a VoxelMap to ask whether a block stops this object, a hook to let one through or react to it
* @param {number} type - The block's type, 1 to 255
* @param {Vector3} cell - The block's cell in the map
* @return {boolean} - true to be stopped by it, every block stops it by default */
collideWithVoxel(type, cell) { return true; }
/** Returns the world position
* @return {Vector3} */
getWorldPos3D() { return render3DObjectMatrix(this).getTranslation(); }
/** Returns the direction the object faces, its -Z axis in the world
* @return {Vector3} */
getForward3D() { return render3DAxis(render3DObjectMatrix(this).m, 8).normalize(-1); }
/** Returns the object's right axis in the world
* @return {Vector3} */
getRight3D() { return render3DAxis(render3DObjectMatrix(this).m, 0).normalize(); }
/** Returns the object's up axis in the world
* @return {Vector3} */
getUp3D() { return render3DAxis(render3DObjectMatrix(this).m, 4).normalize(); }
/** Returns a copy of the object's world transform, the parent's included when attached to an EngineObject3D
* - The object keeps its matrix and rebuilds it only when its position, rotation or scale changed, so this is
* cheap to call
* @return {Matrix4} */
getMatrix() { return render3DObjectMatrix(this).copy(); }
/** Turn the object so its -Z axis points at a world space target, sets pitch and yaw and clears roll
* @param {Vector3} target */
lookAt(target)
{
// rotation3D is local to the parent, so a child has to aim at the target from the parent's point of view
const parent = this.parent instanceof EngineObject3D ? this.parent : undefined;
const local = parent ? parent.getMatrix().invert().transformPoint(target) : target;
this.rotation3D = render3DLookRotation(local.subtract(this.pos3D), this.rotation3D);
}
/** Attaches a child, its pos3D, rotation3D and scale3D taken as the offset from this one; returns child for chaining
* - The 2D offset arguments do nothing for an EngineObject3D child, set its pos3D
* @param {EngineObject} child
* @param {Vector2} [localPos]
* @param {number} [localAngle]
* @return {EngineObject} The child object attached */
addChild(child, localPos, localAngle)
{
// addChild brings the child's transform up to date, which is not a step: it already moved this pass as
// a root, or moves in the next one, so it must not move by its velocity again here
if (child instanceof EngineObject3D)
child.movePass = engineObjectsUpdateCount;
return super.addChild(child, localPos, localAngle);
}
/** Attaches a child without moving it: its pos3D, rotation3D and scale3D become what they have to be under this
* parent to keep its world transform, where addChild takes them as the offset; returns child for chaining
* - A parent scaled unevenly and a child turned under it make a shear, which those three values cannot hold,
* so the child comes out as close as they can get; a uniform scale is exact
* @param {EngineObject} child
* @return {EngineObject} The child object attached */
attach(child)
{
if (!(child instanceof EngineObject3D))
return super.attach(child); // a 2D child only has the 2D transform to keep
child.parent?.removeChild(child); // keeps its world values, so its own matrix is its world matrix
const local = render3DObjectMatrix(this).copy().invert().multiply(render3DObjectMatrix(child));
super.attach(child);
child.pos3D = local.getTranslation();
child.rotation3D = local.getRotation();
child.scale3D = local.getScale();
if (child.localMatrix)
child.localMatrix = local; // a matrix given whole stays whole, shear and all
return child;
}
/** Removes a child from this one, it stays where it is in the world: its pos3D, rotation3D and scale3D become
* its world values, with the same shear caveat as attach; a child being destroyed is let go as it is
* @param {EngineObject} child */
removeChild(child)
{
if (child instanceof EngineObject3D && !child.destroyed)
{
const world = render3DObjectMatrix(child);
child.pos3D = world.getTranslation();
child.rotation3D = world.getRotation();
child.scale3D = world.getScale();
if (child.localMatrix)
child.localMatrix = world.copy(); // a matrix given whole stays whole, shear and all
}
super.removeChild(child);
}
/** Draw a different mesh and free the GPU buffer of the one it replaces
* - For a mesh built again when something changes, like a score, a rebuilt terrain or a loaded model
* - A mesh another object is still drawing is left alone, since builders are often shared
* - Freeing one held somewhere else only costs it an upload, the points it was built from stay
* @param {Mesh} [mesh] - The mesh to draw from now on, undefined to draw nothing
* @return {Mesh|undefined} - The mesh passed in */
setMesh(mesh)
{
ASSERT(!mesh || mesh instanceof Mesh, 'mesh must be a Mesh or undefined');
const old = this.mesh;
this.mesh = mesh;
// nothing to free and nothing to look for when it was never uploaded
if (old && old !== mesh && old.buffer && !engineObjects.some(o=> /** @type {EngineObject3D} */ (o).mesh === old))
old.dispose();
return mesh;
}
/** 2D rendering is skipped, the mesh is drawn by render3D during the 3D pass */
render() {}
/** Draw the object in 3D, called by the 3D pass with the draw state set from this object's flags, draws the mesh by default
* @return {void} */
render3D()
{
// an opaque draw comes out solid however low its alpha is, so a fade with no flag looks like nothing happened
ASSERT(this.transparent || this.additive || this.color.a >= 1,
'an object that fades needs its transparent flag, an opaque draw ignores the color alpha', this.color);
// the matrix the object keeps, rebuilt only when it moved, the same one for the shadow pass and the main pass
const matrix = render3DObjectMatrix(this);
if (this.mesh)
render3D.drawMesh(this.mesh, matrix, this.tileInfo, this.color);
else if (this.tileInfo)
{
// a sprite, at the world size the collect, pick and solid collision helpers measure it at
const m = matrix.m, size = render3DWorldSize(this, m);
render3D.drawBillboard(vec3(m[12], m[13], m[14]), vec2(size.x, size.y), this.tileInfo, this.color,
this.rotation3D.z, this.upright);
}
}
}
// an object's world matrix, the one it keeps: rebuilt only when its position, rotation or scale changed since the
// last build, or its parent's matrix did, so an object that stands still costs nine compares a frame instead of
// the trig and a new matrix; the matrix returned is the object's own, read it and never change it
const render3DLocalMatrix = new Matrix4;
function render3DObjectMatrix(o)
{
const parent = o.parent instanceof EngineObject3D ? o.parent : undefined;
const parentMatrix = parent && render3DObjectMatrix(parent); // the parent first, so its version is current
const p = o.pos3D, r = o.rotation3D, s = o.scale3D, k = o.matrixBuilt, local = o.localMatrix;
if (local)
{
// a matrix given whole is taken as it is each time, it can change in place
if (parent)
{
o.worldMatrix.m.set(parentMatrix.m);
o.worldMatrix.multiply(local);
o.matrixParentVersion = parent.matrixVersion;
}
else
o.worldMatrix.m.set(local.m);
k[0] = NaN; // built from the matrix, so going back to pos3D builds again
o.matrixParent = parent;
++o.matrixVersion;
}
else if (k[0] !== p.x || k[1] !== p.y || k[2] !== p.z || k[3] !== r.x || k[4] !== r.y || k[5] !== r.z
|| k[6] !== s.x || k[7] !== s.y || k[8] !== s.z || o.matrixParent !== parent
|| parent && o.matrixParentVersion !== parent.matrixVersion)
{
k[0] = p.x, k[1] = p.y, k[2] = p.z, k[3] = r.x, k[4] = r.y, k[5] = r.z, k[6] = s.x, k[7] = s.y, k[8] = s.z;
if (parent)
{
// the parent's world matrix times the local one
buildMatrix(p, r, s, render3DLocalMatrix);
o.worldMatrix.m.set(parentMatrix.m);
o.worldMatrix.multiply(render3DLocalMatrix);
o.matrixParentVersion = parent.matrixVersion;
}
else
buildMatrix(p, r, s, o.worldMatrix);
o.matrixParent = parent;
++o.matrixVersion;
}
return o.worldMatrix;
}
// move an object by its 3D velocities, each slowed by its damping, an object with mass falling with render3D.gravity
function render3DMove(o)
{
// the vectors change in place, as the 2D object's do: this runs for every object every frame
// a sync2D object's damping is the 2D physics', its 3D velocities are its own to set
const p = o.pos3D, v = o.velocity3D, r = o.rotation3D, a = o.angleVelocity3D;
const d = o.sync2D ? 1 : o.damping, e = o.sync2D ? 1 : o.angleDamping;
// damped first and gravity added after, the order EngineObject.updatePhysics uses,
// so the same mass, damping and gravity fall the same way in both
v.x *= d, v.y *= d, v.z *= d;
if (o.mass && !o.sync2D) // a 2D driven object gets the 2D gravity instead
{
const g = render3D.gravity, s = o.gravityScale;
v.x += g.x * s, v.y += g.y * s, v.z += g.z * s;
}
p.x += v.x, p.y += v.y, p.z += v.z;
r.x += a.x *= e, r.y += a.y *= e, r.z += a.z *= e;
}
// keep an object that moved out of the level's solid geometry, clearing what it stood on for the level to set again
// ground is what it stood on last frame, which a height map keeps it on going down a slope
function render3DCollideLevel(o, oldPos, ground)
{
for (const level of render3DLevel)
level.destroyed || level.levelCollide3D(o, oldPos, level === ground);
}
// where a solid object is in the world and what it collides as: the sphere that fits size3D, or the size3D box,
// each grown by the object's scale
// only objects that own where they are take part, so pos3D is already world space, and however the object is
// turned its axes come out as long as its scale makes them; building the transform to read that back off it
// costs six trig calls and a matrix for every pair tested, which is the whole cost of a crowded scene
function render3DSolidShape(o)
{
ASSERT(!o.parent, 'a child rides along with its parent, it has no world pos3D of its own to collide with');
const s = o.size3D, k = o.scale3D;
const kx = abs(k.x), ky = abs(k.y), kz = abs(k.z);
if (o.collideAsSphere3D)
return {pos: o.pos3D.copy(), radius: max(s.x, s.y, s.z) / 2 * max(kx, ky, kz)};
// a turned box has its axes, a solid is never a child so its rotation is the world's; an upright one has none, and
// neither does a sprite, whose rotation turns how it faces the camera, not its box
const axes = !render3DIsSprite(o) && isTurned3D(o.rotation3D) ? render3DSolidAxes(o) : undefined;
return {pos: o.pos3D.copy(), size: vec3(s.x * kx, s.y * ky, s.z * kz), axes};
}
// a turned solid's three axes, worked out when its rotation changes and kept until then, so the pairs it is tested
// against each frame do not each work them out again
const render3DSolidAxesCache = new WeakMap;
function render3DSolidAxes(o)
{
const r = o.rotation3D, kept = render3DSolidAxesCache.get(o);
if (kept && kept.x === r.x && kept.y === r.y && kept.z === r.z)
return kept.axes;
const axes = boxAxes3D(r);
render3DSolidAxesCache.set(o, {x: r.x, y: r.y, z: r.z, axes});
return axes;
}
// how far a solid shape can reach from its own center, for a quick reject before the exact test
// it has to be the shape's own radius, or a wider one: a box reaches to its corner, and a sphere
// takes the largest scale the same way render3DSolidShape does, or the reject would skip real touches
function render3DSolidReach(o)
{
const s = o.size3D, k = o.scale3D;
const kx = abs(k.x), ky = abs(k.y), kz = abs(k.z);
if (o.collideAsSphere3D)
return max(s.x, s.y, s.z) / 2 * max(kx, ky, kz);
return hypot(s.x * kx, s.y * ky, s.z * kz) / 2;
}
// what it takes to move shape a clear of shape b, whichever pair of shapes they are, or undefined for no touch
function render3DSolidPush(a, b)
{
// a turned box is tested by its kept axes, the upright pairs as they always were
const sphereBox = (sphere, box)=> box.axes ? collideSphereOrientedBox3D(sphere.pos, sphere.radius, box.pos,
box.size, box.axes) : collideSphereBox(sphere.pos, sphere.radius, box.pos, box.size);
if (!a.size) // a is a sphere
return b.size ? sphereBox(a, b) : collideSphereSphere(a.pos, a.radius, b.pos, b.radius);
if (!b.size) // only b is, so push b out of a and turn it around
{
const push = sphereBox(b, a);
return push && push.scale(-1);
}
return a.axes || b.axes ? collideOrientedBoxes3D(a.pos, a.size, a.axes ?? BOX_WORLD_AXES, b.pos, b.size,
b.axes ?? BOX_WORLD_AXES) : collideBoxBox3D(a.pos, a.size, b.pos, b.size);
}
// a sprite, a tile with no mesh, which faces the camera however it is turned
const render3DIsSprite = (o)=> !o.mesh && !!o.tileInfo;
// whether a push leaves a box by one of its faces, along one of its axes, not by an edge or a corner; a sphere has
// no face to stand on
function render3DOnFace(push, shape)
{
if (!shape.size) return false;
const n = push.normalize(), axes = shape.axes ?? BOX_WORLD_AXES;
return max(abs(n.dot(axes[0])), abs(n.dot(axes[1])), abs(n.dot(axes[2]))) > 1 - 1e-6;
}
// push a solid object out of the solids before it in the engine's list of them, so each pair is resolved once:
// the ones after it update later and test against it then, and an object that is not in the list yet, because it
// turned collision on this frame, tests them all itself and is not tested back
// one pair per test is half the work of the 2D solver, which tests both directions; the difference only shows
// when a collideWithObject destroys some third object, whose own turn then finds the pair already gone
function render3DCollideSolid(a)
{
let shapeA = render3DSolidShape(a);
const reachA = render3DSolidReach(a);
for (const b of engineObjectsCollide)
{
if (b === a) break;
// a child is part of its parent
if (b.destroyed || !(b instanceof EngineObject3D) || b.parent || b.sync2D) continue;
if (!a.isSolid && !b.isSolid) continue; // neither one blocks, so they pass through each other
// the pairs nowhere near each other are almost all of them in a scene of any size, so
// settle those with one distance check instead of building a shape for each
const p = shapeA.pos, q = b.pos3D, reach = reachA + render3DSolidReach(b);
const dx = p.x - q.x, dy = p.y - q.y, dz = p.z - q.z;
if (dx*dx + dy*dy + dz*dz > reach*reach)
continue;
const shapeB = render3DSolidShape(b);
let push = render3DSolidPush(shapeA, shapeB);
if (!push) continue;
// both objects hear about it, and either one can take the touch over
const resolveA = a.collideWithObject(b, push);
const resolveB = b.collideWithObject(a, push.scale(-1));
if (!resolveA || !resolveB) continue;
// standing: resting on a box's face within the upper one's groundAngle of level holds it there, the push
// turned straight up, as far as it takes to leave the surface, so it does not creep down a ramp; only what
// moves stands, and a sphere, an edge or a corner is nothing to stand on, what rests there rolls off
const lengthSquared = push.lengthSquared(), up = push.y / lengthSquared ** .5;
const aStands = up > 0 && a.mass && up >= cos(a.groundAngle) && render3DOnFace(push, shapeB);
const bStands = up < 0 && b.mass && -up >= cos(b.groundAngle) && render3DOnFace(push, shapeA);
if (aStands || bStands)
{
aStands ? a.groundObject = b : b.groundObject = a;
if (push.x || push.z) // one straight up already is used as it is
push = vec3(0, lengthSquared / push.y, 0);
}
// heavier objects move less, mass 0 stays put; then bounce apart when moving toward each other
const total = a.mass + b.mass;
const weightA = !a.mass ? 0 : !b.mass ? 1 : b.mass / total;
const weightB = !b.mass ? 0 : !a.mass ? 1 : a.mass / total;
a.pos3D = a.pos3D.add(push.scale(weightA));
b.pos3D = b.pos3D.subtract(push.scale(weightB));
if (weightA)
shapeA = render3DSolidShape(a); // it moved, so the next solid must be tested against where it is now
// mass 0 keeps its velocity too, so a moving platform keeps moving, and what hits it bounces by its own
// restitution as it would off a static wall
const normal = push.normalize();
if (weightA && a.velocity3D.dot(normal) < 0)
a.velocity3D = a.velocity3D.reflect(normal, a.restitution);
if (weightB && b.velocity3D.dot(normal) > 0)
b.velocity3D = b.velocity3D.reflect(normal, b.restitution);
}
}
/**
* Collect the EngineObject3D objects whose boxes overlap a sphere or a box, the 3D twin of engineObjectsCollect
* - Each object is its size3D box at its world position, turned as it is turned; lights, emitters and trails have no
* size and are never collected
* @param {Vector3} pos - Center of the area
* @param {Vector3|number} size - Diameter of a sphere if a number, 0 for a point, full size of a box if a Vector3
* @param {Array<EngineObject>} [objects] - Defaults to every object
* @param {boolean} [testCenters] - Test only each object's center, a little faster, and ignores object sizes
* @return {Array<EngineObject3D>}
* @memberof Render3D
*/
function engineObjectsCollect3D(pos, size, objects=engineObjects, testCenters=false)
{
// a size of 0 is a point, tested against each box, since a sphere of no size could never hit
const radiusSquared = typeof size === 'number' && size > 0 ? (size/2)**2 : undefined;
const box = radiusSquared ? undefined : typeof size === 'number' ? vec3() : render3DSize3(size);
const collected = [];
for (const o of objects)
{
if (!(o instanceof EngineObject3D) || o.destroyed) continue;
// the box in world space, scaled by the object and its parents
const m = render3DObjectMatrix(o).m, s = o.size3D;
if (!(s.x || s.y || s.z)) continue;
const center = vec3(m[12], m[13], m[14]);
const worldSize = testCenters ? vec3() : render3DWorldSize(o, m);
// a turned box is tested as turned, its axes read off the matrix, its columns with the scale taken out
const turned = !testCenters && !render3DIsSprite(o) && (m[1] || m[2] || m[4] || m[6] || m[8] || m[9]);
const axis = (i)=> vec3(m[i], m[i+1], m[i+2]).normalize();
let axes = turned ? [axis(0), axis(4), axis(8)] : undefined;
if (axes && (abs(axes[0].dot(axes[1])) > 1e-6 || abs(axes[0].dot(axes[2])) > 1e-6 ||
abs(axes[1].dot(axes[2])) > 1e-6))
{
// a turned child of an unevenly scaled parent is sheared, its edges no longer square, which the box
// tests do not take; the upright box around it stands in, which may take a little more but never misses
const e = axes.map((a, i)=> a.scale(i ? i > 1 ? worldSize.z / 2 : worldSize.y / 2 : worldSize.x / 2));
const reach = (c)=> 2 * (abs(e[0][c]) + abs(e[1][c]) + abs(e[2][c]));
worldSize.set(reach('x'), reach('y'), reach('z'));
axes = undefined;
}
let hit;
if (box && axes)
hit = !!collideOrientedBoxes3D(pos, box, BOX_WORLD_AXES, center, worldSize, axes);
else if (box)
hit = isOverlapping3D(pos, box, center, worldSize);
else if (axes)
hit = !!collideSphereOrientedBox3D(pos, radiusSquared ** .5, center, worldSize, axes);
else
{
// a sphere against the nearest point of the box
const dx = max(abs(pos.x - center.x) - worldSize.x/2, 0);
const dy = max(abs(pos.y - center.y) - worldSize.y/2, 0);
const dz = max(abs(pos.z - center.z) - worldSize.z/2, 0);
hit = dx*dx + dy*dy + dz*dz < radiusSquared;
}
hit && collected.push(o);
}
return collected;
}
// how far along a ray an object is hit, or undefined for a miss; each one is tested as the box around its mesh in
// its own space, or a sprite as the quad it draws, not triangle by triangle
function render3DRaycastObject(ray, o)
{
if (o.destroyed || !(o instanceof EngineObject3D)) return;
// a height map or voxel map is hit on its surface, not its box
if (o instanceof HeightMap || o instanceof VoxelMap) return o.levelRaycast3D(ray);
if (!(o.mesh || o.tileInfo)) return;
if (o instanceof InstancedMesh3D) return; // its instances are not objects, and its one sphere is not a thing to hit
const matrix = render3DObjectMatrix(o), mesh = o.mesh;
if (!mesh) return render3DRaycastSprite(ray, o, matrix);
// a mesh that changed since it was measured is measured again, an upload may not have come yet
const radius = (mesh.dirty || !mesh.radius ? mesh.computeRadius() : mesh.radius) * render3DMaxStretch(matrix.m);
if (!(radius > 0)) return; // nothing to hit
const center = matrix.getTranslation();
const distance = raycastSphere(ray, center, radius);
if (distance === undefined) return;
// the sphere is a quick reject, a mesh is hit where the ray meets its box in its own space, since a wide floor's
// sphere reaches far above it; the direction is not made unit length, so the distance holds in the world;
// a mesh flattened to nothing on an axis has no inverse, it is hit as a disc like a sprite
if (!matrix.determinant()) return render3DRaycastDisc(ray, center, radius);
const inverse = matrix.copy().invert(), bounds = mesh.bounds || mesh.getBounds();
const local = new Ray3D(inverse.transformPoint(ray.origin), inverse.transformDirection(ray.direction));
const hit = raycastBox(local, bounds.min.add(bounds.max).scale(.5), bounds.max.subtract(bounds.min));
if (hit !== 0) return hit;
// it starts inside the box, like a camera on terrain or in a room, so it is hit where it leaves, and what stands
// inside comes first
let exit = Infinity;
for (const k of ['x', 'y', 'z'])
{
const d = local.direction[k];
if (d)
exit = min(exit, ((d > 0 ? bounds.max[k] : bounds.min[k]) - local.origin[k]) / d);
}
return exit === Infinity ? 0 : exit; // a ray of no length is where it starts
}
// a sprite is the quad drawBillboard draws, its size3D grown by the x and y scale as the draw does, facing the camera
// as it was last drawn; where the ray meets its plane, inside its half axes
function render3DRaycastSprite(ray, o, matrix)
{
const center = matrix.getTranslation(), worldSize = render3DWorldSize(o, matrix.m), size = vec2(worldSize.x, worldSize.y);
if (!(size.x > 0 && size.y > 0)) return; // nothing to hit
if (!ray.direction.lengthSquared()) // a ray of no length is where it starts
return render3DRaycastDisc(ray, center, hypot(size.x, size.y) / 2);
const a = render3DBillboardAxes(size, o.rotation3D.z, o.upright);
const right = vec3(a[0], a[1], a[2]), up = vec3(a[3], a[4], a[5]);
const t = raycastPlane(ray, center, right.cross(up));
if (t === undefined) return; // behind, or seen edge on
const p = ray.getPosition(t).subtract(center);
return abs(p.dot(right)) <= right.lengthSquared() && abs(p.dot(up)) <= up.lengthSquared() ? t : undefined;
}
// a mesh flattened to nothing, or a sprite for a ray of no length: a disc facing the ray at its center's depth
function render3DRaycastDisc(ray, center, radius)
{
const d = ray.direction, oc = center.subtract(ray.origin), dd = d.dot(d);
const t = dd ? oc.dot(d) / dd : 0; // its depth along the ray, in the ray's own units
return t >= 0 && oc.subtract(d.scale(t)).lengthSquared() <= radius*radius ? t : undefined;
}
/**
* Collect every EngineObject3D a ray passes through, nearest first, the 3D twin of engineObjectsRaycast
* - The ray has no end, so everything along it counts however far away it is
* - Use render3D.pick for the nearest one on its own, with the distance to it
* @param {Ray3D} ray - From render3D.screenToRay, or any ray
* @param {Array<EngineObject>} [objects] - Defaults to every object; only those with a mesh or a sprite count
* @return {Array<EngineObject3D>}
* @memberof Render3D
*/
function engineObjectsRaycast3D(ray, objects=engineObjects)
{
const hits = [];
for (const o of objects)
{
const distance = render3DRaycastObject(ray, o);
if (distance !== undefined) // only a 3D object has a distance
hits.push({o: /** @type {EngineObject3D} */ (o), distance});
}
return hits.sort((a, b)=> a.distance - b.distance).map(hit=> hit.o);
}
/**
* Call a function for each EngineObject3D whose box overlaps a sphere or a box
* - An object destroyed by an earlier callback is skipped
* @param {Vector3} pos - Center of the area
* @param {Vector3|number} size - Diameter of a sphere if a number, 0 for a point, full size of a box if a Vector3
* @param {function(EngineObject3D): void} callback
* @param {Array<EngineObject>} [objects] - Defaults to every object
* @param {boolean} [testCenters] - Test only each object's center, see engineObjectsCollect3D
* @memberof Render3D
*/
function engineObjectsCallback3D(pos, size, callback, objects=engineObjects, testCenters=false)
{
for (const o of engineObjectsCollect3D(pos, size, objects, testCenters))
o.destroyed || callback(o);
}
///////////////////////////////////////////////////////////////////////////////
/**
* InstancedMesh3D - Many copies of one mesh drawn as one call, with their transforms kept on the GPU
* - For big sets that mostly stay put: an instance costs nothing per frame until it changes, so a hundred thousand
* trees cost what one tree does; objects and drawMesh batch by themselves too, but rebuild their batch every frame
* - setMatrixAt and setColorAt change one instance, and only the changed range uploads before the next draw
* - The instances are in world space; the object's own pos3D, rotation3D and scale3D do not move them
* - The whole set is culled by one bounding sphere around the origin, and casts and receives shadows like any object
* - The object's flags cover the whole set, one emissive, one tileInfo, one shader; only the colors are per instance
* - A mirrored instance, one with a negative scale, shows its inside unless the mesh is doubleSided
* - A transparent set draws in one go in the transparent stage, its instances are not sorted against each other;
* the set sorts against other transparent draws by the object's position, so put pos3D at its middle
* - pick, the raycast and the collect helpers do not see the instances, test them yourself from instanceData
* @extends EngineObject3D
* @memberof Render3D
* @example
* const forest = new InstancedMesh3D(treeMesh, 1000);
* for (let i = 0; i < 1000; ++i)
* forest.setMatrixAt(i, buildMatrix(randomGroundPos(), vec3(0, rand(2*PI), 0)));
*/
class InstancedMesh3D extends EngineObject3D
{
/** Create a set of instances of a mesh, each at the origin in the object's color until it is set
* @param {Mesh} mesh
* @param {number} count - How many instances there is room for, all of them draw until count is lowered
* @param {TileInfo|TextureInfo} [tileInfo] - Texture for all of them
* @param {Color} [color] - The color they start with */
constructor(mesh, count, tileInfo, color=WHITE)
{
super(vec3(), mesh, tileInfo, color);
ASSERT(mesh instanceof Mesh, 'an InstancedMesh3D needs a Mesh');
ASSERT(count >= 1, 'an InstancedMesh3D needs room for at least one instance');
this.size3D = vec3(); // not a solid thing to pick or collect
/** @property {number} - How many instances draw, the first ones, up to the count it was made with */
this.count = count;
/** @property {number} - How many instances it was made with */
this.maxCount = count;
/** @property {Float32Array} - The per instance values the shader reads, 24 floats each: the matrix, the color
* and the uv rect; edit it directly and call markDirty for the instances changed */
this.instanceData = new Float32Array(count * RENDER3D_INSTANCE_FLOATS);
/** @property {number} - Radius of the sphere around the origin that holds every instance set so far, for
* culling; from the farthest instance and the largest scale, and the mesh's size when it draws */
this.radius = 0;
this.reach = 0; // the farthest any instance's position has been from the origin
this.maxScale = 0; // and the largest scale any instance has had
/** @property {number} - First instance to upload before the next draw */
this.dirtyStart = 0;
/** @property {number} - One past the last instance to upload, so nothing uploads when it is not past dirtyStart */
this.dirtyEnd = count;
this.buffer = undefined; // the GPU copy of instanceData
this.bufferGeneration = -1; // the context it was made under
this.uvTileInfo = tileInfo; // the tile the uv rects were written for
const uv = render3DGetTileUVs(tileInfo), data = this.instanceData;
for (let i = 0; i < count; ++i)
{
this.setMatrixAt(i, RENDER3D_IDENTITY);
const k = i * RENDER3D_INSTANCE_FLOATS;
data[k+16] = color.r; data[k+17] = color.g; data[k+18] = color.b; data[k+19] = color.a;
data[k+20] = uv.x; data[k+21] = uv.y; data[k+22] = uv.w; data[k+23] = uv.h;
}
}
/** Place an instance, in world space
* @param {number} i
* @param {Matrix4} matrix */
setMatrixAt(i, matrix)
{
ASSERT(i >= 0 && i < this.maxCount, 'instance index out of range');
const data = this.instanceData, k = i * RENDER3D_INSTANCE_FLOATS, m = matrix.m;
data.set(m, k);
this.markDirty(i);
}
/** The matrix of an instance
* @param {number} i
* @return {Matrix4} */
getMatrixAt(i)
{
ASSERT(i >= 0 && i < this.maxCount, 'instance index out of range');
const k = i * RENDER3D_INSTANCE_FLOATS, matrix = new Matrix4;
matrix.m.set(this.instanceData.subarray(k, k + 16));
return matrix;
}
/** Color an instance
* @param {number} i
* @param {Color} color */
setColorAt(i, color)
{
ASSERT(i >= 0 && i < this.maxCount, 'instance index out of range');
ASSERT(isColor(color), 'color must be a Color');
const data = this.instanceData, k = i * RENDER3D_INSTANCE_FLOATS;
data[k+16] = color.r; data[k+17] = color.g; data[k+18] = color.b; data[k+19] = color.a;
this.markDirty(i);
}
/** Note that an instance changed, so it uploads before the next draw and the bounds hold it; setMatrixAt and
* setColorAt call this, and so must an edit made straight to instanceData
* @param {number} i */
markDirty(i)
{
this.dirtyStart = min(this.dirtyStart, i);
this.dirtyEnd = max(this.dirtyEnd, i + 1);
// the bounds grow to hold where it is now and how big, read back from the matrix it has
const d = this.instanceData, k = i * RENDER3D_INSTANCE_FLOATS;
this.reach = max(this.reach, hypot(d[k+12], d[k+13], d[k+14]));
this.maxScale = max(this.maxScale, render3DMaxStretch(d, k));
const meshRadius = this.mesh.radius || this.mesh.computeRadius(); // measured once, the draw takes a new size up
this.radius = this.reach + meshRadius * this.maxScale;
}
/** Draws every instance as one call, uploading the ones that changed first
* @return {void} */
render3D()
{
const r = render3D, gl = glContext, mesh = this.mesh;
ASSERT(this.count >= 0 && this.count <= this.maxCount, 'count must be within the count it was made with');
if (r.transparentQueue) // sorted as one thing with the other transparent draws
return r.queueTransparent(this.getWorldPos3D(), ()=> this.render3D());
if (!mesh || !this.count || !render3DCanDraw()) return;
if (r.shadowPass && !r.lighting) return; // unlit things cast no shadow
render3DMeshUpload(mesh);
if (!mesh.bufferCount) return;
this.radius = this.reach + mesh.radius * this.maxScale; // the mesh may have grown since
if (r.frustumCulling && !render3DSphereVisible(0, 0, 0, this.radius)) return;
// the uv rect is the object's tile for every instance, rewritten when the tile changes
if (this.uvTileInfo !== this.tileInfo)
{
const uv = render3DGetTileUVs(this.tileInfo), data = this.instanceData;
for (let k = 20; k < data.length; k += RENDER3D_INSTANCE_FLOATS)
data[k] = uv.x, data[k+1] = uv.y, data[k+2] = uv.w, data[k+3] = uv.h;
this.uvTileInfo = this.tileInfo;
this.dirtyStart = 0, this.dirtyEnd = this.maxCount;
}
// the GPU copy: all of it under a fresh context, otherwise just the changed range
if (!this.buffer || this.bufferGeneration !== r.contextGeneration)
{
this.buffer = gl.createBuffer();
this.bufferGeneration = r.contextGeneration;
gl.bindBuffer(gl.ARRAY_BUFFER, this.buffer);
gl.bufferData(gl.ARRAY_BUFFER, this.instanceData, gl.DYNAMIC_DRAW);
}
else if (this.dirtyEnd > this.dirtyStart)
{
const start = this.dirtyStart * RENDER3D_INSTANCE_FLOATS, end = this.dirtyEnd * RENDER3D_INSTANCE_FLOATS;
gl.bindBuffer(gl.ARRAY_BUFFER, this.buffer);
gl.bufferSubData(gl.ARRAY_BUFFER, start * 4, this.instanceData, start, end - start);
}
this.dirtyStart = Infinity, this.dirtyEnd = 0;
// one draw under the object's state, the mesh setting the culling as drawMesh does
r.flush();
render3DFlushBeforeOverlay(); // as in drawMesh, what was drawn before goes under it
const cullBackFaces = r.cullBackFaces, tileInfo = this.tileInfo;
r.cullBackFaces = !mesh.doubleSided;
render3DDrawInstanced(mesh, this.buffer, this.count, render3DTextureOf(tileInfo), r);
r.cullBackFaces = cullBackFaces;
}
/** Destroy the set and free its GPU buffer
* @param {boolean} [immediate] */
destroy(immediate)
{
if (this.buffer && this.bufferGeneration === render3D?.contextGeneration)
glContext?.deleteBuffer(this.buffer);
this.buffer = undefined;
super.destroy(immediate);
}
}
///////////////////////////////////////////////////////////////////////////////
/**
* Light3D - A light that is an EngineObject3D, so it can move, follow a parent or be destroyed like anything else
* - A point light: it lights what is near it and fades out by its radius, DirectionalLight3D shines from far away
* - Only the sun, render3D.sunDirection, casts shadows; these light and make highlights without one
* - Only the 8 lights nearest the camera are used each frame
* - radius is where the light fades out, and it fades fast, so a small radius wants a higher intensity
* - intensity multiplies the color, above 1 for a light brighter than white
* - radius is a world distance, so scale3D does not change it
* - An alpha, an intensity or a radius of 0 switches it off, and a light that is off takes none of those slots
* - Draws nothing itself, add a glow with drawSoftDisc or a small emissive mesh if it should be seen
* @extends EngineObject3D
* @memberof Render3D
* @example
* const torch = new Light3D(vec3(0, 3, 0), 10, hsl(.1, 1, .65));
*/
class Light3D extends EngineObject3D
{
/** Create a point light
* @param {Vector3} [pos3D] - Where it is
* @param {number} [radius] - Distance where the light fades to nothing
* @param {Color} [color] - Light color, its alpha fades it
* @param {number} [intensity] - Brightness, multiplies the color, above 1 is brighter than white */
constructor(pos3D=vec3(), radius=5, color=WHITE, intensity=1)
{
super(pos3D, undefined, undefined, color);
ASSERT(radius >= 0, 'light radius cannot be negative, 0 is an off switch like an alpha of 0');
ASSERT(intensity >= 0, 'light intensity cannot be negative, 0 is an off switch');
this.size3D = vec3(); // not a solid thing to pick or collect
/** @property {number} - Distance where the light fades to nothing */
this.radius = radius;
/** @property {number} - Brightness, multiplies the color, above 1 is brighter than white */
this.intensity = intensity;
/** @property {boolean} - Shine from far away, from its position toward the origin, instead of out from its
* position with a falloff; DirectionalLight3D sets it */
this.directional = false;
/** @property {number} - Size of a soft hazy glow drawn over the light, like a lamp at night, 0 for none; it
* is added onto what is behind it, and what is in front of the light hides it */
this.glow = 0;
/** @property {number} - How fast the glow fades from its middle: 1 by default, .5 a wide haze, 2 a tight
* bright core */
this.glowFalloff = 1;
this.additive = true; // the glow is added on, in the transparent stage; a light with none draws nothing
}
/** Draw the glow, a quad facing the camera with a soft round glow on it, pulled toward the camera by half its
* size so a lamp at the light does not cut into it, but never past the camera */
render3D()
{
if (!(this.glow > 0) || this.directional) return;
const r = render3D, c = this.color, pos = render3DObjectMatrix(this).getTranslation();
const toCamera = r.camera.pos.subtract(pos), distance = toCamera.length();
const at = distance ? pos.add(toCamera.scale(min(this.glow, distance) / 2 / distance)) : pos;
const color = rgb(c.r, c.g, c.b, c.a * min(this.intensity, 1));
r.drawBillboard(at, vec2(this.glow), render3DGlow(this.glowFalloff), color);
}
}
// how strong a light's glow is at a distance from its middle, 0 there to 1 at the edge: a bell, full in the middle
// and nothing at the edge, fading faster the higher the falloff
function render3DGlowAlpha(r, falloff)
{
const k = 3.5 * falloff, edge = Math.exp(-k);
return (Math.exp(-k * r * r) - edge) / (1 - edge);
}
// the soft round glow of the lights, one texture for each falloff, rounded to a tenth so a changing falloff makes
// only a few, each made once from a canvas; undefined headless or without a canvas
const render3DGlowTextures = new Map;
function render3DGlow(falloff=1)
{
ASSERT(isNumber(falloff) && falloff > 0, 'glowFalloff must be a number above 0');
const key = max(round(falloff * 10), 1) / 10;
let texture = render3DGlowTextures.get(key);
if (texture || !glContext || typeof OffscreenCanvas == 'undefined') return texture;
const size = 64, context = createCanvasContext(size), steps = 16;
const gradient = context.createRadialGradient(size / 2, size / 2, 0, size / 2, size / 2, size / 2);
for (let i = 0; i <= steps; ++i)
gradient.addColorStop(i / steps, 'rgba(255,255,255,' + render3DGlowAlpha(i / steps, key).toFixed(4) + ')');
context.fillStyle = gradient;
context.fillRect(0, 0, size, size);
render3DGlowTextures.set(key, texture = new TextureInfo(context.canvas));
return texture;
}
///////////////////////////////////////////////////////////////////////////////
/**
* DirectionalLight3D - A Light3D that shines from far away with no falloff, like sunlight
* - It shines from its position toward the origin, like a three.js DirectionalLight: only the direction to it
* counts, so moving it or its parent swings the light around; parent it to a sun in the sky and it follows
* - It cannot sit on the origin, since that leaves no direction
* - Like every Light3D it casts no shadow, only the sun, render3D.sunDirection, does
* @extends Light3D
* @memberof Render3D
* @example
* const fill = new DirectionalLight3D(vec3(-1, 1, 1), hsl(.6, .5, .3)); // from the back left and above
*/
class DirectionalLight3D extends Light3D
{
/** Create a directional light
* @param {Vector3} [pos3D] - Where it shines from, toward the origin
* @param {Color} [color] - Light color, its alpha fades it
* @param {number} [intensity] - Brightness, multiplies the color, above 1 is brighter than white */
constructor(pos3D=vec3(0, 1, 0), color=WHITE, intensity=1)
{
super(pos3D, 0, color, intensity);
this.directional = true;
}
}
